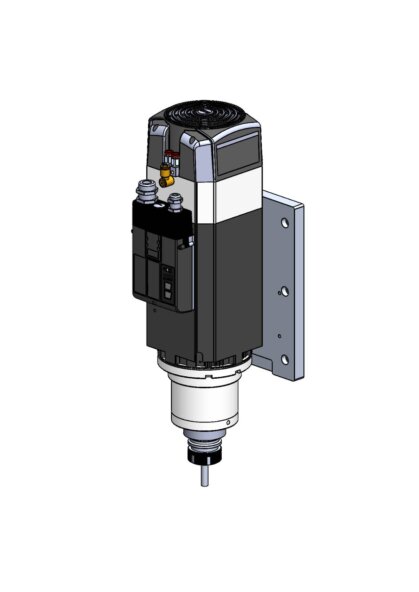

Professional Routing Spindle – HSK F63 Precision with Encoder Monitoring

This high-performance routing spindle from COMAGRAV’s aluminium/plastics line delivers precision cutting for demanding substrates. Featuring HSK F63 pneumatic clamping, ceramic bearings, and integrated encoder monitoring, it enables efficient routing across a wide range of rigid and composite materials.

Specifications

• Power: 8 kW (S1) / 9.6 kW (S6)
• Max Speed: 24,000 RPM, stepless via frequency converter
• Tool Interface: HSK F63 holders, compatible with ER32 collets (8 holders included)
• Features: Encoder and front bearing temperature monitoring
• Magazine: Linear rack for 8 tools, includes keys and collets
• Cooling: Electric fan
• Air Requirement: Requires dry, clean compressed air

Ideal for Cutting
Acrylic glass – PMMA, Alucobond, Aluminium, Brass, Foam, Foamed PVC – Forex/Foamex/Simocel/Komacel, PET – Polyethyleneterephthalate, Phenolic resin, PIR, Plastic, Polycarbonate, Polyetherketone fibers – PEEK, Polyethylene – PE, Polyoxymethylene – POM, Polypropylene – PP, Polystyrene, PVC, Silon – Polyamide fiber, Stainless steel, Steel, Teflon – Polytetrafluoroethylene – PTFE, Wood and MDF

Applications
Precision routing, profiling, and trimming across engineering plastics, aluminum composites, industrial foams, and specialty boards.
