Made to Order Configurations

Made-to-order machines offer a cost-effective solution with a low cost of entry because they are customized to meet specific needs and requirements. This eliminates the need for investing in pre-built machines that may come with unnecessary features and higher costs. By tailoring the machine to exact specifications, businesses can avoid overspending on capabilities that aren't required for their operations. Additionally, made-to-order machines can be designed to be more efficient and optimized for particular tasks, reducing operational costs and enhancing productivity. This approach also allows for scalability, enabling businesses to start with a basic setup and expand or upgrade as needed, thus managing expenses more effectively.

  • Budget Friendly

  • Made to order

  • Tailored to your Business

  • Static & Conveyor Options

  • Add Tools as you Grow

Review Sizes, Market Segments, Tooling options & extras to get a better idea of what you might be looking for.

Fill out the survey to start the conversation with a baseline of what you are looking for.

Click to see Blades & Bits Store Page

Complete Cutting Tools

Apex Series cutting systems have a complete set of cutting tools for:

  • Acrylic
  • Corrugated board
  • Fabric/Textiles
  • Foam
  • Paper
  • PVC
  • Vinyl
  • and more

Router Options

1.8Kw Liquid Cooled Spindle with 6mm Collet

*(Requires a dedicated Head Module but can be detached.)

For the Apex Plus and M Series

450w Sycotec Spindle with 3.175mm Collet

*(Fits into all standard UTC Head modules)

Compatible with all models.

  • Standard Tooling
  • Specialty tooling
  • Options
  • Configurations
Knife & Creasing Cutting Tools

UTC Universal Cutting Tool Holder

EOT1 Electric Oscillating Tool

EOT4 Electric Oscillating Tool

POT Pneumatic Oscillating Tool

KCT Kiss Cut Tool ver 1

Static 45 Degree V Cut Tool

Multi-Angle V Cut Tool

PRT Powered Rotary Tool

SPRT Super Rotary Tool

18mm Crease Wheel

PTK Perforation Tool

UPCT High Speed Coro Tool

UDT Universal Drawing Tool

Specialty Modules

Automatic Label Applicator Head Module


UCT Braille Tool

PPT Punch and Notch Tool ver 4

PPT Punch and Notch Tool ver 2

Laser Cutting Module Fabric Cauterization

Variable Data inkjet Head Module

Extra Head Modules

Independently servo driven, each head module can hold any of the interchangeable UCT tools. Up to 3 can be fitted to each Apex Plus System.

Optical Auto Tool Calibration

The automatic knife initialization tool uses an infrared sensor to control cutting depth accuracy and streamline the tool measuring process.

CCD Camera Registration System

The high precision CCD registration camera can account for multiple types of printer distortion.


Apex Plus, Pro & Edge Extra Pumps

Each 3ph 220v pump runs at 60amps. These standard 7.5kw (10hp) pumps provide significant hold down power for a variety of materials. Depending on the application, multiple can be plumbed in for use on the most challenging porous materials. Single phase 220v options are also available on Made to Order equipment.


Apex M Series Extra Pumps

Each 3ph 380v pump runs at 60amps. These standard 15kw (20hp) pumps provide significant hold down power for a variety of materials. Depending on the application, multiple can be plumbed in for use on the most challenging porous materials. 3 phase 220V transformers are available to go with the machine.


Auto Router Tool Calibration

The Automatic Tool Changer is available for the 1.8kw Spindle. It is available for 9 positions on the Apex Plus Series and 7 positions on the Apex M Series.



extension tables

Automate your Roll Processing Sticker and Decal workflows with an extension table. As the machine automatically advances and continues to cut, the table extension can be used for stripping, picking, collating and packing.

tandem Gantry

Reduce turnaround times for jobs of any size.

Each gantry can be fitted with up to 3 cutting tools for the right combination of processes for any job.

Further automation can be achieved by adding a sheet feeder.

Feed and stack

There are various suction cup styles to match your materials as well as specialty grippers to handle porous materials like Acoustic Architectural Panels.

Sheet Feeders

Enhance your workflow on large run printed rigid sheets. The integrated scissor lift table and automated feed system keeps the machine running while your operations team can take the cut pieces to the next process.

Scanning Systems

Optimize your Textile & Apparel workflows with seamless compensation automation. The Vision Cut Scanning Systems can be easily added to existing models. The unwind module features an anti-wrinkle profiled roller.

Conveyor Systems

The automated conveyor system streamlines the feeding, cutting and collection workflow. Its continuous cutting function can process oversize pieces therefore saving labor cost and increasing productivity.


Projection Systems

Streamline your process for Industrial Products and Components. Order management is optimized with the automated projection of the material to be nested/processed in the software.

Cut: This one or two gantry system increases productivity of the cutting process.

The Apex Plus is a modular platform that can also be custom configured & tailored to your exact needs. With the Apex Plus there is no need to worry about entryway restrictions. The modular components allow for the series to be assembled on-site, eliminating the need to tear down walls, open windows or hire rigging crews.

These are just a few facts about why the Apex Plus is the ideal equipment for your applications. With the extensive Apex Series tooling catalogue, the Apex is a reliable machine for markets which include printed graphics, gaskets, leather, textiles, fabrics, prototyping, architectural acoustics and much more.

Apex plus 2516

63" x 98” Cutting Area

Apex plus 3516

63" x 138” Cutting Area

Apex plus 2521

83" x 98” Cutting Area

Apex plus 2532

98" x 126” Cutting Area

Apex plus 3521

83" x 138" Cutting Area

Apex plus 3532

126" x 138” Cutting Area

Apex plus 5516

63" x 217” Cutting Area

Apex plus 5521

83" x 217” Cutting Area

Apex plus 5532

126" x 217” Cutting Area

Apex plus Custom
Description

  • Versatility meets Performance
  • Rack and Pinion Axis Drives
  • 10HP Vacuum Pump
  • Multiple Table Size Solutions
  • Static Table Top Configuration Option
  • Conveyor Belt Configuration Option
  • True 3 tool positions
  • Tool Head Modules controlled independently
  • Variable Vacuum Zone control
  • Offering both static and conveyor table solutions
  • Modular build on-site for unique installs
  • Service, Support, Parts & Supplies provided by and in stock at CUTWORX USA, Irving Texas.

The Apex Pro is a prebuilt steel welded frame platform. This unibody model is designed businesses in need of precise and efficient cutting solutions. The Apex Pro is a high-speed production model for smaller working environments with its sub 70dBA rating. Additionally, the Apex Pro's robust construction and reliable components contribute to its durability and long-term value, making it a cost-effective investment for businesses

Apex pro 1312

43" x 51” Cutting Area

Apex pro 1516

63" x 59” Cutting Area

Apex pro 2516

63" x 98” Cutting Area

Description

  • Bringing Precision to the Office Space
  • High-Speed Transmission Belt Drive
  • 10HP Vacuum Pump
  • Conveyor Belt Configuration
  • 2 Tool Head Positions
  • Variable Vacuum Zone control
  • Welded Steel Frame construction
  • Service, Support, Parts & Supplies provided by and in stock at CUTWORX USA, Irving Texas.

The Apex M Series from Cutworx USA offers several benefits for businesses seeking advanced cutting solutions. It features new magnetic drive technology, which enhances precision, speed, and overall performance by replacing traditional traverse systems. The "Zero Contact" transmission system reduces mechanical wear and tear, optimizing acceleration factors. The robust frame, constructed from high-quality carbon structural steel, ensures durability and reliability. Additionally, the Apex M Series provides true three-tool interchangeable positions, optical auto tool height calibration, and automatic router bit tool changing options. These features make it ideal for various applications, including graphics, signage, packaging, and specialty markets.

Apex M 2516

63" x 98” Cutting Area

Apex pro 3532

126" x 138” Cutting Area

Description

  • Next Generation Magnetic Platform
  • Magnetic Axis Drives
  • 15HP Vacuum Pump
  • Conveyor Belt Configuration
  • 3 Tool Head Positions
  • Tool Head Modules controlled independently
  • Variable Vacuum Zone control
  • Steel Welded Frame Construction
  • Service, Support, Parts & Supplies provided by and in stock at CUTWORX USA, Irving Texas.

The Apex Edge Series from Cutworx USA is a Dealer Exclusive platform for businesses seeking advanced cutting solutions at a lower TCO.

Apex Edge 2516

63" x 98” Cutting Area

Description

  • Dealer Exclusive (ask your local rep)
  • Transmission Belt Drive
  • 10HP Vacuum Pump
  • Conveyor Belt Configuration
  • 2 tool positions
  • Tool Head Modules controlled independently
  • Variable Vacuum Zone control
  • Steel Frame construction
  • Service, Support, Parts & Supplies provided by and in stock at CUTWORX USA, Irving Texas.

Maximize your ROI for specialized applications or dedicated operations. The Original Apex Series Flatbed Cutter is designed for a variety of processing and finishing production needs. The Apex Digital Flatbed Cutting Systems are specifically engineered to cater to the diverse processing and finishing needs of professionals in PSP, packaging, sign & graphics, POP/POS display, and textile markets. Boost your productivity and profitability by integrating a versatile, multi-function digital cutting solution directly into your workflow. The Apex Series is more than just a cutting system, it's a powerful asset that propels your business to new heights.

Apex 1713

51”x 66” Cutting Area

Apex 2513

51” x 98” Cutting Area

Apex 2517

66” x 98” Cutting Area

Description

  • Budget Friendly Productivity
  • Transmission Belt Drive
  • 10HP Vacuum Pump
  • Static Table Top Configuration Option
  • Conveyor Belt Configuration Option
  • 3 tool positions
  • Variable Vacuum Zone control
  • Steel Frame construction
  • Service, Support, Parts & Supplies provided by and in stock at CUTWORX USA, Irving Texas.

What Markets Can Benefit From Having A Flatbed Cutting Solution In-House?

Click to go to the Applications Showcase

  • Acoustic Panel products
  • Signage
  • Packaging Prototyping
  • Labels
  • Banners
  • POP Displays
  • Sticker and Decal Production
  • Textile Cutting
  • Paper Crafts
  • Gasket Cutting


Equipment Your Way, For Less

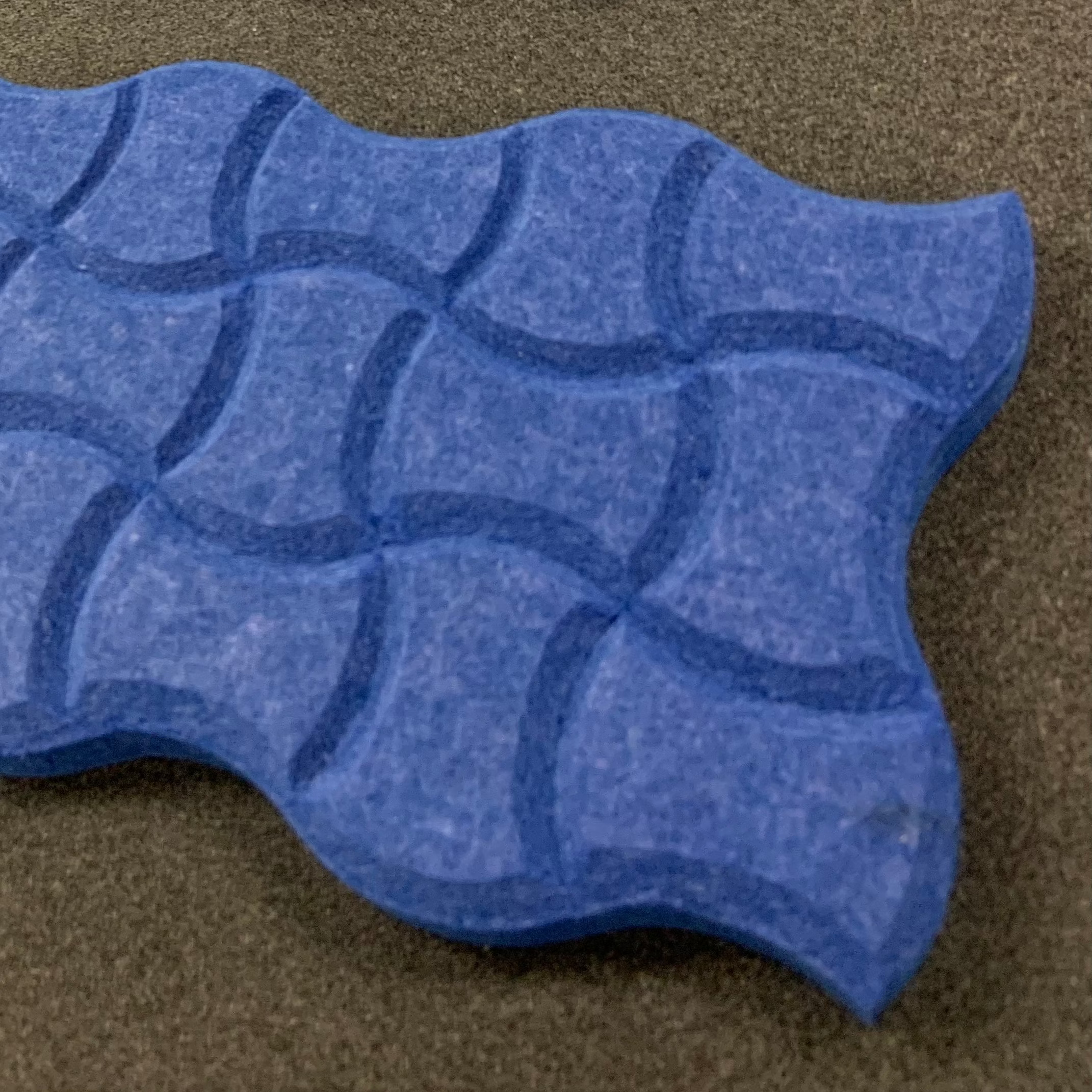

Example: Need a 5'x8' cutting area and two cutting heads for cutting PET Acoustic Panels.

Best Seller

$99,995

Fully Loaded

  • 1 Year Parts & Labor Warranty

    In Stock

Best value

$65,000

  • Conveyor Style for Roll Feeding and use with an optional material Handling device

Optional Model

$42,000

APEX PLUS 2516 FLATBED CUTTER 63" x 98" CUTTING AREA

One Universal Head Module

Automatic Knife Initialization Modules

Universal Cutting Tool (E46 Holder)

Electric Oscillating Tool

V-CUT Tool

Cutworx USA products can be a strategic advantage for your business, allowing you to grow and navigate the marketplace with greater resilience, even during economic downturns. Our team focuses on solutions instead of "moving boxes". By offering value that aligns with your creativity & expectations, you can differentiate yourself from competitors.
