From Dieline to Display – EngView + CUTWORX USA Workflow

Traditional box and display design is time-consuming and often requires redrawing from scratch when dimensions or structural elements change.

 Here's how EngView eliminates that bottleneck:

  • Parametric Design Engine: You don’t just draw a box—you define its logic. Want to change a 3-bay display to 4 bays? Just adjust the parameter. EngView recalculates the geometry and resizes the entire structure instantly.
  • Material-Aware Modeling: Select your board type and thickness up front. The software adjusts folds, creases, and tolerances accordingly—no guesswork.
  • Artwork Integration: Apply your graphics directly in Adobe Illustrator® on the dieline. Then preview it in 3D, rendered on the actual structure.

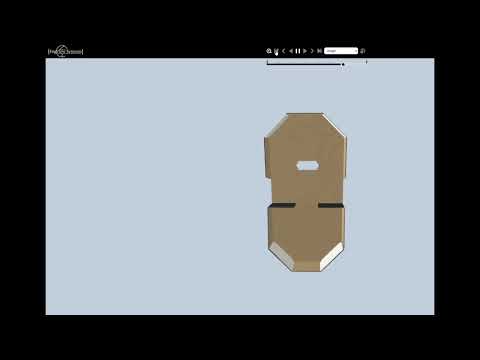

  • Live 3D Visualization: See how your design folds, fits, and functions before you cut a single sheet. Perfect for client approvals and prototyping.
  • Production-Ready Outputs: Export directly to CUTWORX USA cutting systems like the Apex & Eclipse Series platforms.

EngView isn’t just a design tool—it’s a smart structural engine that bridges creativity and production. Want to see it in action with your own dielines or display concept? I can help you script a demo workflow or prep a sample file.

Alt image
Alt image

Smarter Structural Design Starts Here:

  • Parametric CAD/CAM software for folding cartons, corrugated boxes, and POP/POS displays
  • Extensive library of resizable templates
  • Adobe Illustrator® integration for artwork alignment
  • Real-time 3D visualization and mockups
  • Step-and-repeat layout automation for dielines
