Next-Generation Digital Finishing System
Precision engineering meets production speed
Maximize throughput and ROI with industry-leading reliability
2000 mm/s
Speed
2g+
Acceleration
<65 dB
Noise
3 Tool Heads
Capability

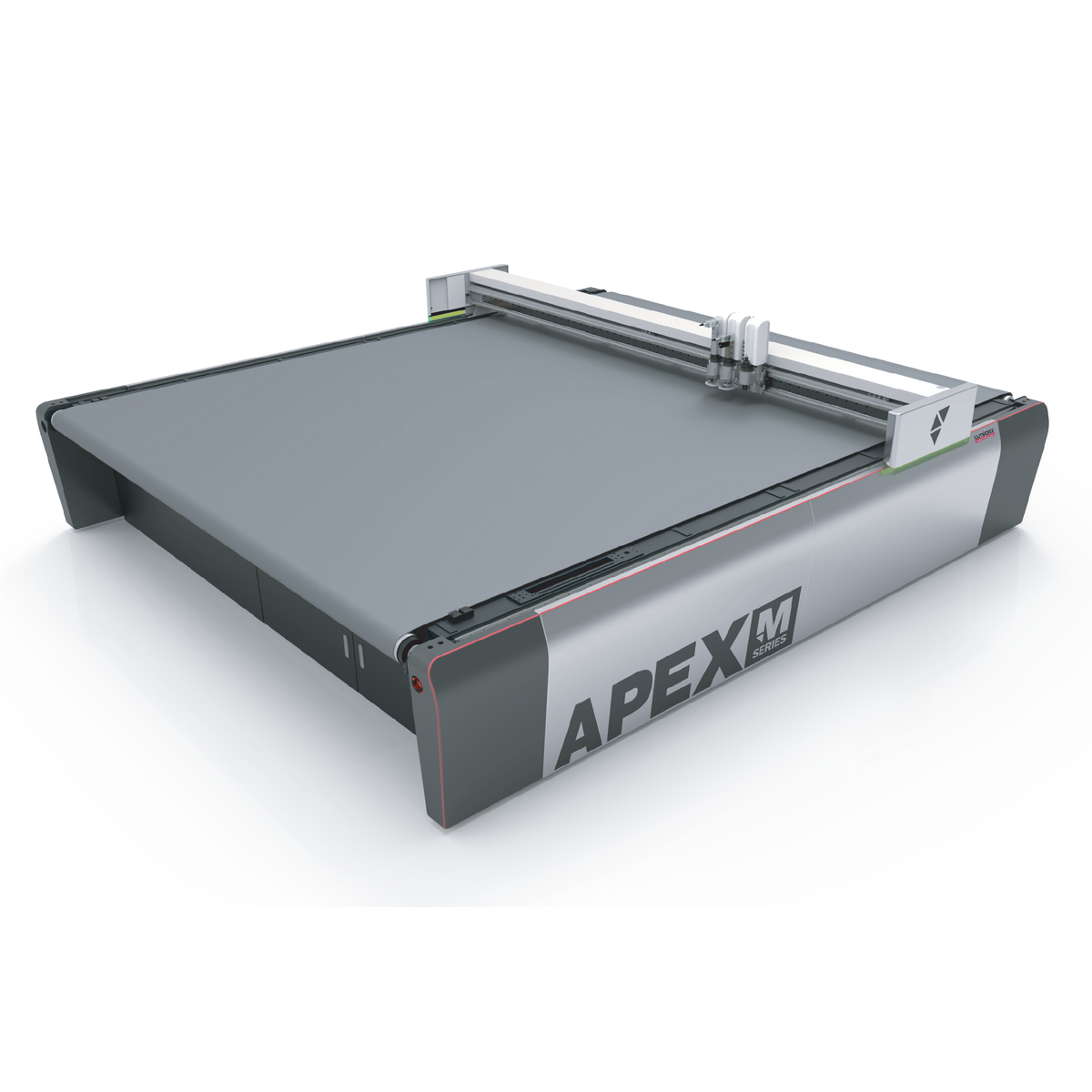

The Apex M Series redefines what a digital flatbed cutter can achieve. By replacing traditional rack-and-pinion and belt-drive traverse systems with a frictionless Magnetic Linear Drive, CutworxUSA has engineered a machine that delivers unparalleled speed, precision, and reliability at a competitive price point.
| Model | Cutting Area | Approx. Table Size | Deployment | Best For |
|---|---|---|---|---|
| Apex M 2516 | 98" × 63" | 5' × 8' | Prebuilt — Ships Ready | Mid-volume shops, quick deployment |
| Apex M 3516 | 137" × 63" | 5' × 10' | On-Site Assembly — No Rigging | Large-format, restricted-access facilities |
| Apex M 3532 | 137" × 125" | Custom Sizes Available | Contact for details | High-volume, wide-format production |
Watch the Apex M Series perform across its full range of capabilities — from automated tool changing and safety systems to roll-feed workflows and router applications.
Explore the versatility of Universal Cutting Tools on the Apex Series, delivering precision, speed, and consistent results across a wide range of materials and applications.
See how the Apex M Series 7-position router bit system streamlines production by reducing manual intervention, improving efficiency, and ensuring consistent cutting performance.
Discover advanced safety systems and integrated sensors designed to protect operators, enhance workflow reliability, and maintain precision during high-speed cutting operations.
Watch the automated roll feeding workflow in action, enabling continuous production, reduced labor, and improved material handling for high-volume cutting environments.
Learn how Automatic Knife Initialization ensures optimal blade setup, reducing downtime, improving accuracy, and maintaining consistent performance across every job.
Experience the full Apex Plus 9-position router bit changing process, designed for speed and accuracy, minimizing downtime while maximizing productivity in demanding cutting applications.
Unleash creative potential with Apex Series router systems, enabling intricate designs, complex shapes, and high-quality finishes across diverse materials and industries.

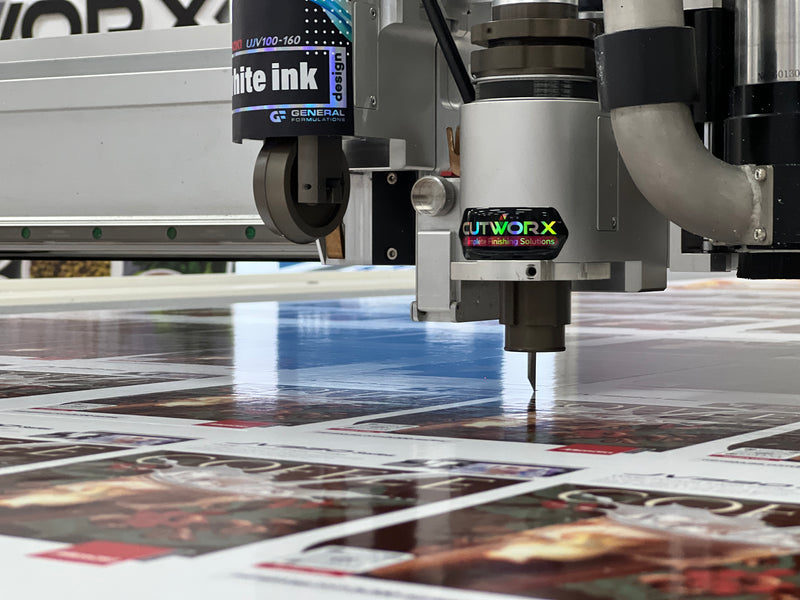

Explore flatbed knife cutting solutions built for precision and versatility, delivering clean cuts, efficient workflows, and reliable performance across flexible materials.
The Apex M Series serves a wide range of industries and applications, making it one of the most versatile digital finishing systems available today.

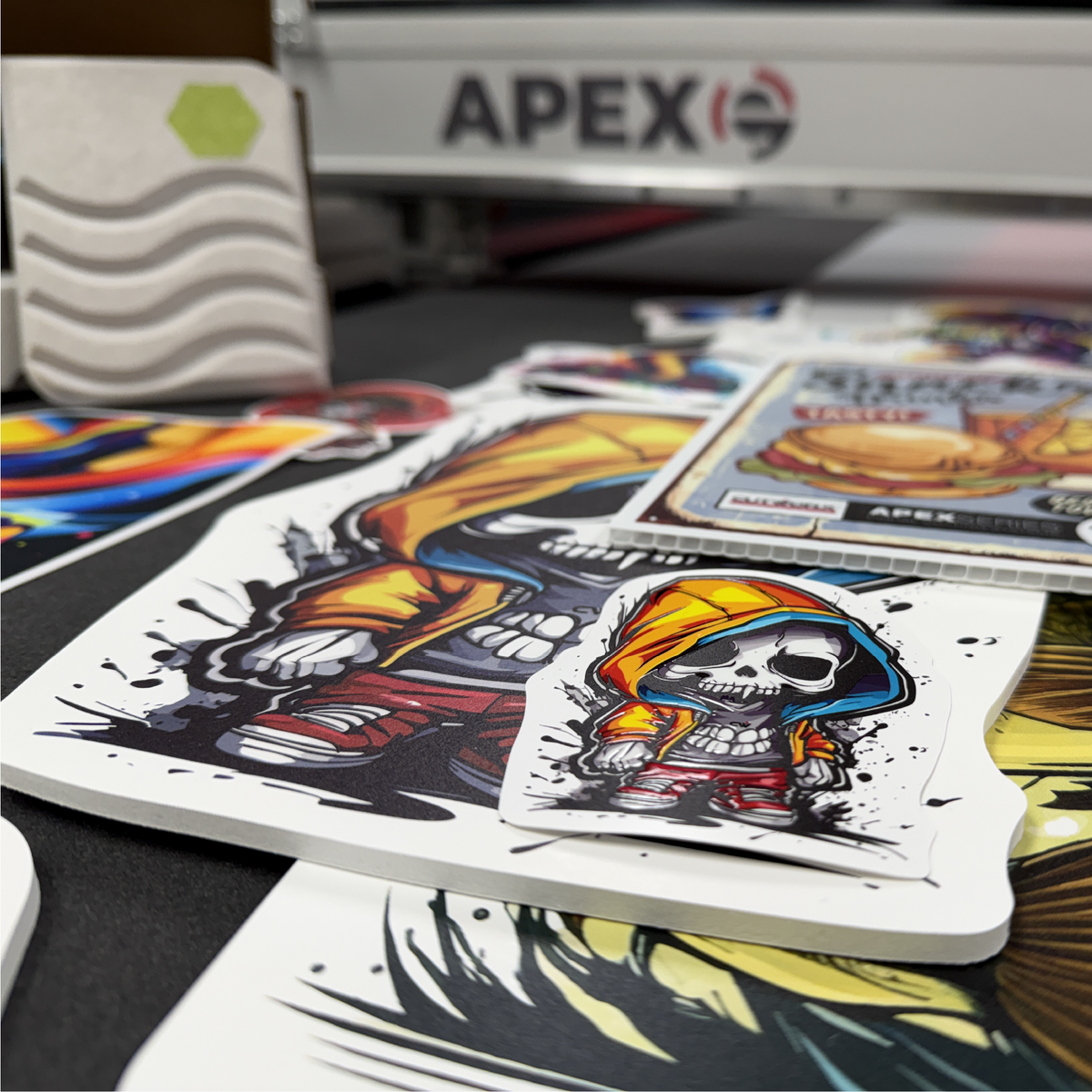

Precision kiss-cutting of sticker sheets, vinyl decals, and label rolls at high speed. The Apex M's magnetic drive ensures consistent cut depth across every sheet.

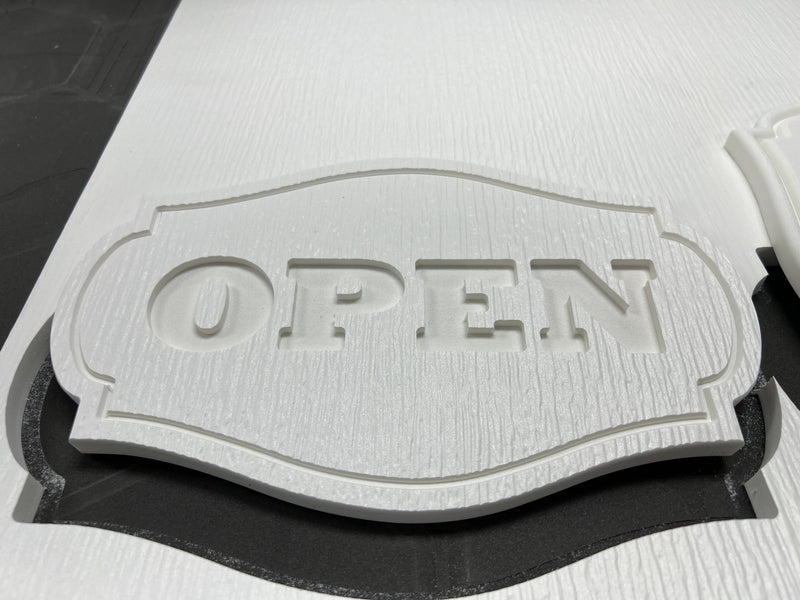

Route, cut, and finish rigid and flexible signage substrates including foam board, PVC/Sintra, ACM, and corrugated materials for trade show displays and retail graphics.

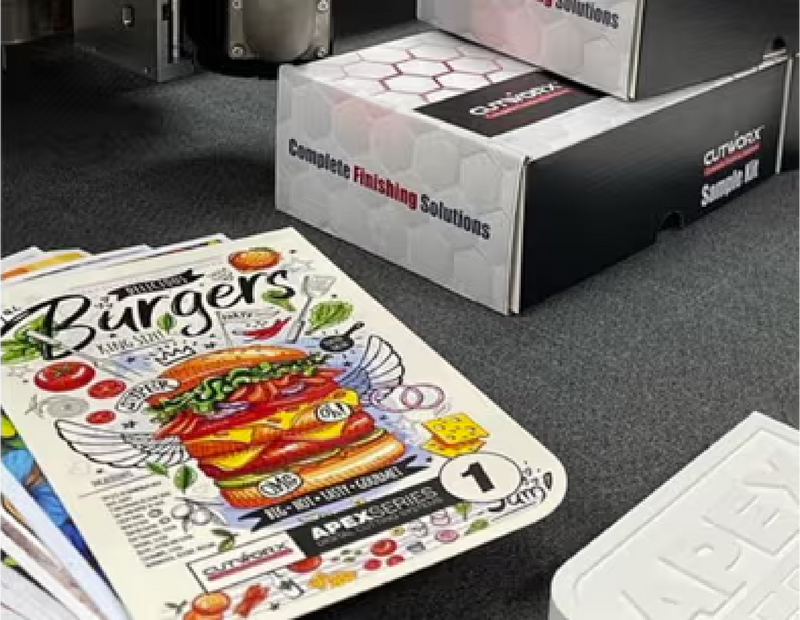

Cut, crease, and score packaging prototypes and short-run production boxes from corrugated board, card stock, and foam with the precision required for structural integrity.
Process technical textiles, fabric banners, soft signage, and upholstery templates with pneumatic rotary tool modules for clean, fray-free cuts.

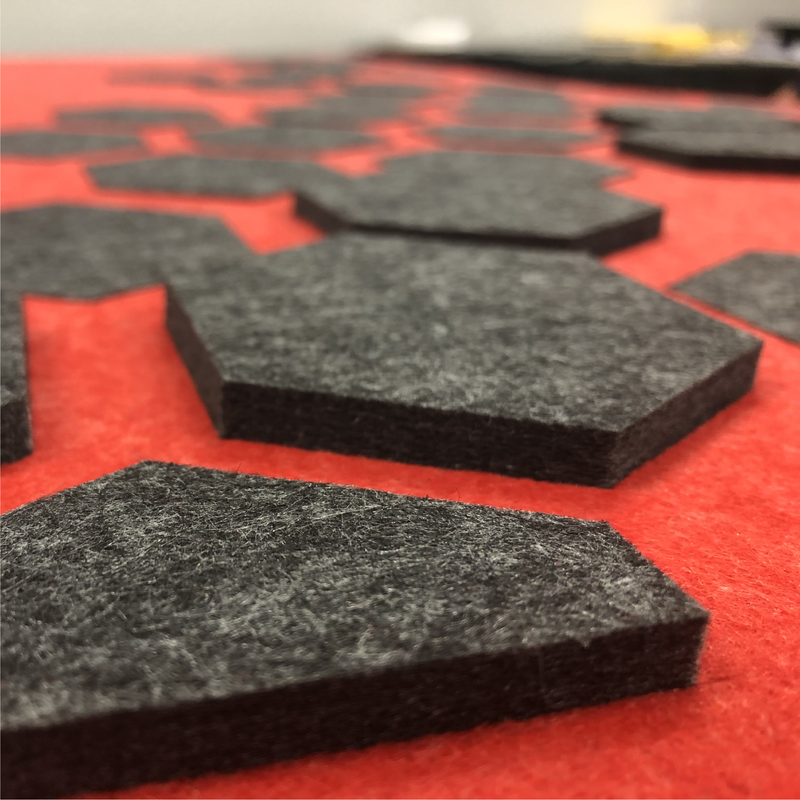

Cut and shape PET acoustic panels and foam-based sound dampening products with precision oscillating tools, enabling custom shapes and sizes for architectural applications.

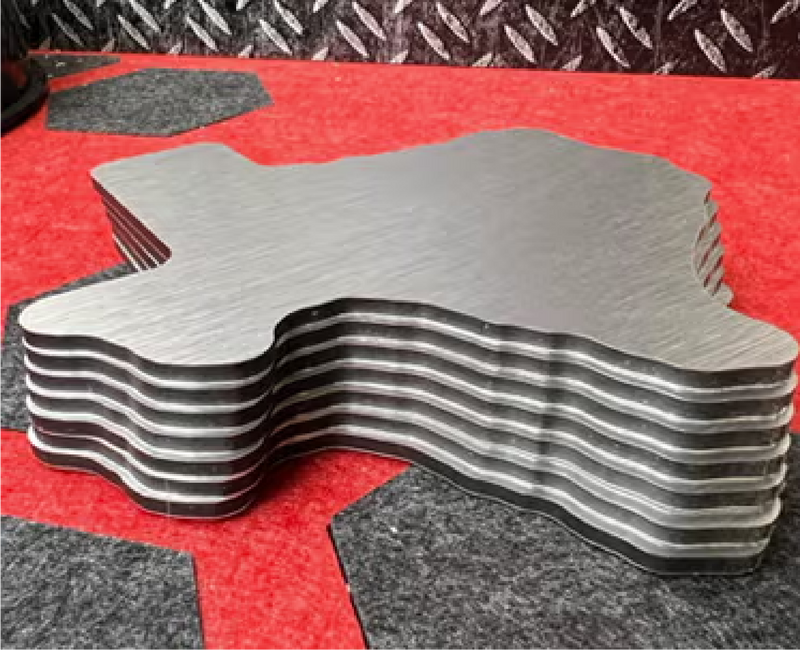

Route aluminum composite material (ACM) panels for architectural signage, building cladding, and channel letter fabrication using the high-speed liquid-cooled spindle.

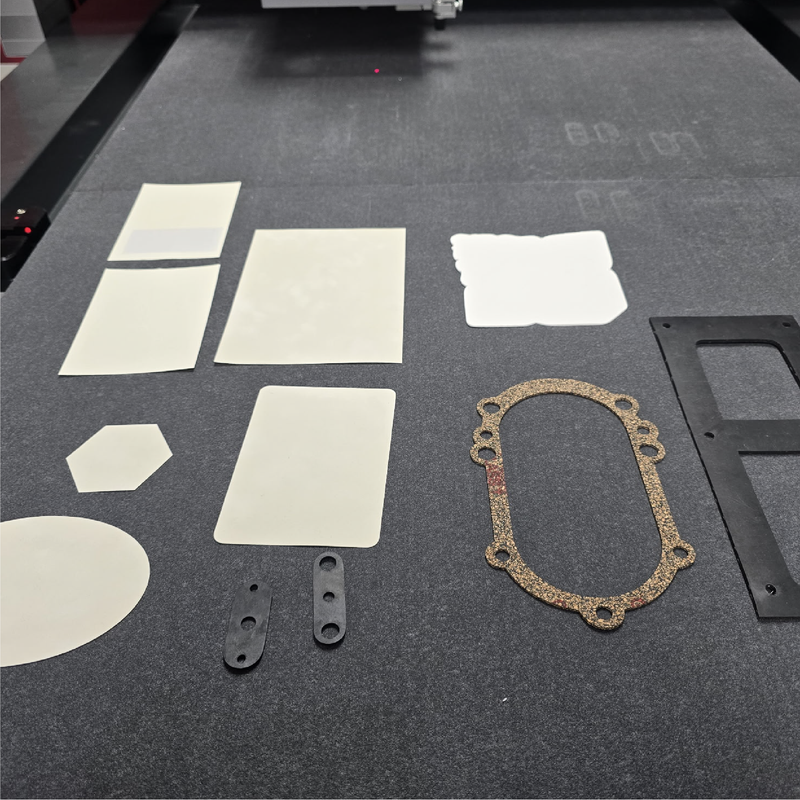

Cut gaskets, rubber seals, and industrial materials with pneumatic oscillating tools for precise, clean edges in manufacturing and fabrication environments.

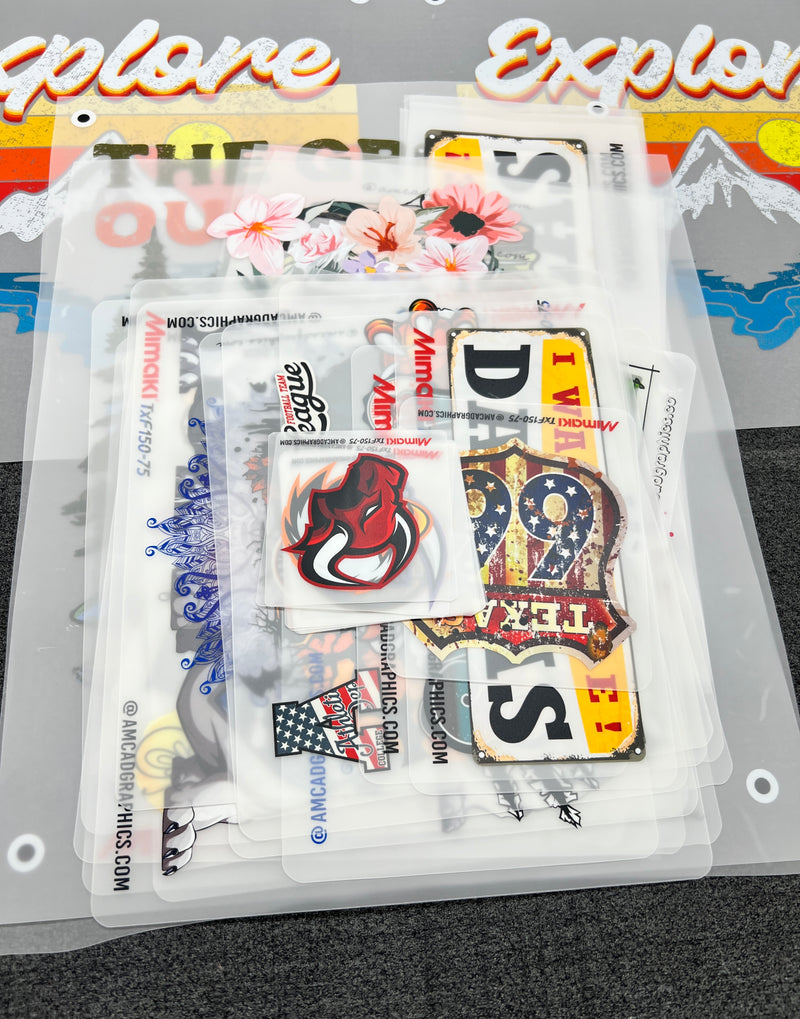

Finish DTF prints, heat transfer films, and printed graphics with precision kiss-cutting and contour cutting for apparel decoration and promotional product applications.
Detailed specifications for the Apex M Series digital flatbed cutting system. Contact CutworxUSA for model-specific configuration options.
| Drive System | Magnetic Linear Drive (Zero Contact) |
| Max Traverse Speed | 2000 mm/s (≈78.7 in/s) |
| Linear Acceleration | 2g+ |
| Noise Level | Under 65 dB |
| Tool Head Positions | Up to 3 Active Modules |
| Tool Calibration | Optical AKI (Infrared Sensor) |
| Registration | CCD Camera (Fiducials/Regmarks) |
| Spindle Type | 1.8kW Liquid Cooled, Pneumatic Chuck |
| Spindle RPM | Up to 60,000 RPM |
| Collet Size | 6mm |
| ATC Magazine Positions | 7 Positions |
| Max Cutting Thickness | Up to 50 mm |
| Vacuum System | Variable Zone Control (Software-Managed) |
| Vacuum Power | 15kW (20hp) |
| Table Surface | Precision Machined Aluminum |
| Apex M 2516 | 98" × 63" (approx. 5' × 8') |
| Apex M 3516 | 137" × 63" (approx. 5' × 10') |
| Apex M 3532 | 137" × 125" (wide format) |
| Material Category | Specific Materials |
|---|---|
| Vinyl & Films | PSA Vinyl, Reflective Vinyl, PET Film, Heat Transfer Film (DTF) |
| Rigid Boards | Foam Board, Gator Foam, Poster Board, KT Board, MDF |
| Plastics | Acrylics, Plexi, Lexan, PVC/Sintra, Styrene |
| Corrugated | Paper Corrugated, Plastic Corrugated, Honeycomb Board |
| Metals | Aluminum Composite Material (ACM) |
| Textiles & Fabric | Technical Textiles, Fabric, Soft Signage, Banner Stock |
| Papers & Stocks | Papers, Card Stocks, Packaging Board |
| Specialty | Acoustic Panels (PET), Rubber, Gasket Materials |
Achieve cutting speeds up to 2000 mm/s with 2g+ acceleration. Reduce job turnaround time and increase daily output without sacrificing precision.
Magnetic drive eliminates belt slippage and mechanical drift. Deliver consistent, repeatable cuts across thousands of jobs with zero recalibration.
Operating under 65 dB, the APEX M Series runs quieter than traditional CNC cutters. Improve workplace comfort and reduce noise pollution in production facilities.
< 65 dBFewer moving parts mean reduced maintenance, longer uptime, and lower operating costs. Magnetic drive technology extends machine lifespan and maximizes ROI.
The APEX M Series magnetic drive flatbed cutter represents a fundamental shift in CNC cutting table technology. Unlike traditional belt-driven systems, magnetic linear motors eliminate mechanical friction and wear, delivering superior performance across all production metrics.
For businesses running high-volume operations, the digital flatbed cutter with magnetic drive technology offers measurable advantages: faster job completion, reduced material waste, lower maintenance costs, and consistent output quality. Whether you're cutting signage, packaging prototypes, or technical textiles, the APEX M Series delivers the speed and precision modern production demands.
Investing in a CNC cutting table with magnetic drive technology means investing in long-term reliability, operational efficiency, and competitive advantage. Contact us today to see how the APEX M Series can transform your production workflow.
“When I saw the demo of the APEX and saw what it could do with the speeds, I think the speeds is really what got me… we want to be able to do high output, high volume work.”
“The Apex M—with its speed, versatility, and the power of the milling - is just why we went that direction. For what you're getting for such a giant machine, the cost is unbeatable.”
Industry veterans with deep expertise in print production, finishing automation, and creative workflow design.

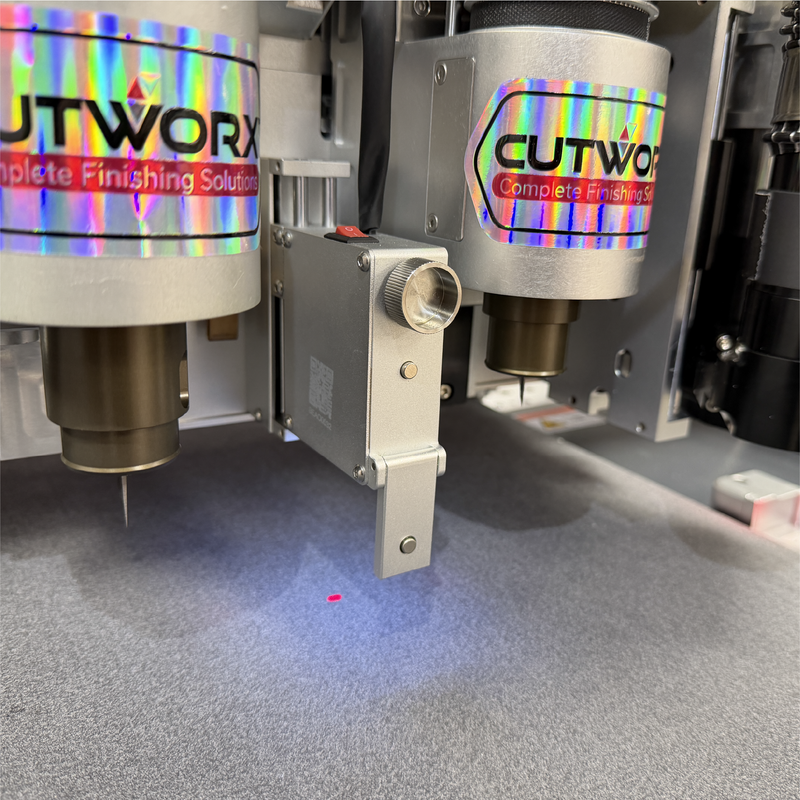

Optical CCD camera detects registration marks, regmarks, and fiducials for precise contour cutting of printed graphics — critical for sticker, decal, and label production.

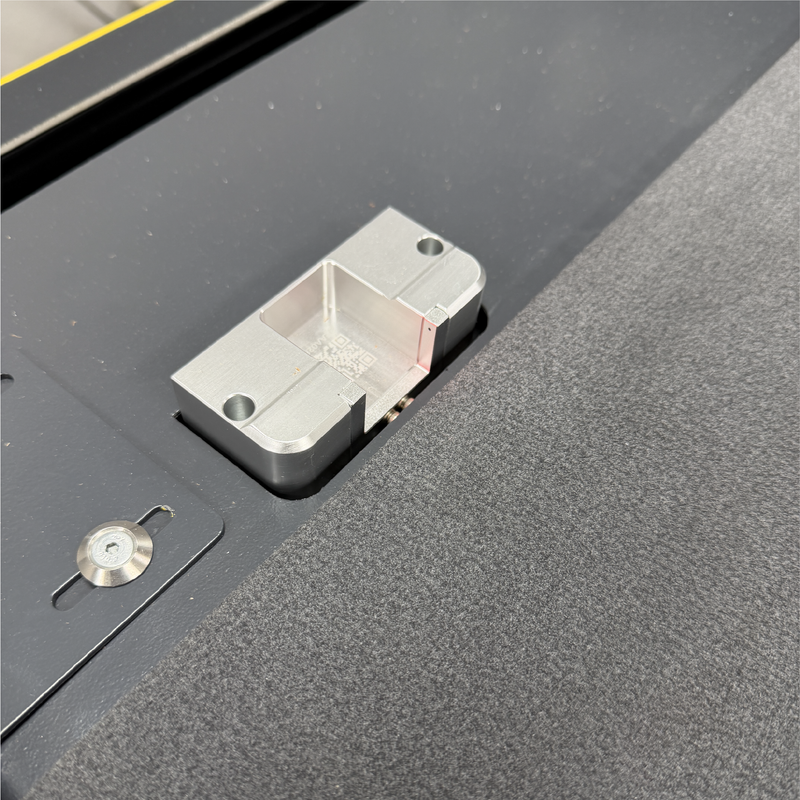

Automatic Knife Initialization (AKI) streamlines blade and router bit tool measuring, reducing setup time and ensuring precise depth control on every job without manual calibration.

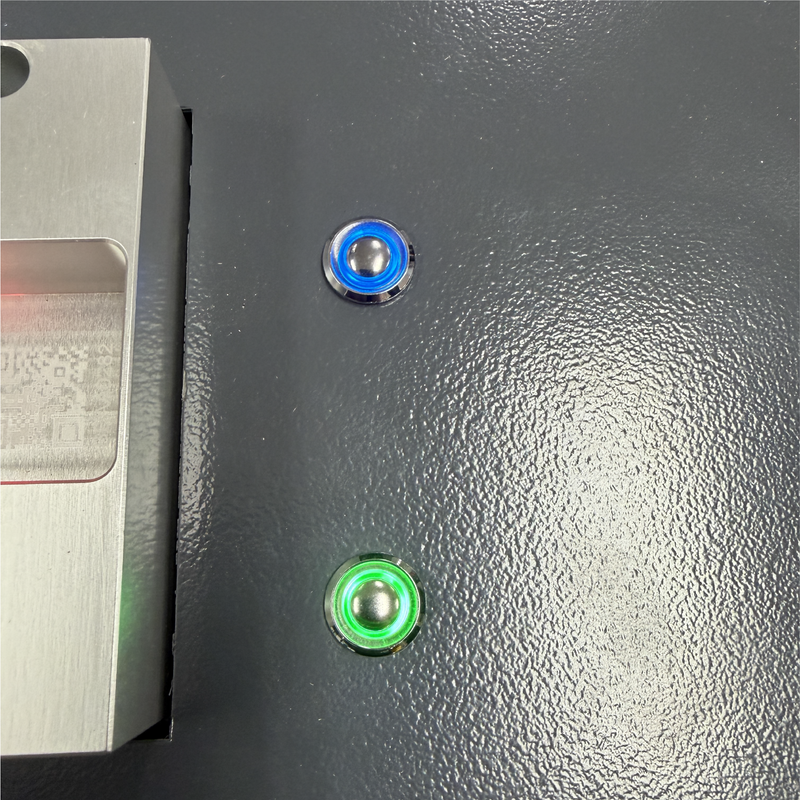

Integrated spindle chuck and router brush height measurement system on Apex M Series flatbed cutter.

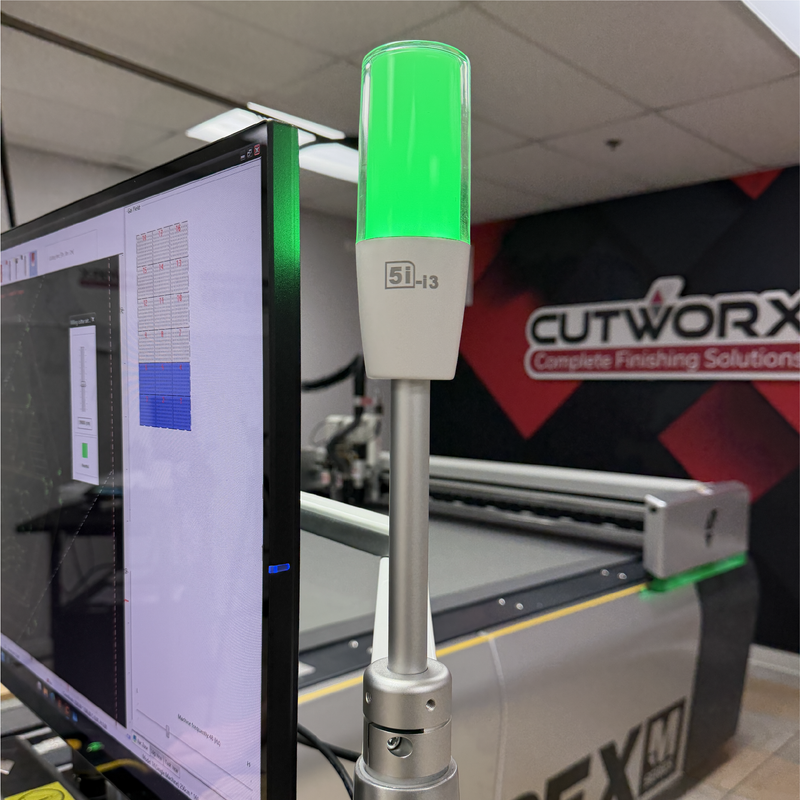

Operation indicator and proximity safety sensors on Apex M Series flatbed cutter — infrared light barrier and proximity devices.
15kW upgraded vacuum pump on Apex M Series flatbed cutter — variable zone vacuum hold-down system.

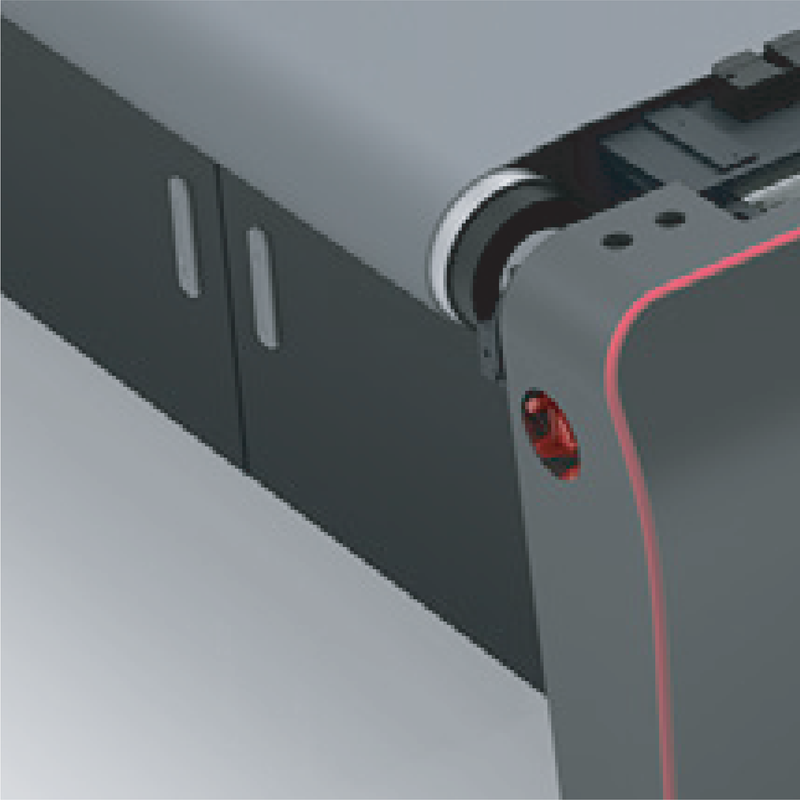

Standard conveyor belt configuration on Apex M Series flatbed cutter — automated roll feeding and media advance.
A magnetic drive system eliminates belts and mechanical friction, allowing for higher speeds up to 2000 mm/s (78.7 in/s) and acceleration beyond 2g. This results in smoother motion, greater precision, reduced maintenance, and quieter operation under 65 dB. The outcome is faster production with consistent, repeatable accuracy across every job.
The primary difference is the cutting area. The Apex M 2516 offers a 2500 x 1600 mm work area, ideal for mid-volume production and standard sheet sizes. The Apex M 3516 provides a larger 3500 x 1600 mm cutting area, perfect for high-volume operations and oversized materials. Both models feature the same magnetic drive technology, triple tool heads, and automated router bit changers.
Absolutely. The Apex M Series is engineered for high-volume production environments. With triple tool heads for simultaneous cutting and finishing, automated tool changers, and industry-leading speeds, the system dramatically reduces production time. The magnetic drive ensures consistent quality across thousands of pieces, making it ideal for commercial sticker, decal, and label production.
The Apex M Series handles a wide range of materials including vinyl, adhesive films, cardstock, foam board, corrugated plastic, magnetic sheeting, reflective materials, and more. The system features both spindle and vacuum capabilities, allowing for precise cutting, routing, creasing, and kiss-cutting across materials from thin films to rigid substrates up to 50mm thick.
The Apex M Series stands out with its fully automated router bit changer, eliminating manual tool changes and reducing downtime. The magnetic drive system delivers superior speed and quieter operation compared to traditional belt-driven systems. With triple tool heads, advanced vacuum zoning, and precision registration, the Apex M offers production-grade performance at a competitive price point.
The Apex M Series includes advanced safety features designed for high-speed production environments. An emergency stop button is located on the operator console, along with four pause and resume controls positioned at each corner of the machine for full access. The system features running lights and an indicator signal light to clearly communicate machine status. Software-driven safety prompts, a full-width light barrier, and length-adjustable proximity sensors help prevent collisions and ensure safe, controlled operation throughout every job.
