BRM Pro 1300 Class 1 Laser Cabinet

The BRM Pro 1300 Class 1 Laser Cabinet is a large format enclosed CO2 laser system designed for businesses that require flexibility, precision, and safe operation. Positioned as the largest model in the Pro series, it provides the capacity to process both small and large materials within a controlled environment.

  • Class 1 enclosed design for safe use
  • Large working area for small and large materials
  • Reliable cutting and engraving performance
Request a Quote

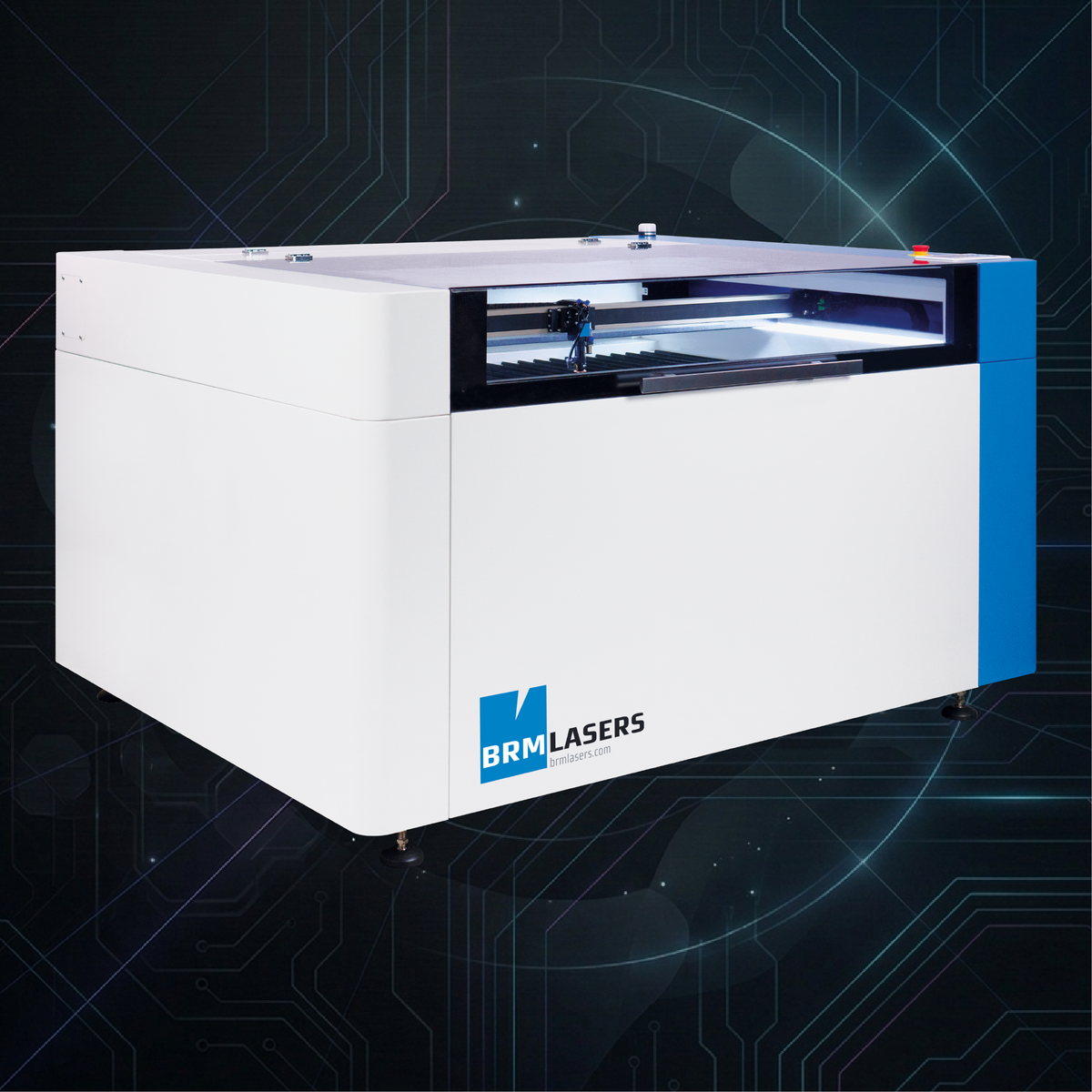

BRM Pro 1300 enclosed CO2 laser cabinet operating in professional workspace

BRM Pro 1300 Class 1 Laser Cabinet

The BRM Pro 1300 is designed for workshops and production environments that require both flexibility and capacity. Its larger working area allows users to process a wider range of material sizes while maintaining consistent results.

The enclosed design ensures safe and controlled operation, making it suitable for professional and educational settings.

What's Included

Each BRM Pro 1300 comes complete with everything you need to get started:
  • Air pump (135 W)
  • Maintenance kit
  • 1yr LightBurn software license
  • Instruction manual
  • 135 W air pump
  • Non Filtering Extraction Pump

Technical Specifications

Working area 1300 × 900 × 200 mm (51.2 × 35.4 × 7.9 in)
Machine dimensions 2000 × 1500 × 1200 mm (78.7 × 59.1 × 47.2 in)
Weight 500 kg (1,102 lb)
Electrical requirements 2 × 230 VAC, 50 Hz, max. 2.3 kW
Connectivity options USB, Ethernet, Wi-Fi
Operating climate 5-40°C (41-104°F), 20-80% humidity
Laser class Class 1
Laser power 100–130 W or 130–160 W
Accuracy 0.1 mm (0.0039 in) cutting, 420 dpi engraving
Speed 1500 mm/s (59.1 in/s) X-axis, 800 mm/s (31.5 in/s) Y-axis
Acceleration up to 20,000 mm/s² (787 in/s²) X-axis
Motor type Closed-loop stepper motor
Drive system Toothed belt
Mirror cooling Passive
Max. work piece height 200 mm (7.9")

Performance

The Pro 1300 delivers consistent cutting and engraving performance across a wide range of materials and project sizes. Its motion system supports smooth operation at high speeds while maintaining precision for detailed work.

The larger working area allows for greater flexibility in production, making it suitable for both small components and larger material sheets.

Focus length and lensesWhich lens suits your task best depends on the focus length of your lens. The focus length of a lens is stated in millimeters.

The shorter the focus length, the smaller the dot and the shorter the focus depth. The longer the focus length, the larger the dot and the longer the focus depth.

That is why a lens with a short focus length gives the best results for detailed engraving and why you need a lens with a longer focus length for thicker cutting tasks.

38.1 mm: Perfect for detailed engraving

.50.8 mm: Good result for engraving

Our most commonly used lens.

63.5 mm: For coarse engraving and cutting up to about 8 mm thickness.

101.6 mm: Perfect for cutting tasks

Optional accessories

Claw Rotary Device

Claw Rotary Device

Premium Roller Rotary Device

Premium Roller Rotary Device

Fume Filtration Devices

Fume Filtration Devices

Ideal Applications and Materials

The BRM Laser Pro 1300 is designed for professional environments requiring precision, reliability, and consistent performance across a wide range of materials.

Material Cutting Engraving Marking with Cermark
Acrylic, Plexiglas, PMMA
Coated metal (painted or anodized)
Glass and mirrors
Wood
Cardboard and hardboard
Ceramics and porcelain
Cork
Leather
MDF
Metal (polished)
Plywood
Natural stone, granite, and marble
Gaskets
Paper
Polyester
Polypropylene
Polystyrene
PVC and PVC-containing plastics
Textiles

The BRM Pro 1300 is primarily supplied to businesses and educational institutions requiring safe, flexible laser systems.

This industrial laser cutter functions as a high-speed laser system for precision cutting and engraving, offering a reliable production laser solution across multiple material sizes.

Frequently asked questions

It supports both small and large materials within its working area.

Yes, it is designed for consistent operation and scalable workflows.

Yes, the Class 1 enclosure ensures safe operation in controlled environments.

It is compatible with LightBurn for design and control.

BRM Pro Laser Cabinets come with both a Slat Table and Honeycomb Table.
