BRM Pro 900 Class 1 Laser Cabinet

The BRM Pro 900 Class 1 Laser Cabinet is a compact, fully enclosed CO2 laser system designed for safe, compliant operation without sacrificing performance. Built for environments where space, safety, and ease of use are essential, it delivers precise cutting and engraving capabilities in a controlled workspace.

  • Class 1 enclosed design for safe use
  • Compact footprint for flexible placement
  • Reliable cutting and engraving performance
Request a Quote

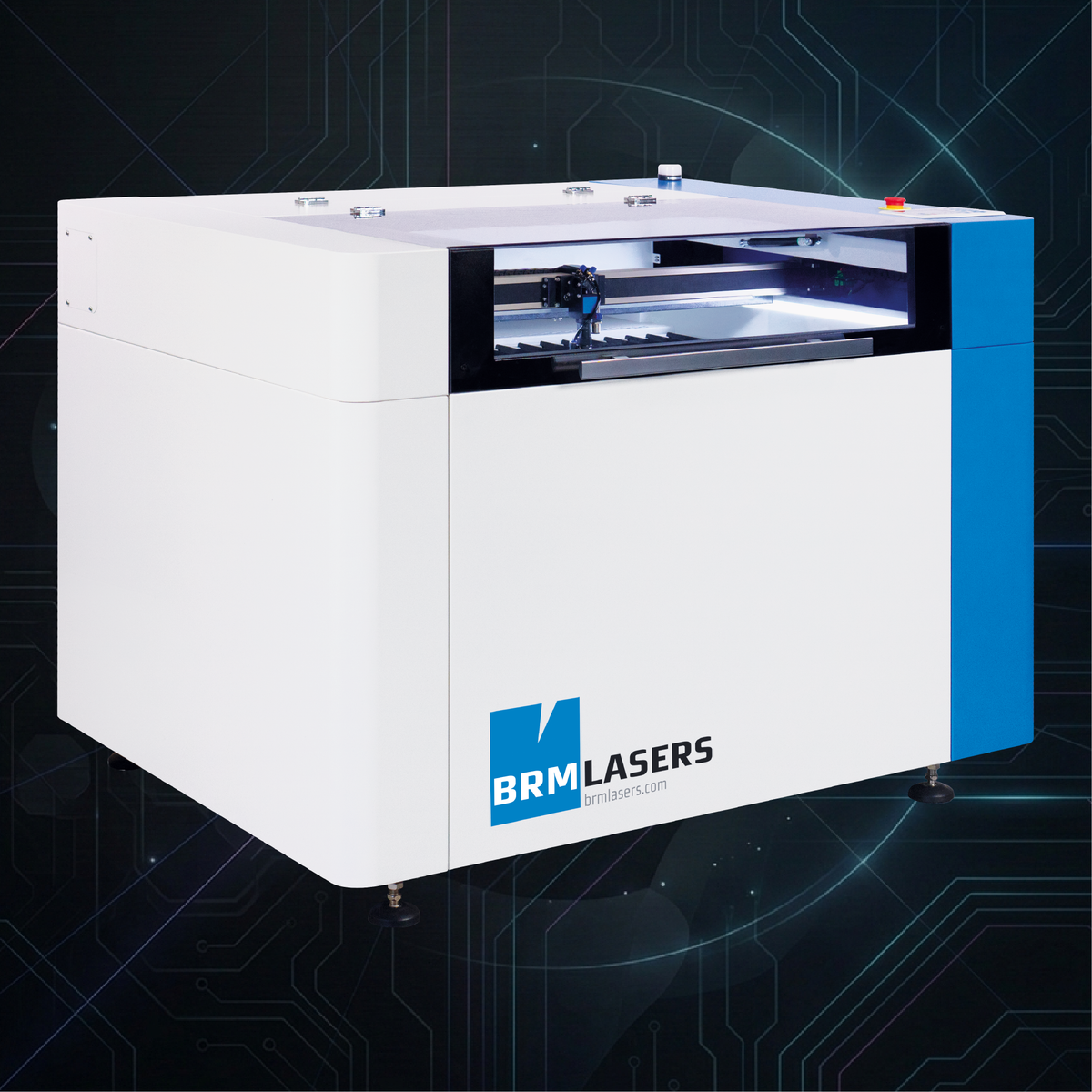

BRM Pro 900 enclosed CO2 laser cabinet operating in professional workspace

BRM Pro 900 Class 1 Laser Cabinet

The BRM Pro 900 is designed for users who need a balance between compact size and expanded capability. Its enclosed design supports safe operation, while its working area allows for a wider range of applications.

It is well suited for environments where precision and flexibility are required.

What's Included

Each BRM Pro 600 comes complete with everything you need to get started:
  • Air pump (135 W)
  • Maintenance kit
  • 1yr LightBurn software license
  • Instruction manual
  • 135 W air pump
  • Non Filtering Extraction Pump

Technical Specifications

Working area 900 × 600 × 200 mm (35.4 × 23.6 × 7.9 in)
Machine dimensions 1750 × 1200 × 1200 mm (68.9 × 47.2 × 47.2 in)
Weight 375 kg (827 lb)
Electrical requirements 2 × 230 VAC, 50 Hz, max. 2.3 kW
Connectivity options USB, Ethernet, Wi-Fi
Operating climate 5-40°C (41-104°F), 20-80% humidity
Laser class Class 1
Laser power 100–130 W
Accuracy 0.1 mm (0.0039 in) cutting, 420 dpi engraving
Speed 1500 mm/s (59.1 in/s) X-axis, 800 mm/s (31.5 in/s) Y-axis
Acceleration up to 20,000 mm/s² (787 in/s²) X-axis
Motor type Closed-loop stepper motor
Drive system Toothed belt
Mirror cooling Passive
Max. work piece height 240 mm (9")

Performance

The Pro 900 delivers consistent performance across a wide range of materials and applications. Its motion system supports smooth operation at high speeds while maintaining precision for detailed engraving and clean cutting.

The combination of enclosed safety and production capability makes it suitable for both professional and institutional use.

Focus length and lensesWhich lens suits your task best depends on the focus length of your lens. The focus length of a lens is stated in millimeters.

The shorter the focus length, the smaller the dot and the shorter the focus depth. The longer the focus length, the larger the dot and the longer the focus depth.

That is why a lens with a short focus length gives the best results for detailed engraving and why you need a lens with a longer focus length for thicker cutting tasks.

38.1 mm: Perfect for detailed engraving

.50.8 mm: Good result for engraving

Our most commonly used lens.

63.5 mm: For coarse engraving and cutting up to about 8 mm thickness.

101.6 mm: Perfect for cutting tasks

Optional accessories

Claw Rotary Device

Claw Rotary Device

Premium Roller Rotary Device

Premium Roller Rotary Device

Fume Filtration Devices

Fume Filtration Devices

Ideal Applications and Materials

The BRM Laser Pro 900 is designed for professional environments requiring precision, reliability, and consistent performance across a wide range of materials.

Material Cutting Engraving Marking with Cermark
Acrylic, Plexiglas, PMMA
Coated metal (painted or anodized)
Glass and mirrors
Wood
Cardboard and hardboard
Ceramics and porcelain
Cork
Leather
MDF
Metal (polished)
Plywood
Natural stone, granite, and marble
Gaskets
Paper
Polyester
Polypropylene
Polystyrene
PVC and PVC-containing plastics
Textiles

The BRM Pro 900 is primarily supplied to businesses and educational institutions requiring safe, enclosed laser systems.

This industrial laser cutter functions as a high-speed laser system for precision cutting and engraving, offering a reliable production laser solution for a wide range of applications.

Frequently asked questions

Yes, its Class 1 enclosed design supports safe operation in controlled spaces.

It supports wood, acrylic, plastics, and textiles.

It is ideal for small to medium-sized cutting and engraving applications.

It is compatible with LightBurn for design and control.

BRM Pro Laser Cabinets come with both a Slat Table and Honeycomb Table.
