Solve the challenge of precision cutting for printed graphics with the COMAGRAV Camera System, designed for CNC routers and UV flatbeds. Whether you're working with irregular print placements or lacking defined registration marks, this system brings automation, accuracy, and ease to your workflow.

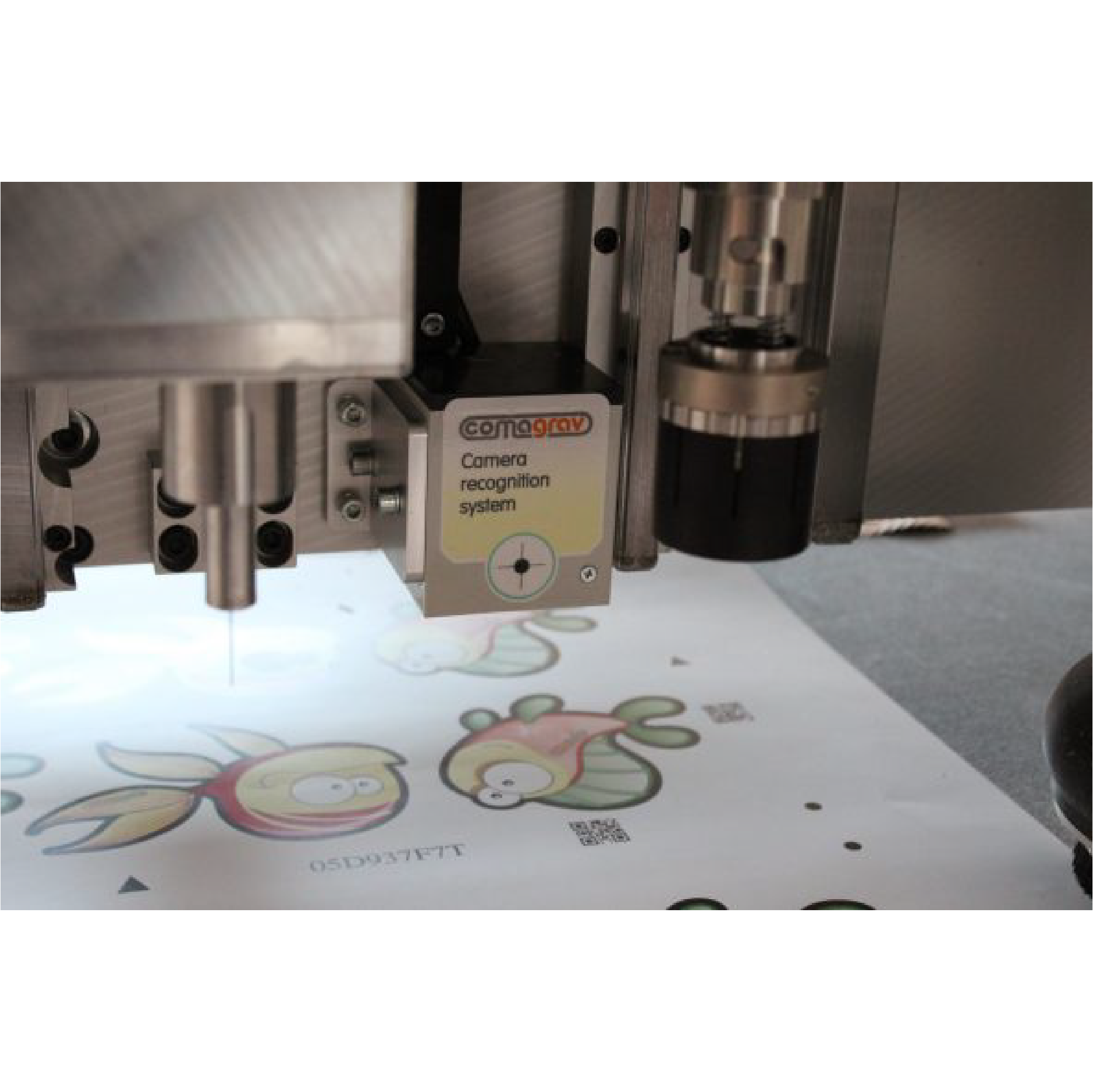

Mounted near the spindle or multifunction cutting head, the camera reads 3–4 printed markers or QR codes, then dynamically recalculates cut paths to match the actual print layout—including scale, rotation, and skew. Even when registration marks are absent, it enables visual alignment of materials across large work surfaces, streamlining setup and reducing errors.
Compatible with major RIP platforms like Onyx, Caldera, AGFA Asanti, Sai Flexi, EFI Fiery, and Adobe Illustrator, the system supports automated file loading via QR scanning and integrates seamlessly with COMAGRAV’s PILOT software for real-time trimming and compensation.
Key Features
- 📸 High-accuracy camera head mounted near cutting tools
- 🧭 Reads 3–4 print marks or QR codes for auto path adjustment
- ↩️ Calculates scale, rotation, and position corrections on the fly
- 💺 Enables visual material alignment from operator seat
- 🔁 Compatible with RIPs: Onyx, Caldera, Flexi, Fiery, Illustrator & more
- 🧠 Fully integrated with COMAGRAV PILOT system for smart trimming
Applications
- UV flatbed and digital print finishing
- CNC routing on preprinted graphics
- POS, packaging, and signage workflows
- QR-based job automation for repeatable cuts
