Comagrav Notus 1015
Comagrav Notus 1015

Comagrav Notus 1015

The COMAGRAV Notus is a multifunctional CNC servo router designed for dynamic routing, cutting, and...

Call For Availability

Call Jensen @ 469-758-2288 or email Sales@cutworxusa.com
Vendor: Comagrav
Product type: Industrial CNC Routers
Ask an expert
Description
Description
x

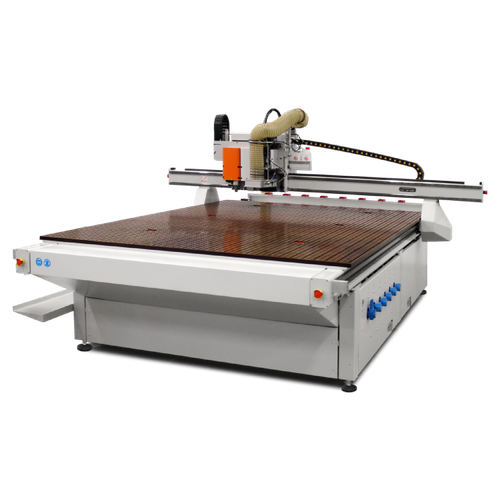

The COMAGRAV Notus is a multifunctional CNC servo router designed for dynamic routing, cutting, and 3D modeling across signage, packaging, metalworking, and prototyping. Built with a rigid steel frame and powered by Mitsubishi AC servo motors, it offers high-speed precision and modular expandability at an accessible price point.

Feature Highlights:

  • Servo Drive System: Mitsubishi AC servo motors with planetary gearboxes and helical rack & pinion for smooth, accurate motion
  • Spindle Power: Up to 9.6 kW, with speeds reaching 50,000 RPM
  • Tool Automation: Optional automatic tool changer (linear or carousel) with up to 8 tools; supports ISO-30 and HSK F63 collets
  • MULTI Head System: Optional dual-module configuration for routing, oscillating knives, creasers, drag knives, and cutting discs
  • Vacuum Table Options: Phenolic resin or aluminum alloy with 4–12 vacuum zones and optional T-slot clamping
  • Vision System: Optional camera for registration mark detection; compatible with RIP software like Onyx, Caldera, Flexi, and Adobe Illustrator
  • Control System: PILOT A+ 3D controller with Windows 10 IoT PC and CAM software integration
  • Construction: Welded steel base and portal with precision-milled surfaces for rigidity and accuracy

Table Size Options

Model

Working Area (mm)

Working Area (inches)

Notus 1015

1000 × 1500

39.4 × 59.1

Notus 1515

1550 × 1500

61.0 × 59.1

Notus 1526

1550 × 2600

61.0 × 102.4

Notus 1530

1550 × 3150

61.0 × 124.0

Notus 2030

2040 × 3150

80.3 × 124.0

Notus 2040

2040 × 4200

80.3 × 165.4



Technical Specifications:

Specification

Value

Max Feed Rate

500 mm/s (≈ 1,181 ipm); optionally up to 1100 mm/s (≈ 2,598 ipm)

Resolution

0.00078 mm

Z Axis Travel

175–450 mm (model-dependent)

Clearance Under Gantry

140–300 mm

Spindle Power Options

Up to 9.6 kW

Max Spindle Speed

Up to 50,000 RPM

Drive System

Helical rack & pinion (XY), ball screw (Z)

Motors

Mitsubishi AC servo

Vacuum Zones

4–12 (based on table size)

Vacuum Table Type

Phenolic resin or aluminum

Vacuum Power

High-pressure pump

Tool Holders

ISO-30 or HSK F63

ATC Tray Options

Linear or carousel (up to 8 tools)

Control System

PILOT A+ 3D controller + Windows 10 IoT PC

Control PC

DELL Core i3

Power Supply

3×400 VAC / 50 Hz / 16–32 A
