CWT/CWX E13B Double Edge Flat Stock Drag Knife Blade

CWT/CWX E13B Double Edge Flat Stock Drag Knife Blade

The CWT/CWX E13B is a double edged, two tip flat stock drag knife blade designed...
Vendor: Cutworx USA
SKU: CWT/CWX E13B
Product type: Knife Tools
$66.25
$66.25
Subtotal: $66.25
Ask an expert
CWT/CWX E13B Double Edge Flat Stock Drag Knife Blade

Cutworx USA

CWT/CWX E13B Double Edge Flat Stock Drag Knife Blade

$66.25
CWT/CWX E13B Double Edge Flat Stock Drag Knife Blade

Cutworx USA

CWT/CWX E13B Double Edge Flat Stock Drag Knife Blade

$66.25
Description
Description
x

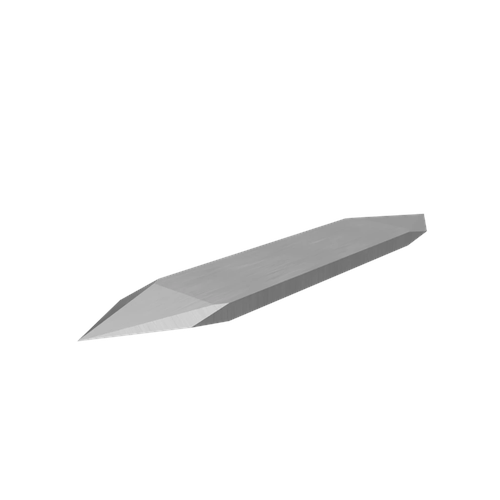

The CWT/CWX E13B is a double edged, two tip flat stock drag knife blade designed for universal cutting applications across a wide range of materials. This blade follows the same cutting parameters as the Zund Z11 blade but incorporates two cutting tips to effectively double the usable cutting life.

Compared to the E12 blade design, the E13B produces a reduced overcut and slightly shorter service life, making it well suited for applications where tighter cut control is required.

With a 60 degree cutting angle and 6.9 mm cut length, the E13B delivers reliable cutting performance across films, packaging board, flexible materials, and rigid plastics commonly used in signage, packaging, and digital finishing environments.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 60 degree 60 degree
Max Cut Length 6.9 mm 0.272 inch
Blade Thickness 1.5 mm 0.059 inch
Knife Type Flat stock double edge Flat stock double edge
Start Overcut 0.58 mm x Tm 0.023 inch x Tm
End Overcut 0.58 mm x Tm 0.023 inch x Tm
Process Type Static / Drag Static / Drag
Category Knife blade Knife blade

Two cutting tips allow extended blade life compared to single edge designs.

Materials and Applications

Material Category Supported Materials / Grades
Board Rigid EVA ethylene vinyl acetate, expanded PVC, Komatex, Plaskolite, Sintra
Board Soft Corrugated plastic, matboard, polycarbonate sheet, styrene
Composite Prepreg carbon fiber, prepreg quartz, prepreg unidirectional carbon fiber
Flexible Material Carpet, cork, ejection rubber, foam, Garlock gasket materials, magnetic foil, PTFE, PVC banner, rubber, tarpaulin
Film / Vinyl 3M reflective films, Avery Dennison vinyl, General Formulations vinyl, polycarbonate film, pre mask, reflective vinyl, removable wallpaper, window perf
Folding Carton / Chipboard 20 pt, 32 pt, 50 pt, 85 pt
Paper 22 lb to 140 lb
Textile Canvas, felt, polyester coated, polypropylene, Sunbrella

Paper weights listed in industry standard lb basis weight. Board grades listed in point thickness.

Machine Compatibility

Brand Compatible Models / Series
Kongsberg XP, C Series
Zund G3
Gerber MCT
CUTWORX Apex Series
Summa F Series
Multicam Digital cutting tables
Colex Flatbed cutters
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm 1.5 mm flat stock drag knife holder compatibility prior to ordering
