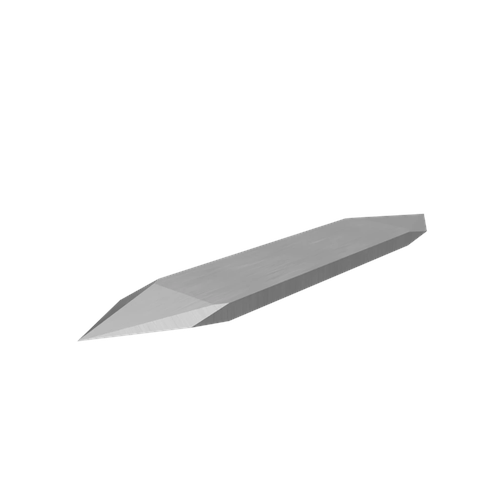

CWT/CWX E13C Short Shank Double Edge Flat Stock Drag Knife Blade

CWT/CWX E13C Short Shank Double Edge Flat Stock Drag Knife Blade

The CWT/CWX E13C is a shortened shank version of the E13 style double edged drag...
Vendor: Cutworx USA
SKU: CWT/CWX E13C
Product type: Knife Tools
$38.00
$38.00
Subtotal: $38.00
Ask an expert
CWT/CWX E13C Short Shank Double Edge Flat Stock Drag Knife Blade

Cutworx USA

CWT/CWX E13C Short Shank Double Edge Flat Stock Drag Knife Blade

$38.00
CWT/CWX E13C Short Shank Double Edge Flat Stock Drag Knife Blade

Cutworx USA

CWT/CWX E13C Short Shank Double Edge Flat Stock Drag Knife Blade

$38.00
Description
Description
x

The CWT/CWX E13C is a shortened shank version of the E13 style double edged drag knife blade, engineered specifically for Colex Sharpcut flatbed cutters and compatible digital cutting systems.

This blade maintains the same cutting geometry as the standard E13 design but features a shorter shank length to ensure compatibility with certain table manufacturers including Colex platforms. The double edged design provides two cutting tips, allowing the blade to be rotated for extended service life.

Compared to the E12A blade, the E13C produces reduced overcut and slightly shorter cutting life, making it suitable for applications requiring tighter cut control in packaging materials, plastics, films, and flexible substrates.

Ideal for signage production, packaging prototyping, vinyl cutting, and industrial digital finishing workflows.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 60 degree 60 degree
Max Cut Length 6.9 mm 0.272 inch
Blade Thickness 1.5 mm 0.059 inch
Knife Type Flat stock double edge Flat stock double edge
Start Overcut 0.58 mm x Tm 0.023 inch x Tm
End Overcut 0.58 mm x Tm 0.023 inch x Tm
Process Type Static / Drag Static / Drag
Category Knife blade Knife blade

Short shank configuration designed for Colex Sharpcut compatibility.

Materials and Applications

Material Category Supported Materials / Grades
Board Rigid EVA ethylene vinyl acetate, expanded PVC, Sign Foam, Sintra
Board Soft Corrugated plastic, Fome Cor, polycarbonate sheet
Composite Kapton, prepreg carbon fiber, prepreg quartz, prepreg unidirectional carbon fiber
Flexible Material Magnetic foil, PTFE, PVC banner, rubber, tarpaulin
Film / Vinyl 3M reflective films, Avery Dennison vinyl, General Formulations vinyl, polycarbonate film, pre mask, reflective vinyl, removable wallpaper, sandblast masking, self adhesive vinyl
Folding Carton / Chipboard 20 pt, 32 pt, 50 pt, 85 pt
Textile Polyester coated, polyester textile

Paperboard grades listed in industry standard point thickness.
