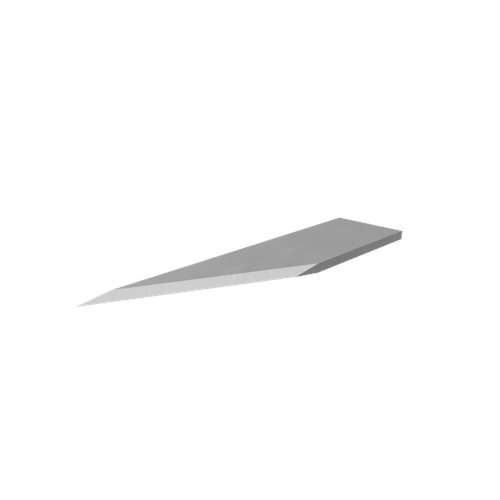

CWT/CWX E17A 0.63 mm Flat Stock Oscillating Knife Blade

CWT/CWX E17A 0.63 mm Flat Stock Oscillating Knife Blade

The CWT/CWX E17A flat stock blade is engineered for precision cutting of thin materials in...
Vendor: Cutworx USA
SKU: CWT/CWX E17A
Product type: Knife Tools
$36.25
$36.25
Subtotal: $36.25
Ask an expert
CWT/CWX E17A 0.63 mm Flat Stock Oscillating Knife Blade

Cutworx USA

CWT/CWX E17A 0.63 mm Flat Stock Oscillating Knife Blade

$36.25
CWT/CWX E17A 0.63 mm Flat Stock Oscillating Knife Blade

Cutworx USA

CWT/CWX E17A 0.63 mm Flat Stock Oscillating Knife Blade

$36.25
Description
Description
x

The CWT/CWX E17A flat stock blade is engineered for precision cutting of thin materials in professional digital cutting systems. Designed with a 65 degree angle and extended 12 mm cut length, this blade delivers reduced overcut while maintaining controlled penetration.

The E17A produces slightly more drag than the E16 profile, making it best suited for oscillating knife applications where stability and edge control are critical. It supports clean internal geometry and consistent performance across lightweight rigid, flexible, and paper based substrates.

For best results, use with an oscillating tool configuration.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 65 degree 65 degree
Max Cut Length 12 mm 0.472 inch
Blade Thickness 0.63 mm 0.025 inch
Knife Type Flat stock Flat stock
End Overcut 0.47 mm x Tm 0.019 inch x Tm
Process Type Oscillate / Drag Oscillate / Drag
Category Knife blade Knife blade


Materials and Applications

Material Category Supported Materials / Grades
Board Soft Foam board, Fome Cor, matboard, styrene
Corrugated Single Wall or Single Face E flute, F flute, G flute
Flexible Material Foam, magnetic foil, PTFE, PVC banner, tarpaulin
Film / Vinyl Self adhesive vinyl, reflective vinyl, sandblast masking, removable wallpaper, window perf
Folding Carton / Chipboard 20 pt, 50 pt
Paper 22 lb to 140 lb

Paper weights listed in industry standard lb basis weight. Board grades listed in point thickness.

Machine Compatibility

Brand Compatible Models / Series
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
CUTWORX Apex Series
Multicam Digital cutting tables
Colex Flatbed cutters
Summa F Series
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm 0.63 mm flat stock holder compatibility prior to ordering.
