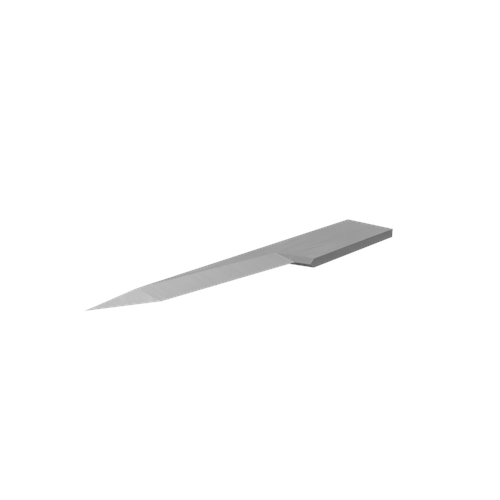

CWT/CWX E20 0.63 mm Flat Stock Oscillating Knife Blade

CWT/CWX E20 0.63 mm Flat Stock Oscillating Knife Blade

The CWT/CWX E20 flat stock blade is engineered for oscillating cutting of intricate detail and...
Vendor: Cutworx USA
SKU: CWT/CWX E20
Product type: Knife Tools
$42.50
$42.50
Subtotal: $42.50
Ask an expert
CWT/CWX E20 0.63 mm Flat Stock Oscillating Knife Blade

Cutworx USA

CWT/CWX E20 0.63 mm Flat Stock Oscillating Knife Blade

$42.50
CWT/CWX E20 0.63 mm Flat Stock Oscillating Knife Blade

Cutworx USA

CWT/CWX E20 0.63 mm Flat Stock Oscillating Knife Blade

$42.50
Description
Description
x

The CWT/CWX E20 flat stock blade is engineered for oscillating cutting of intricate detail and small radius details. Designed to deliver minimal overcut and clean internal geometry, this blade is ideal for complex contour work and precision applications across rigid, composite, and flexible substrates.

Featuring a dual angle geometry of 63 degree plus 84 degree and an extended 14.3 mm cut length, the E20 supports controlled penetration and exceptional accuracy in demanding digital cutting environments.

Optimized for oscillating knife tools in signage, packaging, display fabrication, and industrial composite cutting.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 63 degree plus 84 degree 63 degree plus 84 degree
Max Cut Length 14.3 mm 0.563 inch
Blade Thickness 0.63 mm 0.025 inch
Knife Type Flat stock Flat stock
End Overcut 1.2 mm x Tm 0.047 inch x Tm
Process Type Oscillate Oscillate
Category Knife blade Knife blade

Materials and Applications

Material Category Supported Materials / Grades
Board Soft Corrugated plastic, Dispa, F Sorb, foam board, Fome Cor, Insite foam board, matboard, polycarbonate sheet, polyester acoustic board, Reboard, sandwich board, Xanita board
Composite Aramid dry fiber, dry carbon fiber, dry glass fiber, Nomex dry fiber, prepreg carbon fiber, prepreg quartz, unidirectional carbon fiber
Corrugated Single Wall or Single Face A flute, B flute, C flute, D flute, E flute, F flute, G flute
Corrugated Double Wall AB flute, BC flute, BE flute, EB flute, EC flute, EE flute, FE flute
Corrugated Triple Wall EBE flute
Flexible Material Carpet, cork, ejection rubber, fiberglass, foam, gasket materials, insulation, magnetic foil, PTFE, rubber
Folding Carton / Chipboard 20 pt, 32 pt
Paper 93 lb to 140 lb
Textile Canvas, felt, polyester coated, polyester textile, polypropylene
Leather Leather hide

Paper weights listed in industry standard lb basis weight. Board grades listed in point thickness.

Machine Compatibility

Brand Compatible Models / Series
Colex SX, SXC, PX
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
CUTWORX Apex Series
Multicam Digital cutting tables
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm 0.63 mm flat stock oscillating tool holder compatibility prior to ordering.
