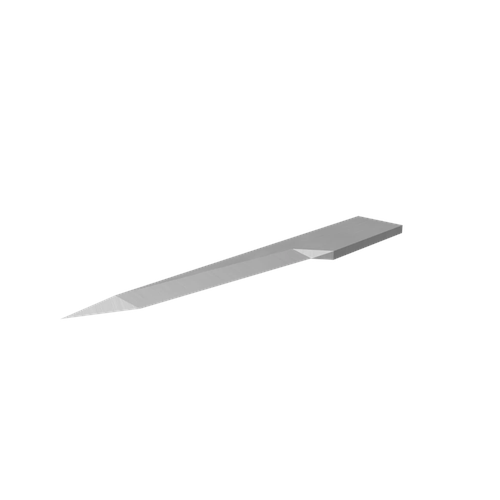

CWT/CWX E21A 0.63 mm Flat Stock Oscillating Knife Blade

CWT/CWX E21A 0.63 mm Flat Stock Oscillating Knife Blade

The CWT/CWX E21A flat stock blade is engineered for oscillating cutting of intricate detail and...
Vendor: Cutworx USA
SKU: CWT/CWX E21A
Product type: Knife Tools
$42.50
$42.50
Subtotal: $42.50
Ask an expert
CWT/CWX E21A 0.63 mm Flat Stock Oscillating Knife Blade

Cutworx USA

CWT/CWX E21A 0.63 mm Flat Stock Oscillating Knife Blade

$42.50
CWT/CWX E21A 0.63 mm Flat Stock Oscillating Knife Blade

Cutworx USA

CWT/CWX E21A 0.63 mm Flat Stock Oscillating Knife Blade

$42.50
Description
Description
x

The CWT/CWX E21A flat stock blade is engineered for oscillating cutting of intricate detail and tight internal curves while maintaining low overcut. With an extended 17.2 mm cut length and dual angle geometry, this blade supports deeper penetration and clean internal geometry in demanding materials.

Designed for precision digital cutting systems, the E21A delivers accurate contour cutting across corrugated structures, display boards, sandwich panels, and flexible industrial substrates where edge control and consistency are critical.

Optimized for oscillating knife applications in signage, packaging, display fabrication, and industrial production environments.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 63 degree plus 84 degree 63 degree plus 84 degree
Max Cut Length 17.2 mm 0.677 inch
Blade Thickness 0.63 mm 0.025 inch
Knife Type Flat stock Flat stock
End Overcut 1.6 mm plus 0.11 mm x Tm 0.063 inch plus 0.004 inch x Tm
Process Type Oscillate Oscillate
Category Knife blade Knife blade

Materials and Applications

Material Category Supported Materials / Grades
Board Soft Corrugated plastic, Dispa, F Sorb, foam board, Fome Cor, Insite foam board, polyester acoustic board, Reboard, sandwich board, Xanita board
Corrugated Single Wall or Single Face A flute, B flute, C flute
Corrugated Double Wall AB flute, BC flute, BE flute, EB flute, EC flute, EE flute, FE flute
Corrugated Triple Wall EBE flute
Flexible Material Carpet, cork, ejection rubber, fiberglass, foam, gasket materials, insulation, magnetic foil, rubber, tarpaulin, Zintra
Folding Carton / Chipboard 20 pt, 32 pt, 50 pt, 85 pt
Textile Polyester coated, polyester textile

Board grades listed in industry standard point thickness.

Machine Compatibility

Brand Compatible Models / Series
Colex SX, SXC, PX
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
Multicam Celero, Digital Express
CUTWORX Apex Series
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm 0.63 mm flat stock oscillating holder compatibility prior to ordering.
