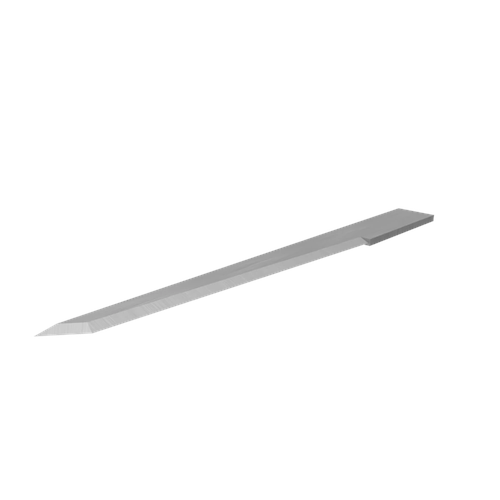

CWT/CWX E22 0.63 mm Flat Stock Oscillating Knife Blade

CWT/CWX E22 0.63 mm Flat Stock Oscillating Knife Blade

The CWT/CWX E22 flat stock blade is similar to the E20 profile but built more...
Vendor: Cutworx USA
Product type: Knife Tools
$43.75
$43.75
Subtotal: $43.75
Ask an expert
CWT/CWX E22 0.63 mm Flat Stock Oscillating Knife Blade

Cutworx USA

CWT/CWX E22 0.63 mm Flat Stock Oscillating Knife Blade

$43.75
CWT/CWX E22 0.63 mm Flat Stock Oscillating Knife Blade

Cutworx USA

CWT/CWX E22 0.63 mm Flat Stock Oscillating Knife Blade

$43.75
Description
Description
x

The CWT/CWX E22 flat stock blade is similar to the E20 profile but built more robust with slightly increased overcut. Designed for oscillating cutting of intricate detail and tight internal geometry, it provides enhanced durability while maintaining precision edge quality.

With a dual angle geometry of 63 degree plus 79 degree and a 14 mm cut length, the E22 delivers stable performance across corrugated structures, display board, sandwich panels, and flexible industrial materials.

Optimized for oscillating knife applications in signage, packaging, display fabrication, and composite processing environments.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 63 degree plus 79 degree 63 degree plus 79 degree
Max Cut Length 14 mm 0.551 inch
Blade Thickness 0.63 mm 0.025 inch
Knife Type Flat stock Flat stock
End Overcut 1.2 mm x Tm 0.047 inch x Tm
Process Type Oscillate Oscillate
Category Knife blade Knife blade

Materials and Applications

Material Category Supported Materials / Grades
Board Soft Corrugated plastic, Dispa, F Sorb, foam board, Fome Cor, Insite foam board, matboard, polyester acoustic board, Reboard, sandwich board, Xanita board
Corrugated Single Wall or Single Face A flute, B flute, C flute, D flute, E flute, F flute, G flute
Corrugated Double Wall AB flute, BC flute, BE flute, EB flute, EC flute, EE flute, FE flute
Corrugated Triple Wall EBE flute
Flexible Material Carpet, cork, ejection rubber, fiberglass, foam, gasket material, insulation, magnetic foil, PTFE, rubber, tarpaulin, Zintra
Textile Felt

Board grades listed in industry standard point thickness.

Machine Compatibility

Brand Compatible Models / Series
Colex SX, SXC, PX
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
Multicam Celero, Digital Express
CUTWORX Apex Series
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm 0.63 mm flat stock oscillating holder compatibility prior to ordering.
