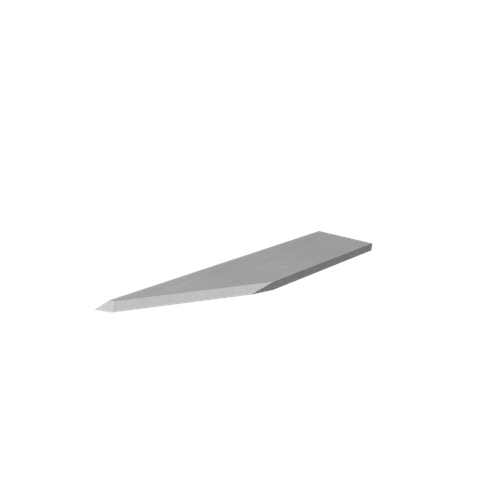

CWT/CWX E26A 0.63 mm Flat Stock Oscillating Knife Blade

CWT/CWX E26A 0.63 mm Flat Stock Oscillating Knife Blade

The CWT/CWX E26A flat stock blade features a robust design for oscillating cutting across a...
Vendor: Cutworx USA
SKU: CWT/CWX E26A
Product type: Knife Tools
$41.25
$41.25
Subtotal: $41.25
Ask an expert
CWT/CWX E26A 0.63 mm Flat Stock Oscillating Knife Blade

Cutworx USA

CWT/CWX E26A 0.63 mm Flat Stock Oscillating Knife Blade

$41.25
CWT/CWX E26A 0.63 mm Flat Stock Oscillating Knife Blade

Cutworx USA

CWT/CWX E26A 0.63 mm Flat Stock Oscillating Knife Blade

$41.25
Description
Description
x

The CWT/CWX E26A flat stock blade features a robust design for oscillating cutting across a wide range of materials and is especially suited for the UPCT tool in high speed packaging applications.

Engineered for durability and stability, this blade maintains clean edge quality while operating at elevated speeds in folding carton, corrugated, and display production environments. The dual angle geometry of 22 degree plus 65 degree and 8.7 mm cut length provide controlled penetration and reliable performance in demanding packaging workflows.

Optimized for oscillating knife systems where strength, consistency, and production speed are critical.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 22 degree plus 65 degree 22 degree plus 65 degree
Max Cut Length 8.7 mm 0.343 inch
Blade Thickness 0.63 mm 0.025 inch
Knife Type Flat stock Flat stock
End Overcut 1.20 mm x Tm 0.047 inch x Tm
Process Type Oscillate Oscillate
Category Knife blade Knife blade

Materials and Applications

Material Category Supported Materials / Grades
Board Soft Corrugated plastic, foam board, Fome Cor, matboard, sandwich board, styrene
Composite Aramid dry fiber, dry carbon fiber, dry glass fiber, Kapton, Nomex dry fiber, prepreg carbon fiber, prepreg quartz, unidirectional carbon fiber
Corrugated Single Wall or Single Face A flute, B flute, C flute, D flute, E flute, F flute, G flute
Flexible Material Carpet, cork, foam, gasket materials, magnetic foil, PTFE, PVC banner, rubber, tarpaulin
Folding Carton / Chipboard 20 pt, 32 pt, 50 pt, 85 pt
Leather Leather hide
Textile Aurora textile, Berger textile, canvas, felt, Fisher textile, polyester coated, polyester textile, poplin, Samba

Board grades listed in industry standard point thickness.

Machine Compatibility

Brand Compatible Models / Series
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
CUTWORX Apex Series
Multicam Digital cutting tables
Colex Flatbed cutters
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Especially suited for UPCT tool configurations in high speed packaging environments.
Confirm 0.63 mm flat stock oscillating holder compatibility prior to ordering.
