Description
Description
x

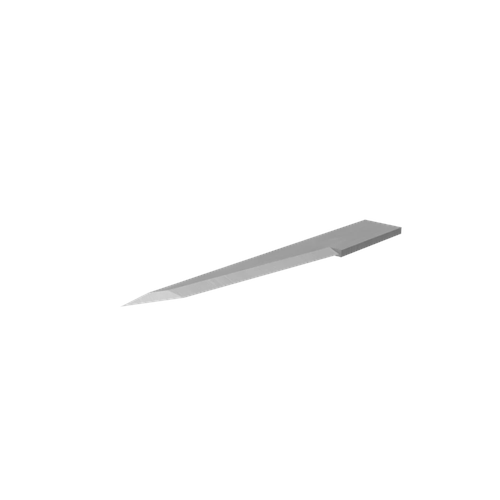

The CWT/CWX E27A is an oscillating flat stock blade engineered for cutting textiles, fabrics, and fibrous tissues with precision and control. Designed to reduce fraying and maintain clean edge definition, this blade performs consistently in high speed digital finishing environments.

Featuring a dual angle geometry of 65 degree plus 83 degree and a 10 mm cut length, the E27A delivers controlled penetration and smooth cutting performance across technical fabrics, soft materials, and structured textile composites.

Ideal for soft signage, fabric graphics, industrial textiles, and specialty fibrous substrates.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 65 degree plus 83 degree 65 degree plus 83 degree
Max Cut Length 10 mm 0.394 inch
Blade Thickness 0.63 mm 0.025 inch
Knife Type Flat stock Flat stock
End Overcut To be defined To be defined
Process Type Oscillate Oscillate
Category Knife blade Knife blade

Materials and Applications

Material Category Supported Materials / Grades
Textile Felt and fibrous textile materials
Flexible Material Carpet, cork, ejection rubber, fiberglass, foam, gasket material, insulation, magnetic materials, rubber, tarpaulin, Zintra
Board Soft Corrugated plastic, Dispa, F Sorb, foam board, Fome Cor, Insite foam board, matboard, polyester acoustic board, Reboard, sandwich board, Xanita board
Corrugated Single Wall or Single Face A flute, B flute, C flute
Corrugated Double Wall AB flute, BC flute, BE flute, EB flute, EC flute, EE flute, FE flute
Corrugated Triple Wall EBE flute

Board grades listed in industry standard point thickness.

Machine Compatibility

Brand Compatible Models / Series
Colex SX, SXC, PX
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
CUTWORX Apex Series
Multicam Digital cutting tables
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm 0.63 mm flat stock oscillating holder compatibility prior to ordering.
