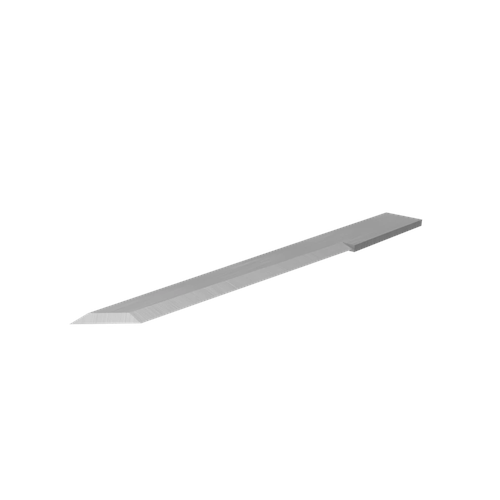

CWT/CWX E28A 0.63 mm Long Oscillating Flat Stock Blade

CWT/CWX E28A 0.63 mm Long Oscillating Flat Stock Blade

The CWT/CWX E28A is a long oscillating flat stock blade engineered for cutting soft and...
Vendor: Cutworx USA
SKU: CWT/CWX E28A
Product type: Knife Tools
$57.50
$57.50
Subtotal: $57.50
Ask an expert
CWT/CWX E28A 0.63 mm Long Oscillating Flat Stock Blade

Cutworx USA

CWT/CWX E28A 0.63 mm Long Oscillating Flat Stock Blade

$57.50
CWT/CWX E28A 0.63 mm Long Oscillating Flat Stock Blade

Cutworx USA

CWT/CWX E28A 0.63 mm Long Oscillating Flat Stock Blade

$57.50
Description
Description
x

The CWT/CWX E28A is a long oscillating flat stock blade engineered for cutting soft and thick materials such as foam, honeycomb structures, and corrugated board. Designed for deeper penetration, this blade supports high performance cutting in thicker substrates where extended reach and stability are required.

Featuring a 4 degree plus 45 degree geometry and an extended 26 mm cut length, the E28A delivers controlled cutting action across structural board, foam based materials, and multi wall corrugated constructions.

Optimized for oscillating knife systems in display fabrication, packaging production, and industrial finishing environments handling thicker materials.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 4 degree plus 45 degree 4 degree plus 45 degree
Max Cut Length 26 mm 1.024 inch
Blade Thickness 0.63 mm 0.025 inch
Knife Type Flat stock Flat stock
End Overcut 1.9 mm plus 0.07 mm x Tm 0.075 inch plus 0.003 inch x Tm
Process Type Oscillate Oscillate
Category Knife blade Knife blade

Materials and Applications

Material Category Supported Materials / Grades
Board Soft Dispa, F Sorb, foam board, Fome Cor, Insite foam board, polyester acoustic board, Reboard, Xanita board
Corrugated Single Wall or Single Face A flute, B flute, C flute
Corrugated Double Wall AB flute, BC flute
Corrugated Triple Wall ABA flute, EBE flute
Flexible Material Cork, ejection rubber, fiberglass, foam, gasket material, insulation, rubber

Board grades listed in industry standard point thickness.

Machine Compatibility

Brand Compatible Models / Series
Colex SX, SXC, PX
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
Multicam Celero, Digital Express
CUTWORX Apex Series
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm 0.63 mm flat stock oscillating holder compatibility prior to ordering.
