CWT/CWX E29 0.63mm Long Oscillating Flat Stock Blade

CWT/CWX E29 0.63mm Long Oscillating Flat Stock Blade

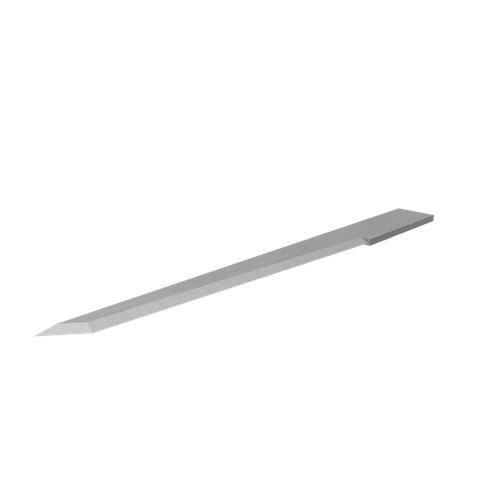

The CWT/CWX E29 is a long oscillating flat stock blade engineered for cutting soft, thick...
Vendor: Cutworx USA
SKU: CWT/CWX E29
Product type: Knife Tools
$58.75
$58.75
Subtotal: $58.75
Ask an expert
CWT/CWX E29 0.63mm Long Oscillating Flat Stock Blade

Cutworx USA

CWT/CWX E29 0.63mm Long Oscillating Flat Stock Blade

$58.75
CWT/CWX E29 0.63mm Long Oscillating Flat Stock Blade

Cutworx USA

CWT/CWX E29 0.63mm Long Oscillating Flat Stock Blade

$58.75
Description
Description
x

The CWT/CWX E29 is a long oscillating flat stock blade engineered for cutting soft, thick materials such as foam, honeycomb structures, and insulating mat. Similar in application to the E28 profile but with a longer 28 mm cut length, the E29 provides extended reach for deeper material penetration.

Featuring a 3.5 degree plus 45 degree geometry, this blade delivers controlled oscillating performance across structural foam and insulation materials used in display, packaging, and industrial fabrication environments.

Designed for professional digital cutting systems requiring long stroke capability and stable cutting in thick substrates.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 3.5 degree plus 45 degree 3.5 degree plus 45 degree
Max Cut Length 28 mm 1.102 inch
Blade Thickness 0.63 mm 0.025 inch
Knife Type Flat stock Flat stock
End Overcut 1.9 mm plus 0.07 mm x Tm 0.075 inch plus 0.003 inch x Tm
Process Type Oscillate Oscillate
Category Knife blade Knife blade


Materials and Applications

Material Category Supported Materials / Grades
Board Soft Dispa, F Sorb, foam board, Fome Cor, Insite foam board, polyester acoustic board, Reboard, Xanita board
Flexible Material Carpet, fiberglass, foam, insulation, rubber

Board grades listed in industry standard point thickness.

Machine Compatibility

Brand Compatible Models / Series
Colex SX, SXC, PX
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
CUTWORX Apex Series
Multicam Digital cutting tables
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm 0.63 mm flat stock oscillating holder compatibility prior to ordering.
