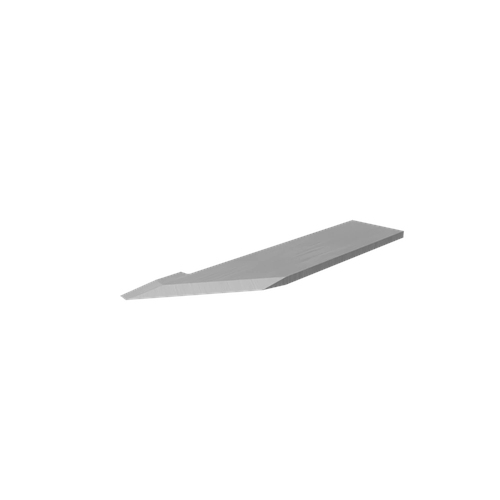

CWT/CWX E42 0.63 mm Flat Stock Oscillating Blade

CWT/CWX E42 0.63 mm Flat Stock Oscillating Blade

The CWT/CWX E42 is a robust oscillating flat stock blade designed for stable cutting performance...
Vendor: Cutworx USA
SKU: CWT/CWX E42
Product type: Knife Tools
$36.25
$36.25
Subtotal: $36.25
Ask an expert
CWT/CWX E42 0.63 mm Flat Stock Oscillating Blade

Cutworx USA

CWT/CWX E42 0.63 mm Flat Stock Oscillating Blade

$36.25
CWT/CWX E42 0.63 mm Flat Stock Oscillating Blade

Cutworx USA

CWT/CWX E42 0.63 mm Flat Stock Oscillating Blade

$36.25
Description
Description
x

The CWT/CWX E42 is a robust oscillating flat stock blade designed for stable cutting performance with a small pre cut. Similar in application to the E26 profile, the E42 offers strong durability while maintaining controlled penetration and clean edge definition.

With a 55 degree cutting angle and 7.8 mm cut length, this blade performs consistently in composites, corrugated materials, and technical textiles. The small start overcut helps initiate precise cuts while maintaining edge integrity in demanding production environments.

Engineered for oscillating knife systems used in signage, composite fabrication, textile cutting, and industrial finishing workflows.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 55 degree 55 degree
Max Cut Length 7.8 mm 0.307 inch
Blade Thickness 0.63 mm 0.025 inch
Knife Type Flat stock Flat stock
Start Overcut 0.05 mm plus 0.7 mm 0.002 inch plus 0.028 inch
End Overcut 0.80 mm x Tm 0.031 inch x Tm
Process Type Oscillate Oscillate
Category Knife blade Knife blade

Materials and Applications

Material Category Supported Materials / Grades
Composite Aramid dry fiber, dry carbon fiber, dry glass fiber, Kapton, Nomex dry fiber, prepreg carbon fiber, prepreg quartz, unidirectional carbon fiber
Corrugated Single Wall or Single Face A flute, B flute, C flute, D flute, E flute, F flute, G flute
Flexible Material Carpet, fiberglass, Garlock, insulation
Leather Leather hide
Textile Aurora textile, Berger textile, canvas, Dacron, felt, Fisher textile, nylon, polyester coated, polyester textile, polypropylene, poplin, Samba, soft knit, Spandex, Sunbrella, Verseidag

Board grades listed in industry standard point thickness where applicable.

Machine Compatibility

Brand Compatible Models / Series
Colex SX, SXC, PX
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
Multicam Celero, Digital Express
CUTWORX Apex Series
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm 0.63 mm flat stock oscillating holder compatibility prior to ordering.
