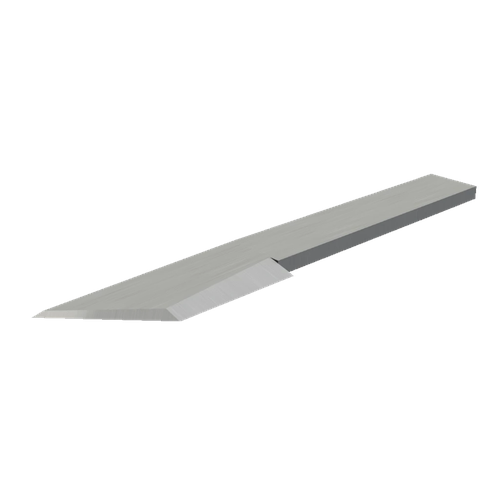

CWT/CWX E46C 1.5 mm Flat Stock Drag Knife Blade

CWT/CWX E46C 1.5 mm Flat Stock Drag Knife Blade

The CWT/CWX E46C is a robust flat stock drag knife blade engineered specifically for Colex...
Vendor: Cutworx USA
SKU: CWT/CWX E46C
Product type: Knife Tools
$57.50
$57.50
Subtotal: $57.50
Ask an expert
CWT/CWX E46C 1.5 mm Flat Stock Drag Knife Blade

Cutworx USA

CWT/CWX E46C 1.5 mm Flat Stock Drag Knife Blade

$57.50
CWT/CWX E46C 1.5 mm Flat Stock Drag Knife Blade

Cutworx USA

CWT/CWX E46C 1.5 mm Flat Stock Drag Knife Blade

$57.50
Description
Description
x

The CWT/CWX E46C is a robust flat stock drag knife blade engineered specifically for Colex Sharpcut systems. Based on the E46 geometry, this version features a shorter shank length for compatibility with certain table manufacturers while maintaining the same durable cutting profile.

Designed for strength and stability, the E46C delivers low drag force with a larger overcut, making it ideal for foam boards up to 4.75 mm thick, equivalent to 3/16 inch, as well as rigid and semi rigid materials.

This blade is purpose built for Sharpcut users and reflects CUTWORX USA’s commitment to providing precision flat stock knife tooling for virtually every flatbed cutter platform on the market.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 45 degree plus 90 degree 45 degree plus 90 degree
Max Cut Length 20 mm 0.787 inch
Blade Thickness 1.5 mm 0.059 inch
Recommended Foam Thickness Up to 4.75 mm Up to 3/16 inch
Knife Type Flat stock Flat stock
End Overcut 1 mm x Tm 0.039 inch x Tm
Process Type Static / Drag Static / Drag
Category Knife blade Knife blade

Shorter shank length for Sharpcut compatibility.

Materials and Applications

Material Category Supported Materials / Grades
Board Rigid EVA ethylene vinyl acetate, expanded PVC, HDU high density urethane, Komatex, Plaskolite, polycarbonate board, polyethylene 4 lb density, Precision Board, Sign Foam, Sintra
Board Soft Corrugated plastic, Dispa, F Sorb, foam board, Fome Cor, Insite foam board, matboard, polycarbonate sheet, polyester acoustic board, sandwich board, styrene
Flexible Material Carpet, cork, ejection rubber, foam, gasket materials, magnetic foil, PTFE, PVC banner, rubber, tarpaulin
Folding Carton / Chipboard 20 pt, 32 pt, 50 pt, 85 pt
Paper 22 lb to 140 lb

Paper weights listed in industry standard lb basis weight. Board grades listed in point thickness.

Machine Compatibility

Brand Compatible Models / Series
Colex SX, SXC, PX, Sharpcut
Kongsberg XP, C Series
Gerber MCT
Summa F Series
Multicam Celero, Digital Express
CUTWORX Apex Series
Zund G3, S3
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Specifically configured for Colex Sharpcut systems. Confirm 1.5 mm flat stock drag knife holder compatibility prior to ordering.
