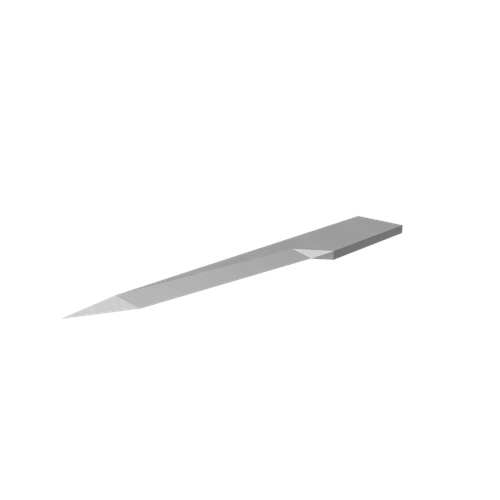

CWT/CWX E60 1.5 mm Flat Stock Oscillating Blade

CWT/CWX E60 1.5 mm Flat Stock Oscillating Blade

The CWT/CWX E60 is a high rigidity oscillating flat stock blade engineered for cutting intricate...
Vendor: Cutworx USA
SKU: CWT/CWX E60
Product type: Knife Tools
$53.75
$53.75
Subtotal: $53.75
Ask an expert
CWT/CWX E60 1.5 mm Flat Stock Oscillating Blade

Cutworx USA

CWT/CWX E60 1.5 mm Flat Stock Oscillating Blade

$53.75
CWT/CWX E60 1.5 mm Flat Stock Oscillating Blade

Cutworx USA

CWT/CWX E60 1.5 mm Flat Stock Oscillating Blade

$53.75
Description
Description
x

The CWT/CWX E60 is a high rigidity oscillating flat stock blade engineered for cutting intricate detail and tight internal geometry with low overcut. Similar in cutting profile to the E21 design, this version features a thicker 1.5 mm shank for increased stability and reduced blade deflection during demanding applications.

With a 55 degree plus 81.5 degree geometry and a 16.5 mm cut length, the E60 delivers precise oscillating performance across corrugated board, structural display materials, and flexible substrates requiring strength and clean edge quality.

Designed for professional digital cutting systems where accuracy and blade stability are critical.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 55 degree plus 81.5 degree 55 degree plus 81.5 degree
Max Cut Length 16.5 mm 0.65 inch
Blade Thickness 1.5 mm 0.059 inch
Knife Type Flat stock Flat stock
End Overcut 2.2 mm plus 0.15 mm 0.087 inch plus 0.006 inch
Process Type Oscillate Oscillate
Category Knife blade Knife blade

Materials and Applications

Material Category Supported Materials / Grades
Board Soft Corrugated plastic, Dispa, F Sorb, foam board, Fome Cor, Insite foam board, polyester acoustic board, Reboard, sandwich board, Xanita board
Corrugated Single Wall or Single Face A flute, B flute, C flute
Corrugated Double Wall AB flute, BC flute, BE flute, EB flute, EC flute, EE flute, FE flute
Corrugated Triple Wall EBE flute
Flexible Material Carpet, cork, ejection rubber, fiberglass, foam, gasket materials, insulation, magnetic foil, rubber, tarpaulin, Zintra
Folding Carton / Chipboard 20 pt, 32 pt, 50 pt, 85 pt
Textile Polyester coated, polyester textile

Board grades listed in industry standard point thickness.

Machine Compatibility

Brand Compatible Models / Series
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
Multicam Celero, Digital Express
CUTWORX Apex Series
Colex Flatbed cutters
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm 1.5 mm flat stock oscillating holder compatibility prior to ordering.
