Description
Description
x

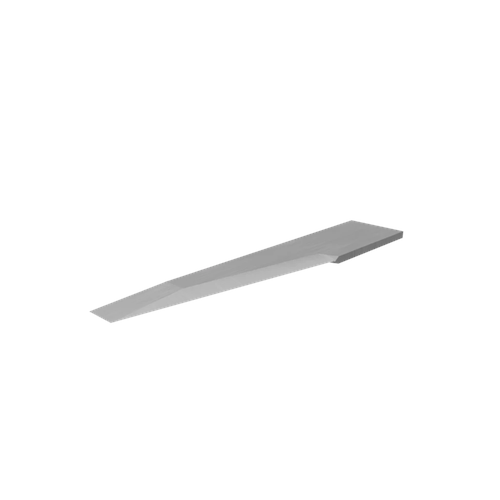

The CWT/CWX E61 is a very robust, heavy duty oscillating flat stock blade engineered for a wide range of demanding materials. With its thick 1.5 mm blade body and steep 81.5 degree geometry, the E61 delivers maximum strength, rigidity, and durability in high load cutting applications.

Featuring a 20 mm cut length, this blade is designed for deep penetration and stable oscillating performance across corrugated structures, composite materials, foam based boards, and industrial flexible substrates.

Ideal for packaging production, display fabrication, composite trimming, and heavy duty digital finishing environments requiring extended blade life and structural stability.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 81.5 degree 81.5 degree
Max Cut Length 20 mm 0.787 inch
Blade Thickness 1.5 mm 0.059 inch
Knife Type Flat stock Flat stock
End Overcut 2.2 mm plus 0.15 mm 0.087 inch plus 0.006 inch
Process Type Oscillate Oscillate
Category Knife blade Knife blade

Materials and Applications

Material Category Supported Materials / Grades
Board Soft Corrugated plastic, corrugated sandwich board, Dispa, F Sorb, foam board, Fome Cor, Insite foam board, matboard, polyester acoustic board, Reboard, sandwich board, Xanita board
Composite Aramid dry fiber, dry carbon fiber, dry glass fiber, Nomex dry fiber
Corrugated Single Wall or Single Face A flute, B flute, C flute, D flute, E flute, F flute
Corrugated Double Wall AB flute, BC flute, BE flute, EB flute, EC flute, EE flute, FE flute
Corrugated Triple Wall ABA flute, EBE flute
Flexible Material Carpet, cork, ejection rubber, fiberglass, foam, gasket materials, insulation, magnetic foil, rubber, Zintra
Folding Carton / Chipboard 20 pt, 32 pt, 50 pt, 85 pt
Leather Leather hide
Textile Felt, polyester coated

Board grades listed in industry standard point thickness.

Machine Compatibility

Brand Compatible Models / Series
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
Multicam Celero, Digital Express
CUTWORX Apex Series
Laguna SmartShop, Swift MT
Colex Flatbed cutters
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm 1.5 mm flat stock oscillating holder compatibility prior to ordering.
