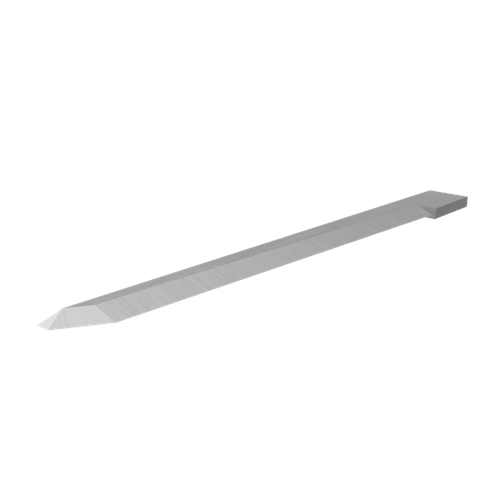

CWT/CWX E64A 1.5 mm Carbide Heavy Duty Oscillating Blade

CWT/CWX E64A 1.5 mm Carbide Heavy Duty Oscillating Blade

The CWT/CWX E64A is a very robust, heavy duty carbide oscillating flat stock blade engineered...
Vendor: Cutworx USA
SKU: CWT/CWX E64A
Product type: Knife Tools
$60.00
$60.00
Subtotal: $60.00
Ask an expert
CWT/CWX E64A 1.5 mm Carbide Heavy Duty Oscillating Blade

Cutworx USA

CWT/CWX E64A 1.5 mm Carbide Heavy Duty Oscillating Blade

$60.00
CWT/CWX E64A 1.5 mm Carbide Heavy Duty Oscillating Blade

Cutworx USA

CWT/CWX E64A 1.5 mm Carbide Heavy Duty Oscillating Blade

$60.00
Description
Description
x

The CWT/CWX E64A is a very robust, heavy duty carbide oscillating flat stock blade engineered for extreme cutting depth and durability across a wide range of materials. Designed for high load applications, this blade combines a reinforced carbide construction with extended 57 mm cut length capability.

Featuring a 60 degree plus 88 degree geometry and a 1.5 mm thick shank, the E64A provides maximum rigidity, extended wear resistance, and stable cutting performance in thick corrugated structures, structural board, composites, and industrial flexible materials.

Ideal for deep penetration cutting, heavy corrugated packaging, display fabrication, and demanding industrial digital finishing environments.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 60 degree plus 88 degree 60 degree plus 88 degree
Max Cut Length 57 mm 2.244 inch
Blade Thickness 1.5 mm 0.059 inch
Knife Type Flat stock carbide Flat stock carbide
End Overcut 3.5 mm plus 0.03 mm 0.138 inch plus 0.001 inch
Process Type Oscillate Oscillate
Category Knife blade Knife blade

Materials and Applications

Material Category Supported Materials / Grades
Board Soft Corrugated plastic, corrugated sandwich board, Dispa, F Sorb, foam board, Fome Cor, Insite foam board, matboard, polyester acoustic board, Reboard, sandwich board, Xanita board
Composite Aramid dry fiber, dry carbon fiber, dry glass fiber, Nomex dry fiber
Corrugated Single Wall or Single Face A flute, B flute, C flute, D flute, E flute, F flute
Corrugated Double Wall AB flute, BC flute, BE flute, EB flute, EC flute, EE flute, FE flute
Corrugated Triple Wall ABA flute, EBE flute
Flexible Material Carpet, cork, ejection rubber, fiberglass, foam, gasket materials, insulation, magnetic foil, rubber, Zintra
Folding Carton / Chipboard 20 pt, 32 pt, 50 pt, 85 pt
Textile Felt

Board grades listed in industry standard point thickness.

Machine Compatibility

Brand Compatible Models / Series
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
Multicam Celero, Digital Express
CUTWORX Apex Series
Laguna SmartShop, Swift MT
Colex Flatbed cutters
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm 1.5 mm flat stock carbide oscillating holder compatibility prior to ordering.
