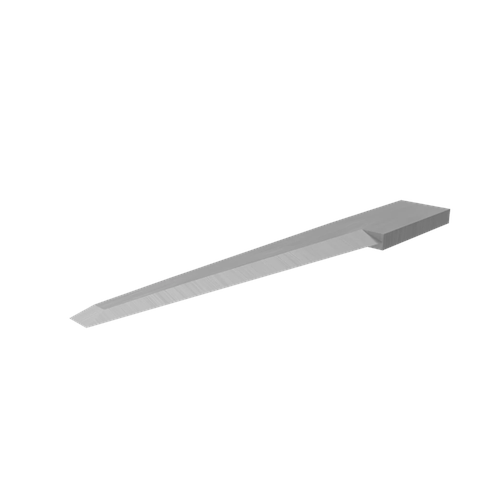

CWT/CWX E68 1.5 mm Heavy Duty Oscillating Flat Stock Blade

CWT/CWX E68 1.5 mm Heavy Duty Oscillating Flat Stock Blade

The CWT/CWX E68 is a very robust, heavy duty oscillating flat stock blade engineered for...
Vendor: Cutworx USA
SKU: CWT/CWX E68
Product type: Knife Tools
$72.50
$72.50
Subtotal: $72.50
Ask an expert
CWT/CWX E68 1.5 mm Heavy Duty Oscillating Flat Stock Blade

Cutworx USA

CWT/CWX E68 1.5 mm Heavy Duty Oscillating Flat Stock Blade

$72.50
CWT/CWX E68 1.5 mm Heavy Duty Oscillating Flat Stock Blade

Cutworx USA

CWT/CWX E68 1.5 mm Heavy Duty Oscillating Flat Stock Blade

$72.50
Description
Description
x

The CWT/CWX E68 is a very robust, heavy duty oscillating flat stock blade engineered for cutting sandwich materials, corrugated plastic, and heavy corrugated cardboard. Designed for strength and stability, the blade features reinforced geometry that delivers reliable cutting performance in thicker structural board materials.

With an 83 degree plus 5 degree cutting geometry and extended 29 mm cut length, the E68 provides excellent rigidity and penetration for demanding packaging, display, and structural board fabrication applications.

This blade is well suited for production environments processing corrugated plastics, multi wall corrugated board, and structural display materials where blade durability and clean edge quality are essential.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 83 degree plus 5 degree 83 degree plus 5 degree
Max Cut Length 29 mm 1.142 inch
Blade Thickness 1.5 mm 0.059 inch
Knife Type Flat stock Flat stock
End Overcut 1.9 mm plus 0.12 mm 0.075 inch plus 0.004 inch
Process Type Oscillate Oscillate
Category Knife blade Knife blade

Materials and Applications

Material Category Supported Materials / Grades
Board Soft Corrugated plastic, corrugated sandwich board, Dispa, F Sorb, foam board, Fome Cor, Insite foam board, matboard, polyester acoustic board, Reboard, sandwich board, Xanita board
Composite Aramid dry fiber, dry carbon fiber, dry glass fiber, Nomex dry fiber
Corrugated Single Wall or Single Face A flute, B flute, C flute, D flute, E flute, F flute
Corrugated Double Wall AB flute, BC flute, BE flute, EB flute, EC flute, EE flute, FE flute
Corrugated Triple Wall ABA flute, EBE flute

Board grades listed in industry standard point thickness.

Machine Compatibility

Brand Compatible Models / Series
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
Multicam Celero, Digital Express
CUTWORX Apex Series
Laguna SmartShop, Swift MT
Colex Flatbed cutters
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm 1.5 mm flat stock oscillating holder compatibility prior to ordering.
