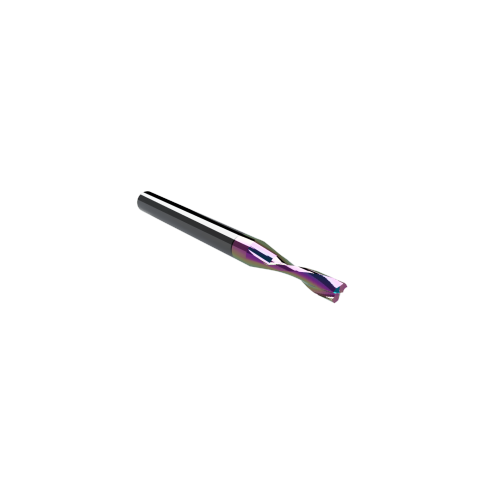

CWT/CWX ER64.5A Rainbow Coated 2-Flute Upcut Router Bit

The CWT/CWX ER64.5A router bit is engineered for precision routing of composite wood materials and laminated panels on CNC flatbed cutting systems used in signage fabrication, display production, and industrial woodworking applications. Constructed from super-grade solid carbide and enhanced with a premium rainbow coating for lubricity and tool life enhancement, this tool delivers improved wear resistance, reduced cutting friction, and extended tool life in demanding routing environments.

The two-flute right-hand spiral (upcut) geometry provides enhanced cutting stability and smoother edge finishes compared to single-flute tooling when machining wood-based composite materials and laminated surfaces. This configuration helps reduce vibration while maintaining efficient chip evacuation, making it ideal for routing printed laminate boards, veneered panels, and composite wood substrates.

Its 4 mm cutting diameter combined with an 18 mm cutting edge length (CEL) provides a balanced cutting profile suitable for profiling, slotting, and through-cut routing operations in laminated wood materials and composite panels.

Typical production applications include:

• Routing laminated MDF and plywood panels used in signage and displays

• Machining printed laminate composite boards for retail fixtures and graphics production

• Fabrication of wood-based display components and panels

• Profiling and slotting veneered plywood and MDF substrates

• Precision routing of composite wood materials used in fabrication workflows

Note: 6 mm shank router bits are designed for CUTWORX Apex Plus and Apex M Series flatbed cutters equipped with the 1.8 kW liquid cooled router spindle.

Technical Specifications

Materials and Applications

Machine Compatibility
