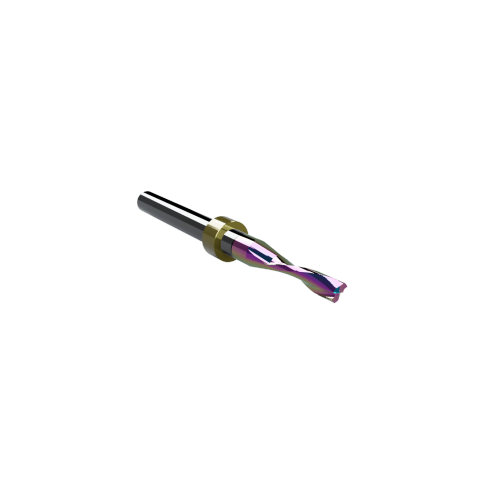

CWT/CWX ER64.5B Rainbow Coated 2-Flute Upcut Router Bit

CWT/CWX ER64.5B Rainbow Coated 2-Flute Upcut Router Bit

The CWT/CWX ER64.5B router bit with stop ring is engineered for precision routing of composite...
Vendor: Cutworx USA
SKU: CWT/CWX ER64.5B
Product type: Router Bits
$100.00
$100.00
Subtotal: $100.00
Ask an expert
CWT/CWX ER64.5B Rainbow Coated 2-Flute Upcut Router Bit

Cutworx USA

CWT/CWX ER64.5B Rainbow Coated 2-Flute Upcut Router Bit

$100.00
CWT/CWX ER64.5B Rainbow Coated 2-Flute Upcut Router Bit

Cutworx USA

CWT/CWX ER64.5B Rainbow Coated 2-Flute Upcut Router Bit

$100.00
Description
Description
x

The CWT/CWX ER64.5B router bit with stop ring is engineered for precision routing of composite wood materials and laminated panels on CNC flatbed cutting systems used in signage fabrication, display production, and industrial woodworking applications. Manufactured from super-grade solid carbide and enhanced with a premium rainbow coating for lubricity and tool life enhancement, this tool provides improved wear resistance, reduced cutting friction, and extended tool life in demanding routing environments.

The two-flute right-hand spiral (upcut) geometry offers improved cutting stability and smoother edge finishes when machining wood-based composite materials and laminated surfaces. Compared to single-flute tools, the dual-flute design provides increased rigidity and balanced cutting forces while still maintaining effective chip evacuation.

With a 4 mm cutting diameter and an 18 mm cutting edge length (CEL), this tool is well suited for profiling, slotting, and through-cut routing operations in laminated MDF, plywood, and composite wood panels.

This model also includes a precision stop ring (collar) designed to maintain consistent tool positioning when used with Zünd ARC automated routing systems and the CUTWORX Tool Changer, ensuring reliable automated tool changes and repeatable cutting performance in production environments.

Typical production applications include:

  • Routing laminated MDF and plywood panels used in signage and display production

  • Machining printed laminate composite boards for retail fixtures and graphics applications

  • Fabrication of wood-based display components and structural panels

  • Profiling and slotting veneered plywood and laminated MDF materials

  • Precision routing of composite wood substrates used in fabrication workflows

Note: 6 mm shank router bits are designed for CUTWORX Apex Plus and Apex M Series flatbed cutters equipped with the 1.8 kW liquid cooled router spindle.

Technical Specifications

Specification Metric SAE Equivalent
Flutes 2 2
Cut Type Upcut Spiral
Routing Diameter 4 mm 0.157 in
Cutting Edge Length (CEL) 18 mm 0.709 in
Maximum RPM 50,000 RPM 50,000 RPM
Shank Diameter 6 mm 0.236 in
Overall Length 64 mm 2.52 in
Coating Premium Rainbow Coating
Process Type CNC Routing / Through Cutting



Materials and Applications

Material Category Supported Materials
Wood Balsa, Birch Plywood, MDF, Poplar
Rigid Board Laminated composite wood panels, printed laminate boards



Machine Compatibility

Brand Compatible Models / Series
CUTWORX Apex Plus Series, Apex M Series
Colex SX, SXC, PX
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
Multicam Celero, Digital Express
Mimaki CFX Series
Laguna CNC router platforms
AXYZ CNC router systems
