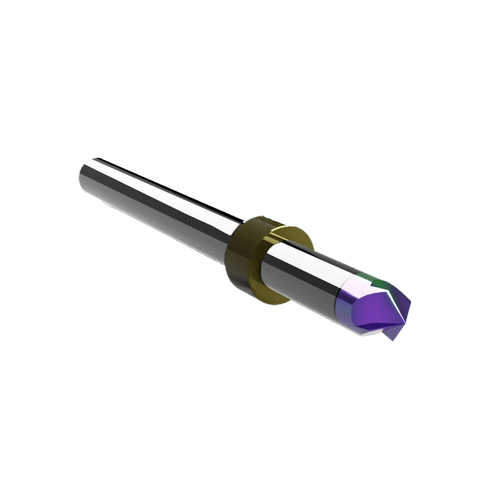

CWT/CWX ER66.9A 120° V-Groove Router Bit with Stop Ring

Cutworx USA

CWT/CWX ER66.9A 120° V-Groove Router Bit with Stop Ring

$67.50
CWT/CWX ER66.9A 120° V-Groove Router Bit with Stop Ring

Cutworx USA

CWT/CWX ER66.9A 120° V-Groove Router Bit with Stop Ring

$67.50
Description
Description
x

The CWT/CWX ER66.9A V-cut router bit is engineered for precision V-grooving and V-fold routing operations used in signage fabrication, architectural panel production, and display manufacturing. Constructed from “Super” carbide with a performance coating, the tool provides excellent durability, reduced friction, and improved wear resistance when machining composite panels, plastics, and other rigid substrates.

The bit features four flutes with 60° cutting angles that create a 120° V-cut profile, making it ideal for producing clean V-grooves used in folding aluminum composite panels (ACM) and other rigid sheet materials. The multi-flute geometry improves cutting stability and surface finish while allowing consistent V-groove formation across production runs.

With a 6 mm cutting diameter and a 1.7 mm cutting edge length (CEL), the ER66.9A is optimized for shallow, controlled V-groove cuts required for panel folding, edge forming, and structural signage fabrication.

This version includes a precision stop ring (collar) designed for accurate tool positioning when used with Zünd ARC automated routing systems and the CUTWORX Tool Changer, ensuring repeatable depth control and reliable automated tool changes in production environments.

Typical production applications include:

  • V-grooving ACM panels for folded sign cabinets

  • Routing fold lines in Dibond®, Alucobond®, and Max Metal® panels

  • Creating precision fold joints for architectural panel systems

  • Producing folded aluminum composite signage structures

  • Machining V-grooves in rigid plastics and composite boards

Note: 6 mm shank router bits are designed for CUTWORX Apex Plus and Apex M Series flatbed cutters equipped with the 1.8 kW liquid cooled router spindle.

Technical Specifications

Specification Metric SAE Equivalent
Flutes 4 4
Cut Type V-Cut
Routing Diameter 6 mm 0.236 in
Cutting Edge Length (CEL) 1.7 mm 0.067 in
V-Cut Angle 120° (60° × 2) 120°
Maximum RPM 50,000 RPM 50,000 RPM
Shank Diameter 6 mm 0.236 in
Overall Length 60 mm 2.362 in
Coating Premium coating for lubricity and tool life enhancement
Process Type CNC Routing – V-Fold



Materials and Applications

Material Category Supported Materials
Rigid Board ACM, Acrylic, Alucobond®, Dibond®, Dilite, E-Panel®, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, IGEPA Bond Premium, IGPA, Komatex®, Max Metal®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Precision Board®, Reynobond, Sign Foam®, Sintra®, Ultra Board®
Metal Aluminum, ChromaLuxe® HD Aluminum, Hard Brass
Wood Balsa, Birch Plywood, MDF, Poplar



Machine Compatibility

Brand Compatible Models / Series
CUTWORX Apex Plus Series, Apex M Series
Colex SX, SXC, PX
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
Multicam Celero, Digital Express
Mimaki CFX Series
Laguna CNC router platforms
AXYZ CNC router systems
