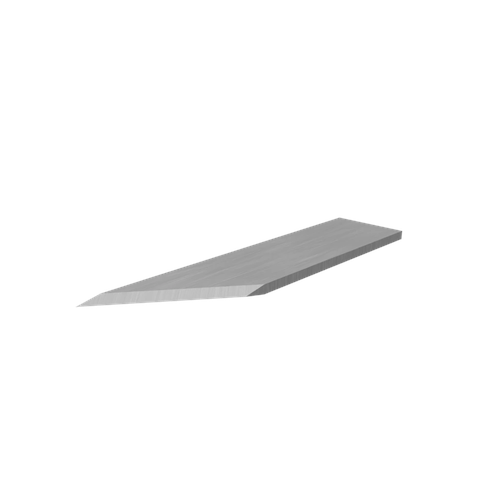

CWT E16A 0.63 mm Flat Stock Oscillating and Drag Knife Blade

CWT E16A 0.63 mm Flat Stock Oscillating and Drag Knife Blade

The CWT E16A flat stock blade is engineered for softer materials and precision cutting applications...
Vendor: Cutworx USA
SKU: E16A
Product type: Knife Tools
$36.25
$36.25
Subtotal: $36.25
Ask an expert
CWT E16A 0.63 mm Flat Stock Oscillating and Drag Knife Blade

Cutworx USA

CWT E16A 0.63 mm Flat Stock Oscillating and Drag Knife Blade

$36.25
CWT E16A 0.63 mm Flat Stock Oscillating and Drag Knife Blade

Cutworx USA

CWT E16A 0.63 mm Flat Stock Oscillating and Drag Knife Blade

$36.25
Description
Description
x

The CWT E16A flat stock blade is engineered for softer materials and precision cutting applications using both static drag knife and oscillating knife processes. Designed for digital cutting systems, this blade delivers clean edges, consistent depth control, and reliable performance across flexible, paper based, and lightweight rigid substrates.

With a 53.2 degree blade angle and 0.63 mm thickness, the E16A provides controlled penetration and smooth tracking in corrugated, folding carton, textiles, film, and soft board materials. Ideal for production environments requiring accuracy and repeatability.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 53.2 degree 53.2 degree
Max Cut Length 7.4 mm 0.291 inch
Blade Thickness 0.63 mm 0.025 inch
Knife Type Flat stock Flat stock
End Overcut 0.75 mm x Tm 0.03 inch x Tm
Process Type Knife oscillate Knife static drag
Process Category Knife blades Knife blades



Materials and Applications

Material Category Supported Materials / Grades
Corrugated E flute, F flute, G flute single wall or single face
Folding Carton / Chipboard 20 pt to 85 pt board grades
Paper 22 lb to 140 lb
Board Soft Corrugated plastic, foam board, Fome Cor, Dispa, matboard, polycarbonate sheet, styrene
Flexible Material Cork, foam, gasket materials, magnetic foil, PVC banner, rubber, tarpaulin, PTFE
Film / Vinyl Self adhesive vinyl, reflective vinyl, window perf, sandblast masking, removable wallpaper, polycarbonate film
Textile Canvas, felt, polyester textile, polypropylene, Sunbrella
Composite Prepreg carbon fiber, prepreg quartz, unidirectional carbon fiber
Leather Leather hide



Machine Compatibility

Brand Compatible Models / Series
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
CUTWORX Apex Series
Multicam Digital cutting tables
Colex Flatbed cutters
Summa F Series
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm holder type and adapter configuration for proper 0.63 mm flat stock blade fitment.
