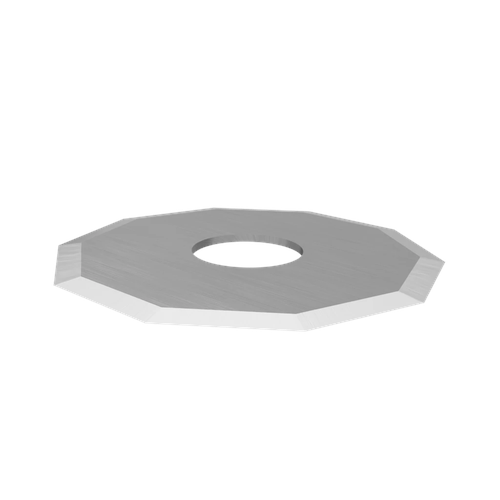

The CWT/CWX E51A is a 10-sided decagon driven rotary blade

The CWT/CWX E51A is a 10-sided decagon driven rotary blade

The CWT/CWX E51A decagon driven rotary blade is engineered for PRT (Powered Rotary Tool) cutting...
Vendor: Cutworx USA
SKU: CWT/CWX E51A
Product type: Knife Tools
$67.50
$67.50
Subtotal: $67.50
Ask an expert
The CWT/CWX E51A is a 10-sided decagon driven rotary blade

Cutworx USA

The CWT/CWX E51A is a 10-sided decagon driven rotary blade

$67.50
The CWT/CWX E51A is a 10-sided decagon driven rotary blade

Cutworx USA

The CWT/CWX E51A is a 10-sided decagon driven rotary blade

$67.50
Description
Description
x

The CWT/CWX E51A decagon driven rotary blade is engineered for PRT (Powered Rotary Tool) cutting systems used on digital flatbed cutters. The blade features a 10-sided decagon geometry, allowing multiple cutting edges that distribute wear evenly and significantly extend tool life in production environments.

Designed for driven rotary cutting applications, the E51A blade rotates mechanically within the PRT tool, allowing it to efficiently cut textiles, technical fabrics, and dry composite fibers with minimal drag or distortion. This powered rotation improves cutting consistency, especially when processing dense or layered materials.

The blade’s 28 mm wheel diameter and 0.6 mm thickness provide an ideal balance of rigidity and sharpness, allowing it to handle demanding materials such as carbon fiber fabrics, glass fiber reinforcement, aramid fibers, and industrial textiles used in aerospace, composites manufacturing, and textile production.

With a maximum cutting capability of 5 mm, the E51A blade is ideal for applications requiring precise separation of reinforcement fabrics, coated textiles, and synthetic materials while maintaining smooth cutting performance.

Typical production applications include:

  • Cutting dry carbon fiber and fiberglass fabrics

  • Processing aramid reinforcement materials such as Nomex®

  • Cutting coated and synthetic technical textiles

  • Composite layup material preparation

  • Industrial textile and fabric production

The E51A is specifically designed for PRT driven rotary knife tools, allowing controlled cutting of flexible and fibrous materials with improved durability and performance.

Technical Specifications

Specification Metric SAE Equivalent
Blade Type Decagon (10-Sided) 10-Edge Rotary Blade
Process Type Rotary Knife – Driven (PRT)
Maximum Cut Length 5 mm 0.197 in
Wheel Diameter 28 mm 1.102 in
Blade Thickness 0.6 mm 0.024 in
Knife Type Flat Stock
Process Category Knife Blades



Materials and Applications

Material Category Supported Materials
Composite Aramid Dry Fiber, Dry Carbon Fiber, Dry Glass Fiber, Nomex® Dry Fiber
Textile Aurora Textile, Berger Textile, Canvas, Dacron®, Felt, Fisher Textile, Non Woven, Nylon, Polyester Coated, Polyester Textile, Polypropylene, Poplin, Samba®, Soft Knit, Spandex®, Sunbrella, Verseidag



Machine Compatibility

Brand Compatible Models / Series
CUTWORX Apex Plus Series, Apex M Series
Colex SX, SXC, PX
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
Multicam Celero, Digital Express
Mimaki CFX Series
Laguna CNC router platforms
AXYZ CNC router systems
