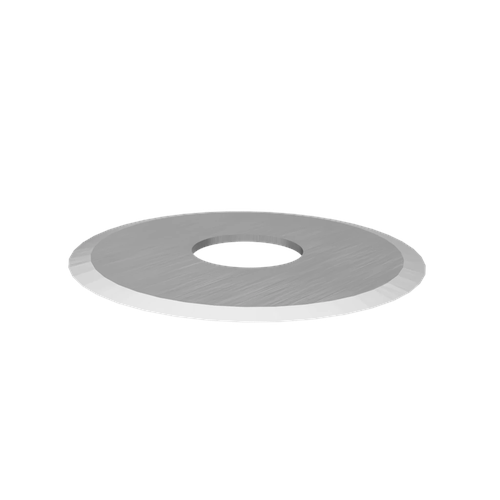

CWT/CWX E53A Driven Rotary Knife Blade

CWT/CWX E53A Driven Rotary Knife Blade

The CWT/CWX E53A driven rotary blade is engineered for high-precision cutting of single-ply flexible materials...
Vendor: Cutworx USA
SKU: CWT/CWX E53
Product type: Knife Tools
$72.50
$72.50
Subtotal: $72.50
Ask an expert
CWT/CWX E53A Driven Rotary Knife Blade

Cutworx USA

CWT/CWX E53A Driven Rotary Knife Blade

$72.50
CWT/CWX E53A Driven Rotary Knife Blade

Cutworx USA

CWT/CWX E53A Driven Rotary Knife Blade

$72.50
Description
Description
x

The CWT/CWX E53A driven rotary blade is engineered for high-precision cutting of single-ply flexible materials using powered rotary knife tools. Designed for CUTWORX Apex Series rotary tool modules, this blade delivers smooth cutting performance and consistent results when processing lightweight textiles, composite fabrics, and flexible reinforcement materials.

The blade uses a 25 mm driven rotary wheel design, allowing the cutting edge to rotate during operation. This rolling cutting motion significantly reduces drag and distortion in delicate materials, making it ideal for single-layer fabric cutting and composite reinforcement processing.

Constructed from high-strength blade steel with a 0.6 mm thickness, the E53A maintains rigidity and edge durability while providing the precision needed for cutting fine fabrics and reinforcement materials. With a maximum cutting depth of 2 mm, it is optimized specifically for single-ply materials, ensuring accurate separation without pulling or fraying fibers.

Typical production applications include:

  • Cutting single-ply technical textiles

  • Processing lightweight composite reinforcement fabrics

  • Cutting fiberglass fabrics and reinforcement materials

  • Manufacturing textile components and industrial fabrics

  • Precision cutting of coated and synthetic textile materials

The driven rotary design allows the blade to maintain consistent cutting quality across flexible materials, making it well suited for industrial textile production, composites manufacturing, and fabric processing applications.

Technical Specifications

Specification Metric SAE Equivalent
Blade Type Driven Rotary Blade
Process Type Rotary Knife
Maximum Cut Length 2 mm 0.079 in
Wheel Diameter 25 mm 0.984 in
Blade Thickness 0.6 mm 0.024 in
Knife Type Flat Stock
Process Category Knife Blades



Materials and Applications

Material Category Supported Materials
Composite Aramid Dry Fiber, Dry Carbon Fiber, Dry Glass Fiber, Nomex® Dry Fiber
Flexible Materials Fiberglass
Textile Aurora Textile, Berger Textile, Canvas, Dacron®, Felt, Fisher Textile, Non Woven, Nylon, Polyester Coated, Polyester Textile, Polypropylene, Poplin, Samba®, Soft Knit, Spandex®, Sunbrella, Verseidag



Machine Compatibility

Brand Compatible Models / Series
CUTWORX Apex Plus Series, Apex M Series
Colex SX, SXC, PX
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
Summa F Series
Multicam Celero, Digital Express
Mimaki CFX Series
Laguna CNC router platforms
AXYZ CNC router systems
