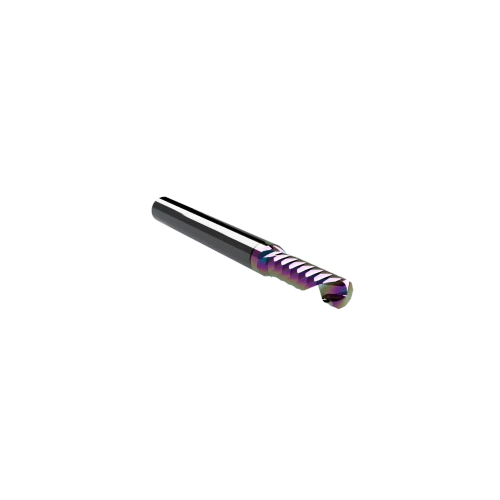

CWT/CWX ER65.1B Rainbow Coated Single O-Flute Upcut Router Bit

The CWT/CWX ER65.1B router bit is engineered for precision routing on CNC flatbed cutting systems commonly used in signage production, plastics fabrication, packaging manufacturing, and industrial machining. Constructed from super-grade solid carbide and enhanced with a multielement multilayer “rainbow” coating, this tool offers excellent wear resistance, reduced friction, and improved thermal performance during high-speed routing operations.

The polished single O-flute spiral geometry promotes efficient chip evacuation and helps minimize heat buildup when machining plastics and composite materials. Its 5 mm cutting diameter combined with a 20 mm maximum milling depth provides increased strength and stability, making it suitable for deeper routing passes and thicker materials while maintaining clean edges and accurate contours.

This router bit is widely used in production workflows for:

• Signage fabrication using acrylic, PVC, and aluminum composite materials

• Routing ACM panels including Dibond®, Alucobond®, and Reynobond

• Plastics machining for displays, retail fixtures, and packaging prototypes

• Aluminum and Chromaluxe® panel trimming and profiling

• Wood routing for MDF templates, plywood components, and fabrication parts

Note: 6 mm shank router bits are designed for CUTWORX Apex Plus and Apex M Series flatbed cutters equipped with the 1.8 kW liquid cooled router spindle.

Technical Specifications

Materials and Applications

Machine Compatibility
