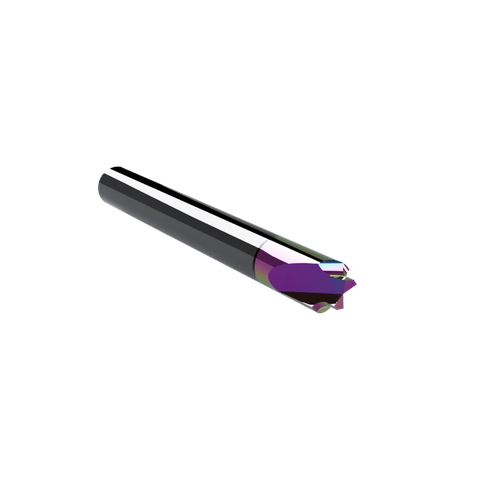

CWT/CWX ER6R4A 2 mm Radius Edge Rounding Router Bit

The CWT/CWX ER6R4A edge rounding router bit is engineered to create smooth, consistent 2 mm radius edges on rigid sheet materials commonly used in signage, fabrication, and architectural panel production. This tool is ideal for rounding sharp edges to improve safety, appearance, and finish quality on routed parts.

Manufactured from high-quality carbide, the ER6R4A provides excellent wear resistance and consistent cutting performance across plastics, composite panels, metals, and wood materials. The tool geometry is designed to remove sharp edges while maintaining dimensional accuracy, producing a clean rounded edge with minimal finishing required.

With a 6 mm cutting diameter and a maximum cutting edge length (CEL) of 2 mm, the bit produces a 2 mm corner radius while limiting the depth of cut to maintain proper geometry and edge quality. This makes it particularly well suited for finishing operations after panel routing or profiling.

Typical production applications include:

• Rounding edges on acrylic and plastic signage panels

• Finishing ACM and aluminum composite sign panels

• Edge finishing on routed architectural panels

• Softening sharp edges on display and retail fixtures

• Corner rounding on wood and composite fabrication parts

Note: 6 mm shank router bits are designed for CUTWORX Apex Plus and Apex M Series flatbed cutters with the 1.8 kW liquid cooled router spindle.

Technical Specifications

Materials and Applications

Machine Compatibility
