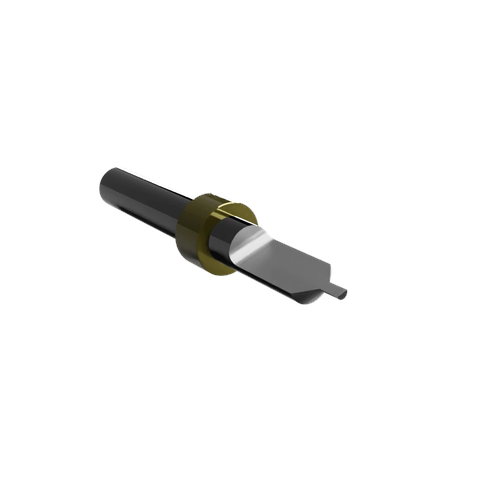

CWT/CWX ERB2 Raster® Braille Router Bit with Stop Ring

The CWT/CWX ERB2 Raster® Braille cutter bit is specifically designed for manufacturing ADA-compliant tactile signage using the Accent Signage Raster® Braille system. This specialized tool creates precisely sized holes that allow Raster® braille spheres to be inserted into rigid plastic materials, forming durable tactile characters required by accessibility standards.

Manufactured from high-quality carbide, the ERB2 is optimized for hard and rigid acrylic materials such as cast acrylic, delivering accurate hole geometry, consistent cutting performance, and extended tool life in signage production environments. The tool’s precision cutting profile ensures that braille spheres seat properly and consistently, maintaining ADA-compliant braille spacing and alignment.

The ERB2 bit supports both top-loading and bottom-loading Raster® sphere installation systems, providing flexibility for different ADA signage manufacturing workflows.

This version includes a precision stop ring (collar) designed for consistent depth control when used with Zünd ARC automated routing systems and the CUTWORX Tool Changer, ensuring repeatable braille hole production during automated machining.

Typical production applications include:

• Manufacturing ADA-compliant braille signage

• Drilling Raster® sphere holes in cast acrylic panels

• Producing architectural wayfinding and accessibility signage

• Routing precision tactile braille layouts in rigid acrylic sheets

• Fabricating interior signage for commercial buildings, hospitals, and public facilities

Compatible sheet materials include cast acrylic and similar rigid signage plastics used in ADA signage systems.

Note: 6 mm shank router bits are designed for CUTWORX Apex Plus and Apex M Series flatbed cutters equipped with the 1.8 kW liquid cooled router spindle.

Technical Specifications

Materials and Applications

Machine Compatibility
