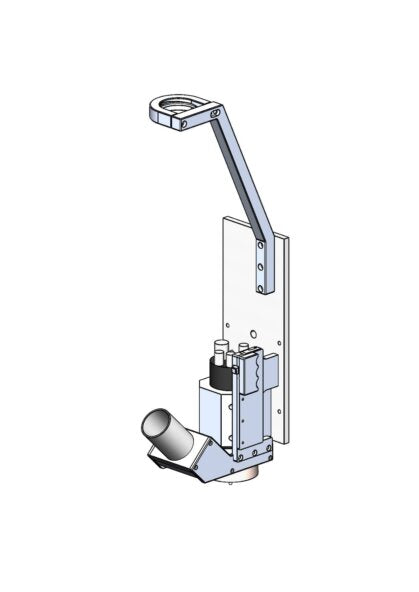

DIGI Professional Spindle – High-Speed Liquid-Cooled Routing for COMAGRAV DIGI Systems

The DIGI 2 kW spindle is built for precision milling and engraving of demanding materials. With hybrid bearings and liquid cooling via heat exchanger, it supports speeds up to 60,000 RPM for fine detailing and industrial-grade performance. Featuring ER11 clamping and UP-grade collets, it’s ideal for signage, plastics, and composite machining.

Specifications

• Power: 2 kW, 3-phase motor
• Speed: Up to 60,000 RPM (stepless via frequency converter)
• Tool Interface: ER11 standard, includes collets in 3 mm, 4 mm, and 6 mm
• Cooling: Active liquid cooling with heat exchanger
• Tooling: Includes wrenches, nuts, and one routing tool
• Suction Prep: Steel ramp and hose connection for dust collector
• Origin: Made in Germany
• Compatibility: COMAGRAV DIGI CNC machines

Dust Extraction Unit

• Power: 3 kW with 3 independent motors
• Airflow: 432 m³/h
• Hose: 40 mm diameter, 1×230 V
• Recommended for small spindles and fine-particle control

Compatible Materials

Acrylic glass – PMMA, Alucobond, Aluminium, Brass, Foam, Foamed PVC – Forex/Foamex/Simocel/Komacel, PET – Polyethyleneterephthalate, Phenolic resin, PIR, Plastic, Polycarbonate, Polyetherketone fibers – PEEK, Polyethylene – PE, Polyoxymethylene – POM, Polypropylene – PP, Polystyrene, PVC, Silon – Polyamide fiber, Stainless steel, Steel, Teflon – Polytetrafluoroethylene – PTFE, Wood and MDF

Applications

High-speed engraving, fine contour milling, profiling of signage materials, aluminum composites, and precision plastic components.
