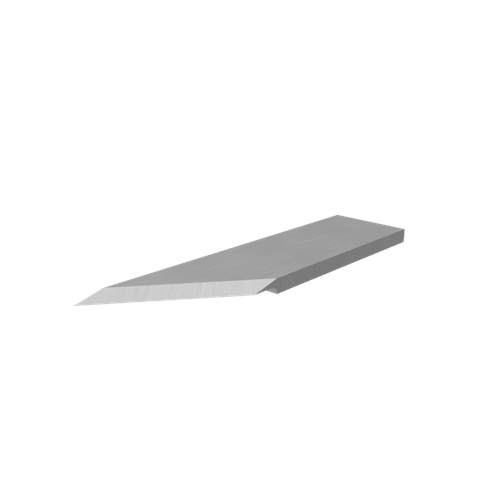

CWT/CWX E16B 0.63 mm Asymmetrical Flat Stock Oscillating and Drag Knife Blade

CWT/CWX E16B 0.63 mm Asymmetrical Flat Stock Oscillating and Drag Knife Blade

The CWT/CWX E16B flat stock blade features an asymmetrical cutting edge engineered for ridge free...
Vendor: Cutworx USA
SKU: CWT/CWX E16B
Product type: Knife Tools
$43.75
$43.75
Subtotal: $43.75
Ask an expert
CWT/CWX E16B 0.63 mm Asymmetrical Flat Stock Oscillating and Drag Knife Blade

Cutworx USA

CWT/CWX E16B 0.63 mm Asymmetrical Flat Stock Oscillating and Drag Knife Blade

$43.75
CWT/CWX E16B 0.63 mm Asymmetrical Flat Stock Oscillating and Drag Knife Blade

Cutworx USA

CWT/CWX E16B 0.63 mm Asymmetrical Flat Stock Oscillating and Drag Knife Blade

$43.75
Description
Description
x

The CWT/CWX E16B flat stock blade features an asymmetrical cutting edge engineered for ridge free inside cutting performance. Designed for both oscillating and static drag knife applications, this blade provides smoother internal corners and improved edge quality on demanding materials.

With a 53.2 degree angle and 0.63 mm thickness, the E16B delivers controlled penetration and consistent tracking across corrugated, carton, vinyl, textiles, and flexible substrates. Ideal for precision digital cutting workflows requiring clean internal geometry and repeatable results.

Technical Specifications

Specification Metric SAE Equivalent
Blade Angle 53.2 degree 53.2 degree
Max Cut Length 7.4 mm 0.291 inch
Blade Thickness 0.63 mm 0.025 inch
Knife Type Flat stock Flat stock
Cutting Edge Asymmetrical Asymmetrical
End Overcut 0.75 mm x Tm 0.03 inch x Tm
Process Type Oscillate / Drag Oscillate / Drag
Category Knife blade Knife blade

Materials and Applications

Material Category Supported Materials / Grades
Corrugated E flute, F flute, G flute single wall or single face
Folding Carton / Chipboard 20 pt, 32 pt, 50 pt, 85 pt
Paper 22 lb to 140 lb
Board Soft Corrugated plastic, Dispa, foam board, Fome Cor, Insite foam board, matboard, polycarbonate sheet, styrene
Flexible Material Cork, foam, gasket materials, magnetic foil, PTFE, PVC banner, rubber, tarpaulin
Film / Vinyl 3M vinyl, Avery Dennison vinyl, reflective vinyl, sandblast masking, removable wallpaper, self adhesive vinyl, window perf
Textile Canvas, felt, polyester coated, polyester textile, polypropylene, Sunbrella
Composite Prepreg carbon fiber, prepreg quartz, unidirectional carbon fiber
Leather Leather hide

Machine Compatibility

Brand Compatible Models / Series
Kongsberg XP, C Series
Zund G3, S3
Gerber MCT
CUTWORX Apex Series
Multicam Digital cutting tables
Colex Flatbed cutters
Summa F Series
Laguna Digital knife systems
AXYZ Knife platforms
Lectra Digital cutting systems

Confirm holder and adapter configuration to ensure proper 0.63 mm flat stock blade fitment.
