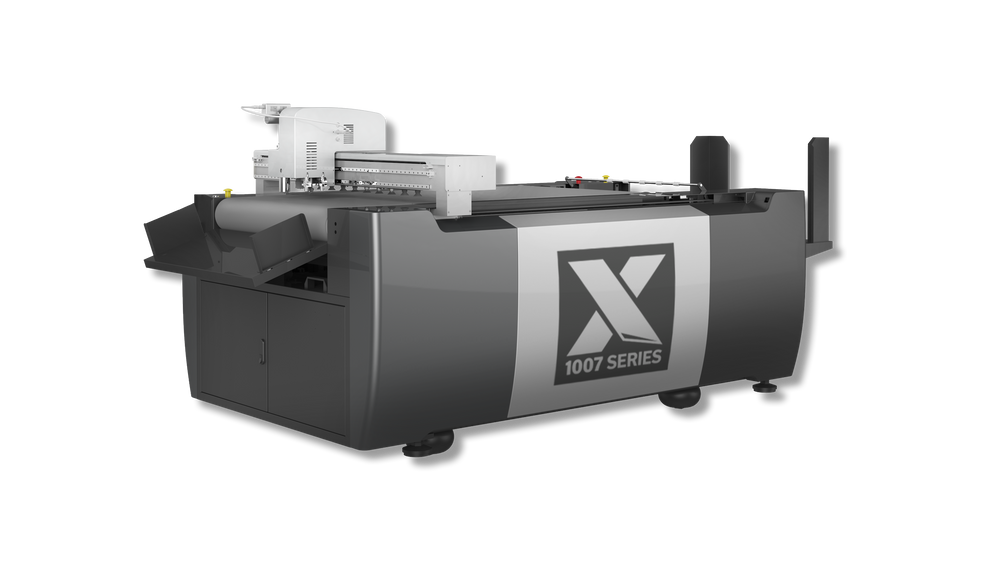

Eclipse X 1007 Digital Die Cutter

Eclipse X 1007 Digital Die Cutter

The Eclipse X 1007 Digital Die Cutter is a compact, sheet-fed flatbed finishing system built for print shops, packaging departments, sign makers, and short-run production environments. It gives shops the ability to cut, kiss cut, crease, and finish printed work without traditional cutting dies, making it ideal for prototypes, samples, custom-shaped print products, and fast-turn digital production.

With a 27.8" × 39.3" cutting area, an integrated motion control system, automated sheet feeding, CCD camera registration, and multiple vacuum zones, the Eclipse X 1007 brings production-level digital finishing into a smaller, more efficient footprint.

It is built for applications such as adhesive sheets, decals, labels, business cards, custom cards, invitations, packaging samples, tags, shelf talkers, door hangers, pocket folders, DTF film, and other specialty print products.

No Cutting Dies Required

The Eclipse X 1007 eliminates the need for traditional cutting dies on short-run and custom-shaped jobs. Operators can move directly from digital artwork to finished pieces using the included tool system.

The machine includes a complete set of tools for common print finishing applications:

• Universal Cutting Tool
• Electric Oscillating Tool
• Drag Knife
• Kiss-Cut Tool
• Creasing Wheel

Optional tools, including perforation and V-cut tooling, can expand the system for specialty finishing needs.

This tool flexibility allows shops to handle pressure-sensitive materials, reflective films, vinyl, banners, PVC, styrene, corrugated board, foam, PET, magnetic material, DTF film, and other compatible substrates.

Automatic Sheet Feeding and Conveyor Production

The Eclipse X 1007 is designed for continuous sheet-fed production. Its automated conveyor system brings feeding, cutting, and collection into one connected workflow, helping reduce manual handling and improve throughput.

The automatic height-adjusting table supports material stacks up to 15.5" tall, and the brochure notes the ability to place two stacks of 13" × 19" sheets side by side for increased production time. This makes the 1007 especially useful for digital print environments running repeated short-run jobs, sample batches, and multi-up sheet layouts.

The system also includes a heavy-duty loading capacity listed at 15.5" or 573 lbs, helping shops keep production moving with fewer interruptions.

CCD Registration and Precise Positioning

The Eclipse X 1007 uses a high-precision CCD camera system to detect registration marks and align cut paths to printed graphics. This helps compensate for common print distortion and supports accurate contour cutting on digitally printed sheets.

The system is built for repeatable accuracy, with the brochure listing cutting precision at ±0.1 mm / .004 in. Optical auto tool calibration helps control cutting depth accuracy through automatic knife initialization.

Vacuum Hold-Down and Material Control

The Eclipse X 1007 uses 2 vacuum pumps and 3 vacuum zones to hold material securely during cutting. Multiple vacuum zones help improve material stability and allow the operator to control hold-down based on the sheet size and application.

The precision aluminum table and motion control system are designed to support clean, consistent finishing across different digital print and packaging workflows.

Software and File Integration

The Eclipse X Series is supported by CutterServer software, which helps manage the cutting process and keeps production smooth and consistent.

Supported file formats listed in the brochure include:

• PDF
• AI
• DXF
• PLT
• HP-GL
• BRG
• XML
• CUT
• ISO
• PS
• EPS
• TSK
• OXF

The Eclipse X 1007 can fit into workflows using common design, packaging, RIP, and print production software. Optional QR code management can support automated job switching and more efficient variable-job production.

Optional Roll-Feed Attachment

The Eclipse X 1007 can be equipped with a roll-feed attachment for roll-fed production. This expands the system beyond sheet-fed finishing and makes it useful for labels, decals, DTF film, adhesive graphics, and other roll-based materials.

This gives shops a flexible system that can support both sheet-fed and roll-fed digital finishing workflows.

Key Features

• Compact sheet-fed digital die cutting system
• Die-free cutting, kiss cutting, creasing, and finishing
• 27.8" × 39.3" cutting area
• 114" × 55" × 47" machine size
• 2 vacuum pumps and 3 vacuum zones
• Maximum cutting speed up to 1200 mm/s / 47 in/s
• Cutting precision listed at ±0.1 mm / .004 in
• Maximum cutting thickness listed at 16 mm / .63 in
• Automated conveyor system for continuous production
• Automatic height-adjusting table
• CCD camera registration for printed mark detection
• Optical auto tool calibration
• Dual 13" × 19" sheet-feed capability
• Roll-feed attachment included as an option in the brochure
• Ships fully assembled
• Single phase 220V, 32 amp power requirement
• Parts and supplies stocked through Cutworx USA in Irving, Texas

Integrated Tools

The Eclipse X 1007 includes the core tools needed for most digital print finishing applications:

Optional tooling can expand the system for perforation, V-cutting, and specialty applications.

Applications

The Eclipse X 1007 is built for a wide range of print, packaging, sign, and specialty finishing applications, including:

• Custom contour shapes
• Stickers
• Labels
• Decals
• Door hangers
• Soft signage
• Packaging samples
• Shelf talkers
• Yard signs
• Tags
• Pocket folders
• ID badges
• Parking hangers
• Bookmarks
• Envelopes
• DTF film
• Prototyping
• Short-run packaging
• Digital print finishing
• Trade die cutting support
• Custom applications

Productivity You Can Depend On

The Eclipse X 1007 helps shops bring more finishing work in-house while reducing the delays, costs, and limitations of traditional die-based production.

Increase capacity and output so your shop can take on more jobs.
Improve cutting speed, accuracy, and production consistency.
Build confidence with repeatable output day after day.
Decrease labor costs and manual finishing time.
Remove bottlenecks from the finishing stage.

Eclipse X 1007 Specifications
