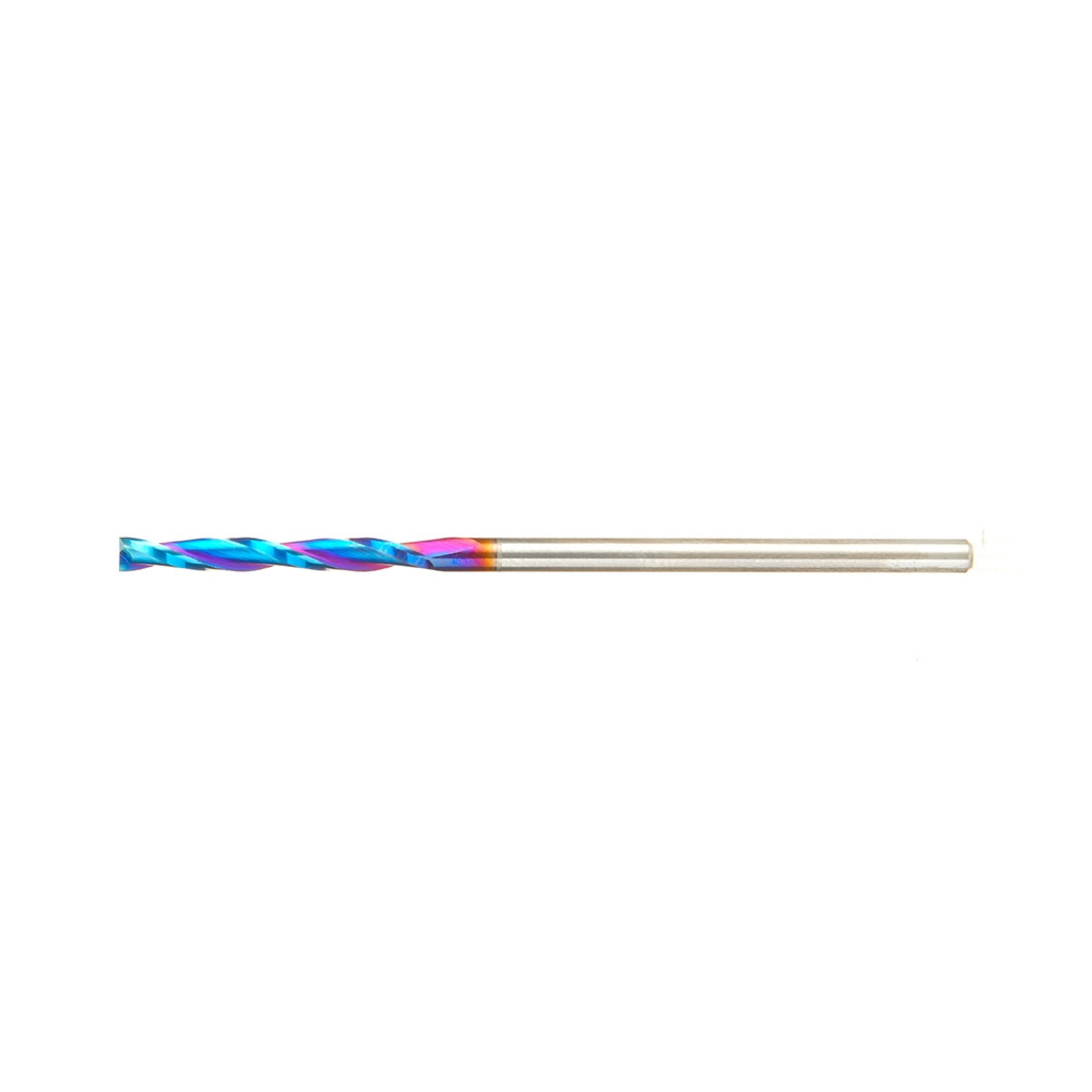

ER1-C Double Flute Coated Up Cutting Router Bit (1" Cutting Depth)

ER1-C Single Flute Up Cutting Router Bit (1" Cutting Depth)

Compatible Spindles: 350w NSK, 450w Sycotec
Max RPM: 60000

Shank: 3.175 mm (1/8")
Cutting Diameter (CED): 3.175 mm (1/8")
Cutting Length (CEL): 25.4 mm (1")
Overall Length: 76.2 mm (3")
Flute: 1
Cut Type: Flat Bottom
Rotation: Upcut

The CWT CWX ER1-C router bit is a new addition to the ER1 series, engineered specifically for extended reach applications on 350w and 450w high speed spindles. Designed to deliver precision and clean material evacuation, this tool provides consistent performance in foam and light composite materials.

Suitable Materials:

Foam Materials:
Crosslinked Polyethylene Foam (XLPE)
Ethafoam
Ethylene-vinyl Acetate Foam (EVA)
Expanded Polypropylene (EPP)
Expanded Polystyrene (EPS)
Extruded Polystyrene Foam (XPS)
Flexible Polyurethane Foam (FPF)
Polyethylene (PE) Foam
Polyurethane Foam

Sign and Display Boards:
Fomex
High Density Urethane (HDU Board)
PALFOAM
Polylam

Other Materials:
Cork
