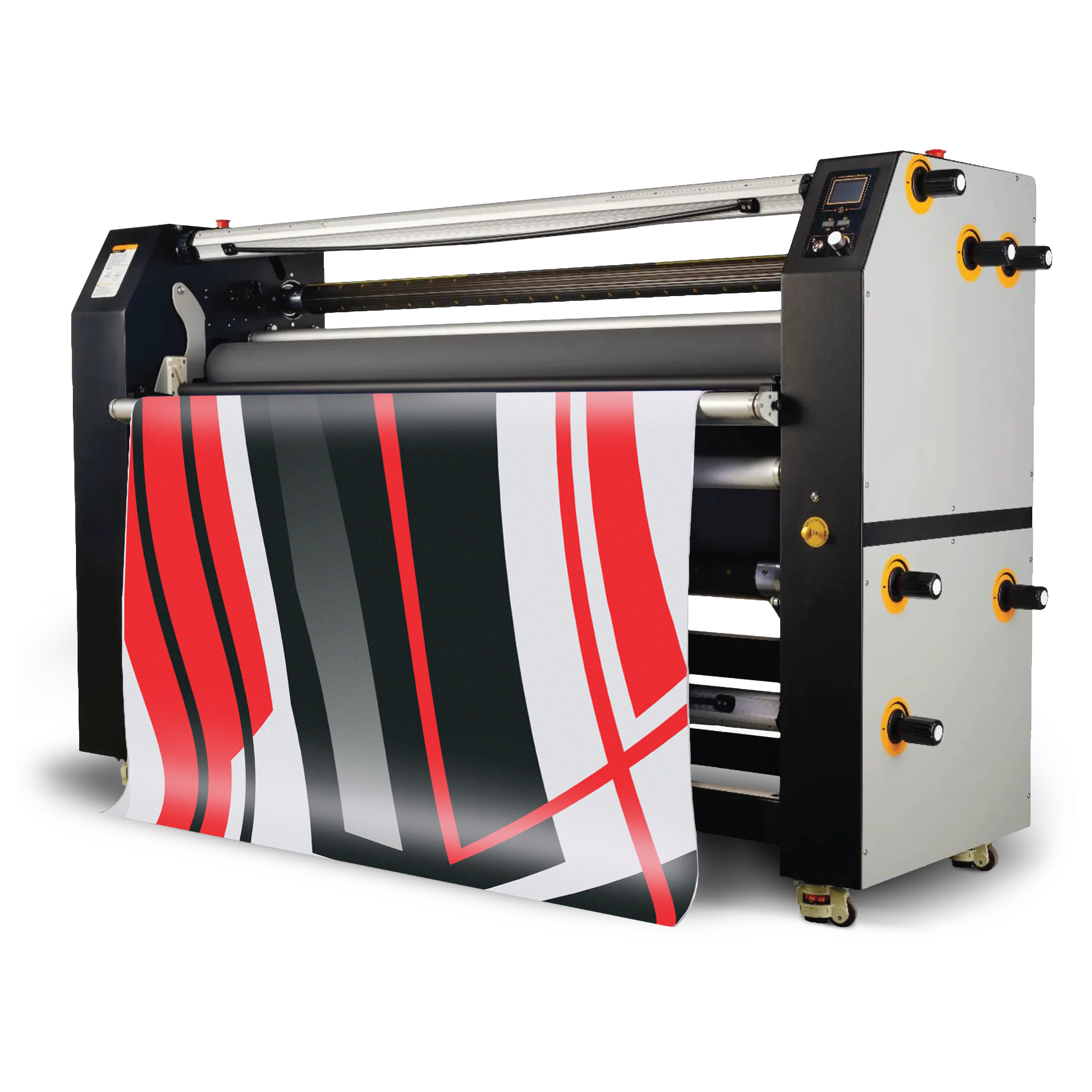

Exclusive B&C Graphics Pro1700 Heat‑Assisted Laminator

The Pro1700 Heat‑Assisted Laminator from B&C Graphics is a high‑performance, wide‑format finishing system engineered for demanding signage, packaging, and display production environments. Built for speed, accuracy, and operator efficiency, the Pro1700 combines SMART monitoring, integrated vertical slitters, and ergonomic swing‑in/out air shafts to deliver consistent, high‑quality lamination at scale.

With a 64‑inch working width, heavy‑duty frame, and precision silicon rollers, this laminator is designed for shops that require reliable throughput and clean, professional results across a wide range of materials.

Key Features & Benefits

SMART Monitoring System

• Real‑time tracking of temperature, speed, and lamination performance
• Ensures consistent, repeatable output across long production runs

Vertical Slitters + Rear Pneumatic Cutting Bar

• Integrated trimming system for inline finishing
• Adjustable tungsten steel blade holders rated for 15,000+ meters of precision cutting
• Reduces manual trimming and speeds up workflow

Swing‑In/Out Air Shafts

• Pneumatic expansion for fast, ergonomic roll changes
• Ideal for high‑volume environments with frequent material swaps

Dual Control Panels (Front & Rear)

• Intuitive digital displays
• Key operational data visible from both sides of the machine
• Streamlined operator workflow

Durable Frame & Silicon Rollers

• Heavy‑duty construction for long‑term stability
• 130mm glue‑free silicon rollers for smooth, accurate lamination

Air Bladder Mandrels

• Pneumatic unwind mandrels for secure roll handling
• Maintains consistent tension and reduces material waste

Max Lamination Width: 64 in
Max Lamination Thickness: 1.1 in
Roller Type: Silicon
Roller Diameter: 130 mm
Max Speed: 40 ft/min
Trimmer Holders: 2 single holders + 1 double central blade
Air Shafts: 2 winder shafts + 1 rewinder shaft (swing‑in/out)
Heating System: Top heat‑assisted
Maximum Temperature: 140°F
Power Consumption: 2000W
Machine Weight: 772 lbs
Machine Dimensions (L×W×H): 2260 × 900 × 1530 mm

Ideal Applications

• Wide‑format signage and POP displays
• Packaging prototypes and short‑run finishing
• Trade show graphics and retail installations
• High‑speed lamination with integrated trimming
• Mounting, encapsulation, and protective overlamination

Why Choose the Pro1700‑F1?

The Pro1700‑F1 is built for professionals who demand reliability, speed, and precision. Whether you’re running a high‑volume production shop or scaling your finishing capabilities, this laminator delivers the performance, durability, and workflow efficiency required in modern print environments.
