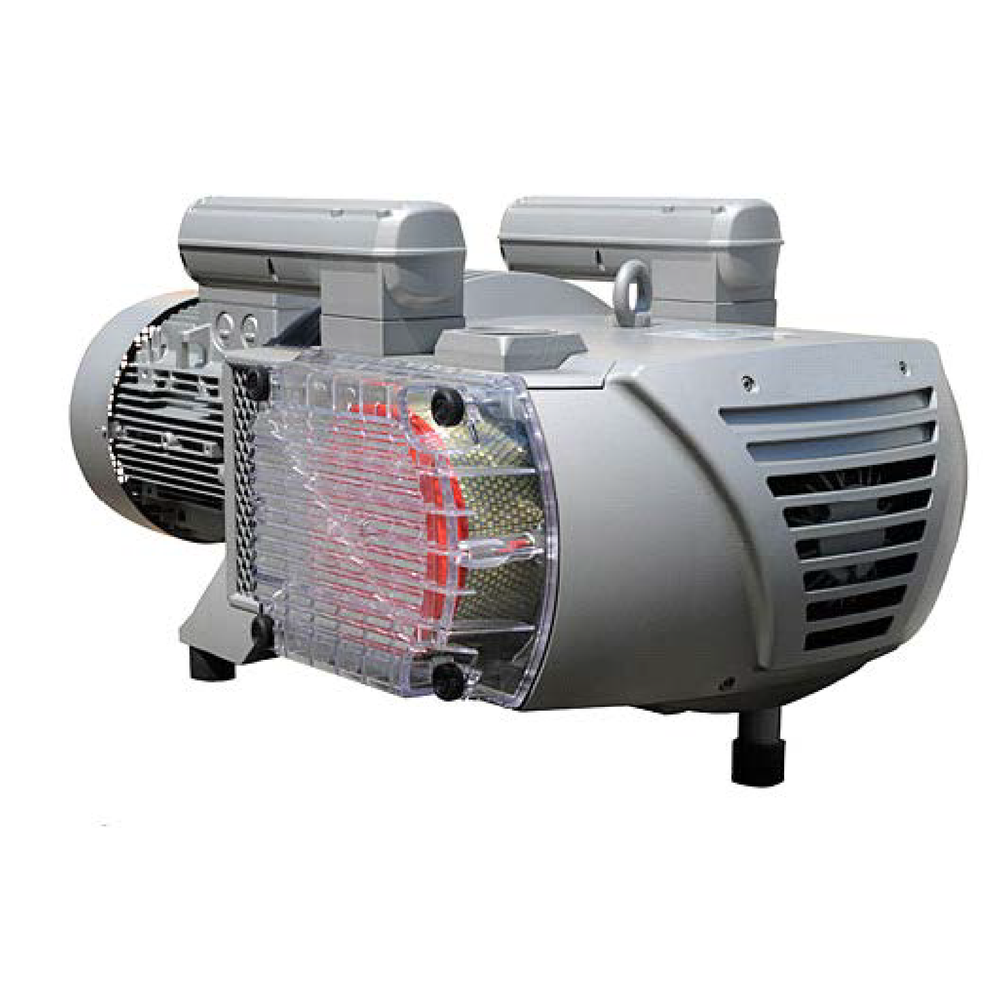

High-Pressure Vacuum Pump – 250 m³/h Oil-Free Extraction for COMAGRAV NOTUS

Powerful, professional, and engineered for continuous-duty CNC performance, the Becker high-pressure vacuum pump delivers up to 250 m³/h airflow using a compact 5.5 kW oil-free motor. Ideal for the NOTUS 2030 and NOTUS PLUS 3000/4000 models (two units required for NOTUS PLUS 6000), it achieves a maximum vacuum of –0.8 bar with 200 mbar absolute pressure, ensuring strong hold-down for demanding routing and cutting tasks.

The integrated kit includes a vacuum hose with fixtures, analog gauge for live pressure feedback, motor protection switch, and operator panel switch or footswitch for flexible control. With whisper-quiet operation and maintenance-free design, it’s the go-to solution for high-efficiency vacuum needs across signage, packaging, and composite workflows.

Key Features

• 🌪️ Airflow: Up to 250 m³/h for aggressive material hold-down
• ⚡ Motor: Oil-free 5.5 kW, 3-phase power supply
• 📉 Max Vacuum: –0.8 bar / 200 mbar abs.
• 🧰 Includes hose fixtures, analog gauge, protection switch, operator controls
• 🛠️ Compatible with NOTUS 2030, PLUS 3000/4000, (2x for PLUS 6000)
• 🔧 Maintenance-free side channel blower for continuous operation

Applications

• Flatbed CNC routing with high vacuum requirements
• Processing of rigid and semi-flexible substrates
• Packaging, signage, and architectural panels
• Multi-module finishing systems needing robust hold-down
