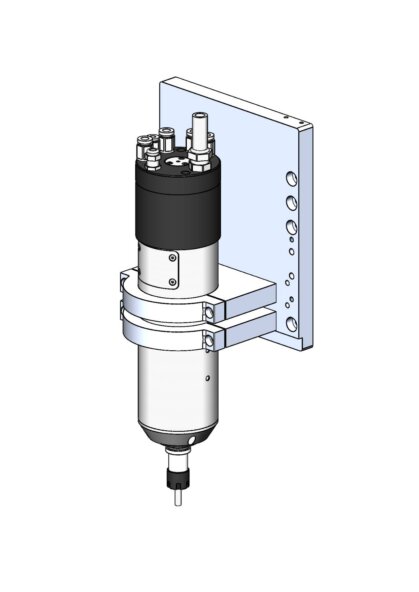

MISTRAL SERVO ATC Spindle – 3.6 kW HSK-E25 High-Speed Routing System


Product SKU:


This liquid-cooled HSD spindle from COMAGRAV’s MISTRAL SERVO line delivers high-frequency precision cutting at up to 40,000 RPM, ideal for plastics, composites, and engineered materials. Its ceramic bearings and pneumatic HSK-E25 tool clamping ensure durability and fast tool changes, while the covered automatic tool tray enhances workflow speed and cleanliness.

Specifications

  • Power: 3.0 kW (S1) / 3.6 kW (S6)
  • Speed: Up to 40,000 RPM, stepless via frequency converter
  • Tooling: HSK-E25 holders with ER16 UP-grade collets (4 holders included)
  • Magazine: Covered 6-tool linear tray with automatic opening
  • Cooling: Active liquid flow system
  • Air Requirement: Requires dry, clean compressed air

Compatible Materials
Acrylic glass – PMMA, Alucobond, Aluminium, Brass, Foam, Foamed PVC – Forex/Foamex/Simocel/Komacel, PET – Polyethyleneterephthalate, Phenolic resin, PIR, Plastic, Polycarbonate, Polyetherketone fibers – PEEK, Polyethylene – PE, Polyoxymethylene – POM, Polypropylene – PP, Polystyrene, PVC, Silon – Polyamide fiber, Stainless steel, Steel, Teflon – Polytetrafluoroethylene – PTFE, Wood and MDF

Applications
Fast, accurate CNC routing of plastics, metals, rigid boards, and composite substrates in signage, packaging, and industrial machining environments.
