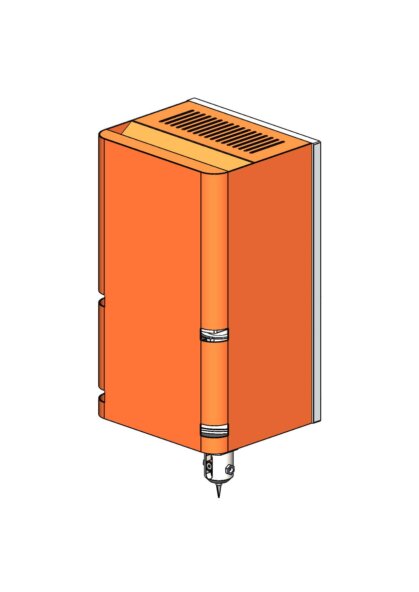

Pneumatic Oscillating Tool (POT)
Product SKU:
The COMAGRAV POT is a high-performance solution designed for precision cutting across a wide range of materials. Powered by clean compressed air at 6 bar, it delivers an 8 mm oscillation stroke at 9,000 strokes per minute, enabling efficient operation in demanding production environments.
Compatible Materials
- Rubber, PVC, Re-board, Gaskets
- Heavy and lightweight foams (cuts up to 100 mm thick)
- Leather, textiles, paper-based boards, and more
Key Features
- Industrial-grade build for reliable continuous use
- Carbide knife blades for extended lifespan
- Knife length options from 6 mm to 115 mm
- Optional pressure foot minimizes material lift and boosts cutting speed
- Compatible with COMAGRAV DIGI, DIGI CORSA, NOTUS, and NOTUS PLUS
Recommended Setup
Install a vacuum table and pump (also used for milling), along with a specialized cutting pad to stabilize materials during operation and optimize output quality.
