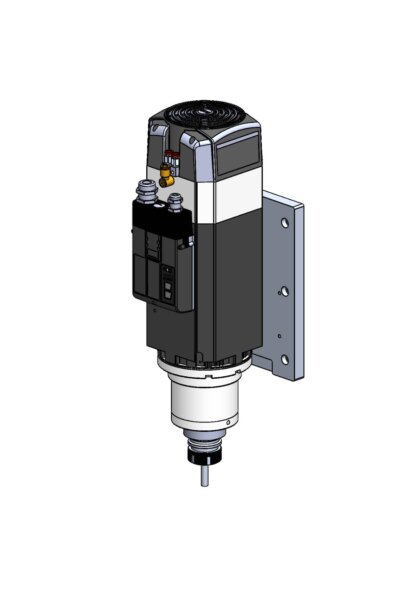

Professional Routing Spindle – High-Power ISO30 CNC Routing with 13.2 kW Output
Product SKU:
The COMAGRAV professional routing spindle is a precision-engineered solution for industrial CNC routing. Designed for demanding materials and continuous operation, this HSD aluminium/plastics spindle features ceramic bearings and delivers up to 24,000 RPM with stepless regulation via a frequency converter.
Specifications and Features
- Power: 11 kW (S1) / 13.2 kW (S6)
- Speed: Up to 24,000 RPM, adjustable via frequency converter
- Clamping: ISO30 pneumatic tool clamping
- Tool Interface: Compatible with ER32 collets (4 holders included)
- Magazine: Linear magazine for 8 tools + keys and collets
- Cooling: Integrated electric fan cooling
- Air Requirement: Requires dry, clean compressed air
Compatible Materials
Acrylic glass – PMMA, Alucobond, Aluminium, Brass, Foam, Foamed PVC – Forex/Foamex/Simocel/Komacel, PET – Polyethyleneterephthalate, Phenolic resin, PIR, Plastic, Polycarbonate, Polyetherketone fibers – PEEK, Polyethylene – PE, Polyoxymethylene – POM, Polypropylene – PP, Polystyrene, PVC, Silon – Polyamide fiber, Stainless steel, Steel, Teflon – Polytetrafluoroethylene – PTFE, Wood and MDF
Applications
Precision cutting, routing, profiling, and slotting across rigid plastics, non-ferrous metals, composites, and engineered boards.
