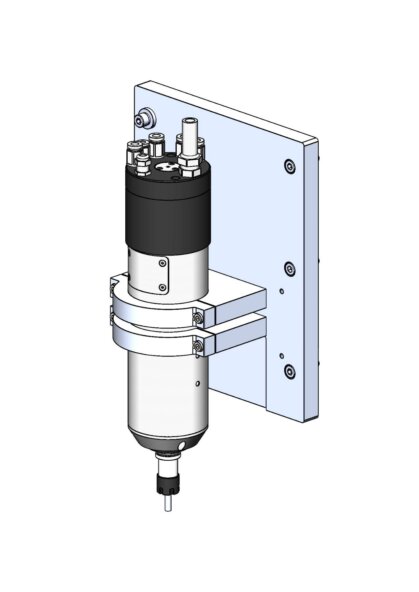

Professional Routing Spindle – 3.6 kW, 50,000 RPM with Automatic Tool Exchange for DIGI CORSA
Product SKU:
This liquid-cooled, high-frequency spindle is engineered for precision CNC routing across plastics, composites, and metals. Delivering speeds up to 50,000 RPM, it features HSK-E25 pneumatic tool clamping, ceramic bearings, and Ultra Precise ER16 collets for clean, high-speed machining. Integrated spray cooling and dust management make it ideal for aluminium and multi-material workflows.
Key Specifications
- Power: 3.0 kW (S1) / 3.6 kW (S6)
- Speed: Up to 50,000 RPM, regulated via frequency converter
- Clamping: HSK-E25 holders with ER16 UP-grade collets
- Tool Magazine: 8-position automatic tray with covered enclosure
- Cooling: Liquid flow cooling with active system
- Aluminium Support: Built-in spray cooling linked to suction
- Extraction: Dust collector (3 motors) + cyclone unit with auto parking
- Air Requirement: Needs dry, clean compressed air
Compatible Materials
Acrylic glass – PMMA, Alucobond, Aluminium, Brass, Foam, Foamed PVC – Forex/Foamex/Simocel/Komacel, PET – Polyethyleneterephthalate, Phenolic resin, PIR, Plastic, Polycarbonate, Polyetherketone fibers – PEEK, Polyethylene – PE, Polyoxymethylene – POM, Polypropylene – PP, Polystyrene, PVC, Silon – Polyamide fiber, Stainless steel, Steel, Teflon – PTFE, Wood and MDF
Applications
High-speed profiling, contour milling, and multi-material routing in signage, packaging, aluminum processing, and engineered substrates.
