SCAN COMAC 1 – 3D Touch Scanning Probe for COMAGRAV Systems

SCAN COMAC 1 – 3D Touch Scanning Probe for COMAGRAV Systems

Product SKU:

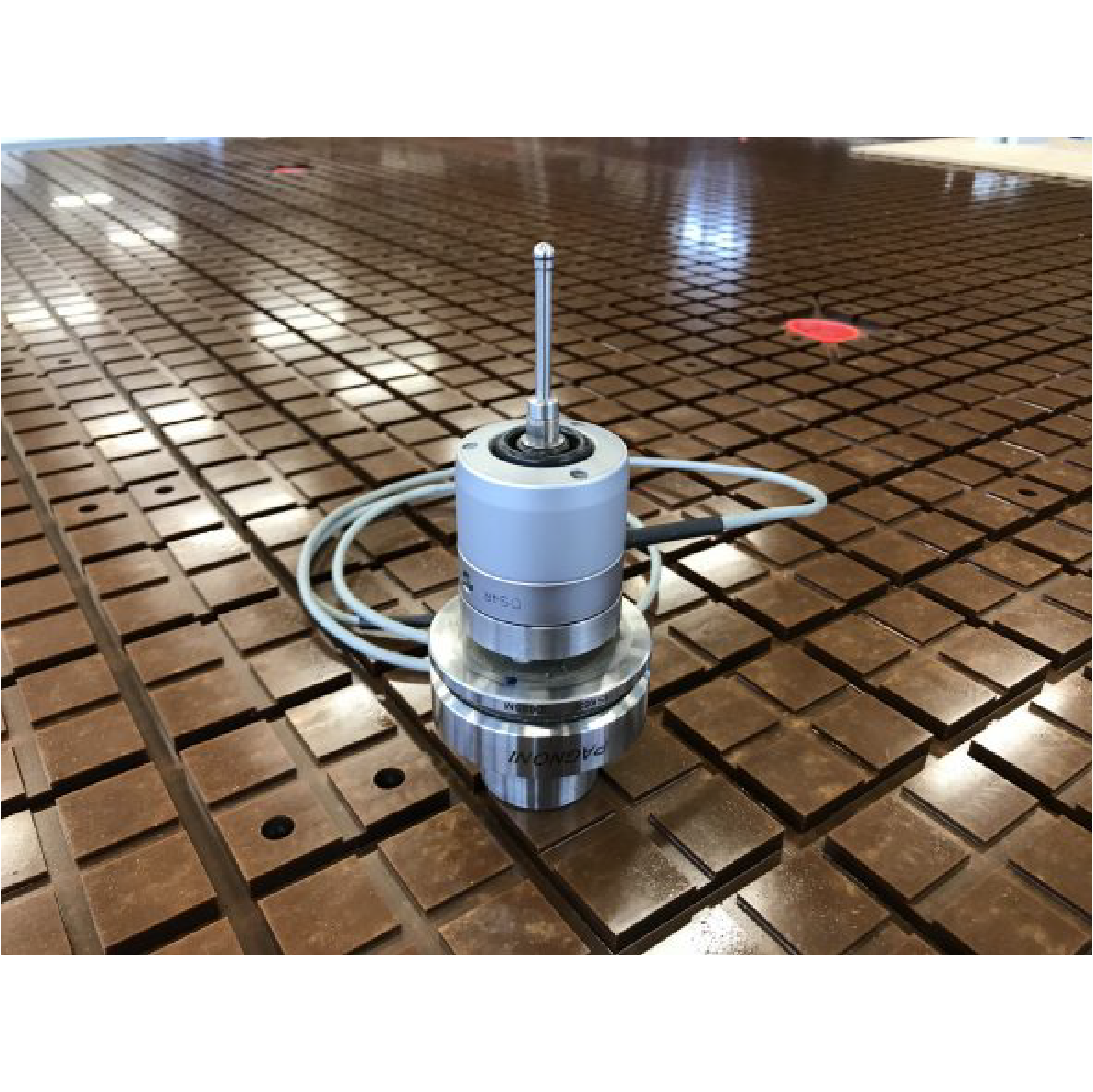

The SCAN COMAC 1 is a high-precision 3D mechanical scanner designed for tactile measurement and digitization of physical objects on COMAGRAV CNC platforms. Using a contact-based approach, the scanner’s 4 mm ball-tip probe captures detailed surface contours by touching the material in a pre-defined raster—ideal for replicating complex forms, engraving templates, or reverse engineering.

Integrated with COMAGRAV’s PILOT control system, SCAN COMAC 1 outputs data in ASCII or DXF format for seamless post-processing. The full package includes the touch probe, scanner software, and fine-detail tip—all compatible with modern COMAGRAV machines across signage, modeling, and routing applications.

Key Features

  • 🧲 4 mm ball-tip probe for fine-detail surface scanning
  • 📐 Contact-based raster measurement system
  • 🧠 Includes full software suite with PILOT system integration
  • 💾 Data output in ASCII or DXF formats
  • 🔗 Compatible with all current COMAGRAV CNC platforms
  • 📦 Includes probe, software module, and tip

Applications

  • Reverse engineering of objects and tooling
  • Digitization of reliefs, engravings, and prototypes
  • 3D layout generation for machining or routing
  • Scan-to-CAD workflows in sign and design environments
