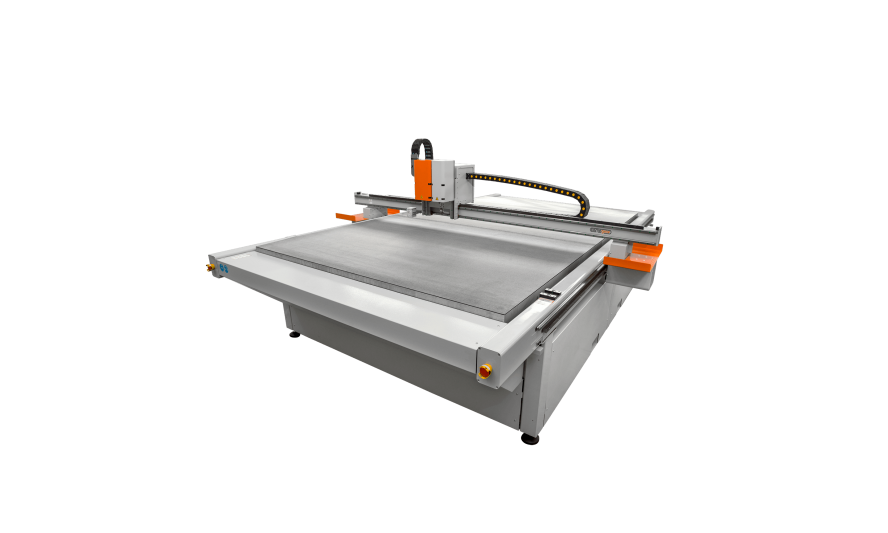

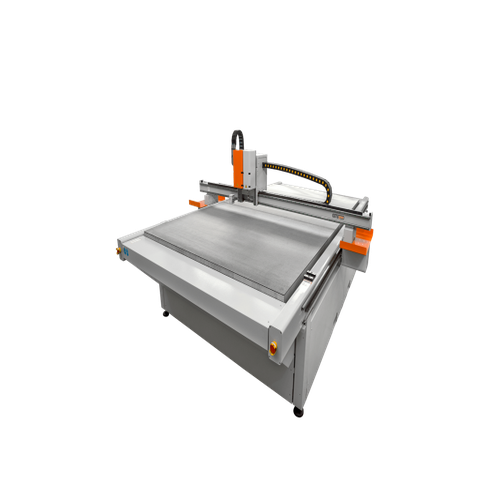

The COMAGRAV Digi is a multifunctional CNC flatbed cutter engineered for cutting, routing, creasing, and engraving a wide range of materials. Designed for industrial workflows, it features servo-driven motion control, interchangeable tool modules, and a robust vacuum table. Digi systems are available in custom sizes and support roll-to-roll automation via RC models.
Feature Highlights:
- Dual-Module Tool Head: Supports oscillating knives (electric/pneumatic), drag knives, creasing wheels, motorized cutting discs, and pen tools
- Routing Spindle Options:
- 730 W / 24,000 RPM (air-cooled)
- 2 kW / 60,000 RPM (liquid-cooled)
- Camera System: Standard on all models; detects registration marks and QR/barcodes for automated file loading
- Vacuum Table: Cast aluminum base with up to 6 software-controlled zones; optional conveyor for roll-fed workflows
- Control System: PILOT Advanced controller with Windows 10 IoT PC and preset material libraries
- Modular Architecture: Interchangeable modules allow future upgrades and tool expansion
- Dust & Cooling: Integrated cyclone dust collector with spray cooling for aluminum and Dibond
- Roll Automation: RC models include conveyor belt and unwinder for continuous cutting of printed rolls
Applications:
Industry |
Use Cases |
---|---|
Signage |
Acrylic, aluminum composite, vinyl, banners, printed board cutting |
Packaging |
Corrugated, carton, foam, pre-pregs, prototyping |
Textiles |
Woven and non-woven fabrics, technical materials |
Industrial Parts |
Gaskets, rubber, composites, aluminum panels |
POP/POS Displays |
Cardboard, sandwich boards, exhibition graphics |
Design & Prototyping |
Wood, MDF, plastics, and composite modeling |
Table Size Options:
Model |
Working Area (mm) |
Working Area (inches) |
---|---|---|
Digi 1715 RC |
1700 × 1500 |
66.9 × 59.1 |
Digi 1725 RC |
1700 × 2500 |
66.9 × 98.4 |
Digi 2034 RC |
2000 × 3400 |
78.7 × 133.9 |
Digi 2534 RC |
2500 × 3400 |
98.4 × 133.9 |
Digi 3430 RC |
3400 × 3000 |
133.9 × 118.1 |
Digi 3450 RC |
3400 × 5000 |
133.9 × 196.9 |
Digi Custom |
Available on request |
Custom sizes |
Technical Specifications:
Specification |
Value |
---|---|
Max Feed Rate |
1150 mm/s (≈ 2,717 ipm) |
Max Acceleration |
5000 mm/s² |
Resolution |
0.00078 mm |
Max Cutting Height |
60 mm |
Max Routing Height |
80 mm |
Z Axis Travel |
130–150 mm (model-dependent) |
Clearance Under Gantry |
80–85 mm |
Spindle Power Options |
730 W or 2 kW |
Max Spindle Speed |
Up to 60,000 RPM |
ATC Magazine |
Up to 8 tools (covered tray) |
Tool Holders |
HSK E25 collets, ER-16 (1–10 mm) |
Vacuum Zones |
Up to 6 (software-switched) |
Vacuum Power |
Up to 5.5 kW |
Control System |
PILOT Advanced + Windows 10 IoT PC |
Machine Weight |
Up to 2400 kg (Digi 2134 RC) |
Power Supply |
3×400 VAC / 50 Hz / 16 A |
