Comagrav Eco
The COMAGRAV Eco is a compact, cost-effective CNC router designed for cutting and milling operations...
Call For Availability
Call Jensen @ 469-758-2288 or email Sales@cutworxusa.com
Vendor:
Comagrav
Product type:
Industrial CNC Routers
Description

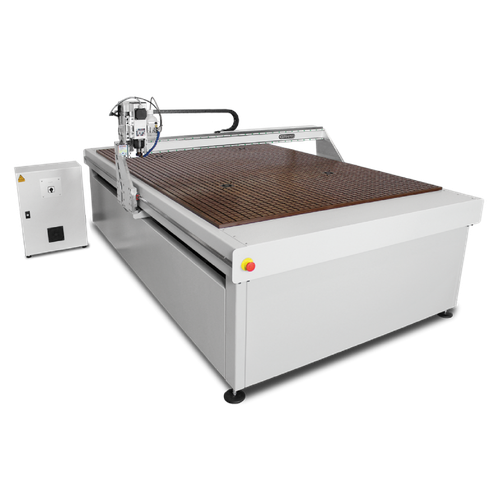

xThe COMAGRAV Eco is a compact, cost-effective CNC router designed for cutting and milling operations across plastics, aluminum, wood, and composites. Engineered with a prefabricated steel frame and powered by microstep motors, it delivers reliable performance and precision in small to mid-scale production environments. Its smart mechanical design minimizes vibration and material waste, making it an environmentally conscious choice for signmakers and fabricators.
Feature Highlights:
- Drive System: Microstep motors with rack & pinion and planetary gearboxes (XY); ballscrew for Z-axis
- Spindle Power: Professional electrospindle rated at 2 kW, with speeds from 1,000 to 24,000 RPM
- Tool Handling: Manual tool change with ER20 collets (1.0–13.0 mm); automatic Z sensor for tool length measurement
- Worktable Options:
- Phenolic resin vacuum table with 2.4 kW Becker pump (67 m³/h, 100 mbar)
- Aluminum T-slot table for manual clamping
- Control System: PILOT CNC controller with Windows 7/8/10 compatibility; optional DELL PC with Windows 10 IoT
- Software Compatibility: Supports HP-GL, G-code, and RIP workflows (Onyx, Caldera, Flexi, etc.)
- Optional Add-ons: HD camera system, spray cooling for aluminum, dust collector, standalone operator panel
Applications:
|
Industry |
Use Cases |
|---|---|
|
Signage |
Acrylic, aluminum composite, PVC, foamboard, engraving |
|
Packaging |
Nesting operations, prototyping, foam and corrugated cutting |
|
Plastics & Composites |
PMMA, Di-bond, ABS, polycarbonate, technical plastics |
|
Woodworking |
MDF, plywood, decorative panels |
|
Metalworking |
Aluminum sheet cutting, engraving, light-duty milling |
Table Size:
|
Model |
Working Area (mm) |
Working Area (inches) |
|---|---|---|
|
Eco 1525 |
1500 × 2500 |
59.1 × 98.4 |
Technical Specifications:
|
Specification |
Value |
|---|---|
|
Max Feed Rate |
100 mm/s (≈ 236 ipm) |
|
Resolution |
0.00687 mm |
|
Z Axis Travel |
130 mm |
|
Clearance Under Gantry |
110 mm |
|
Spindle Power |
2 kW |
|
Spindle Speed |
1,000–24,000 RPM |
|
Vacuum Zones |
Up to 4 |
|
Vacuum Table Type |
Phenolic resin or aluminum alloy |
|
Vacuum Pump |
Becker 2.4 kW (67 m³/h, 100 mbar) |
|
Tool Holders |
ER20 collets (manual) |
|
Control System |
PILOT CNC controller |
|
Control PC |
Optional DELL Core i3 |
|
Power Supply |
3×400 VAC / 50 Hz / 10 A |
|
Machine Weight |
400–550 kg (depending on table type) |
