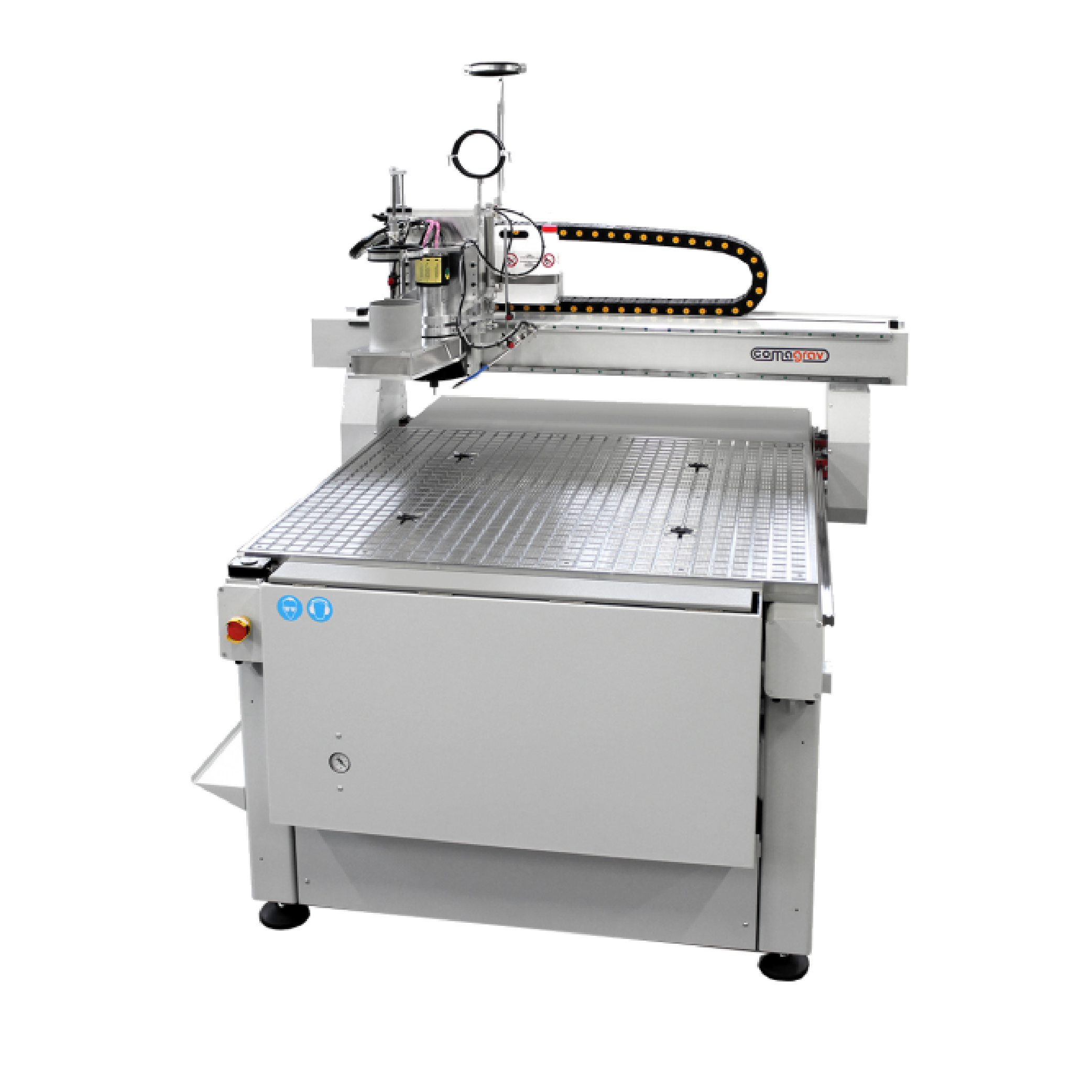

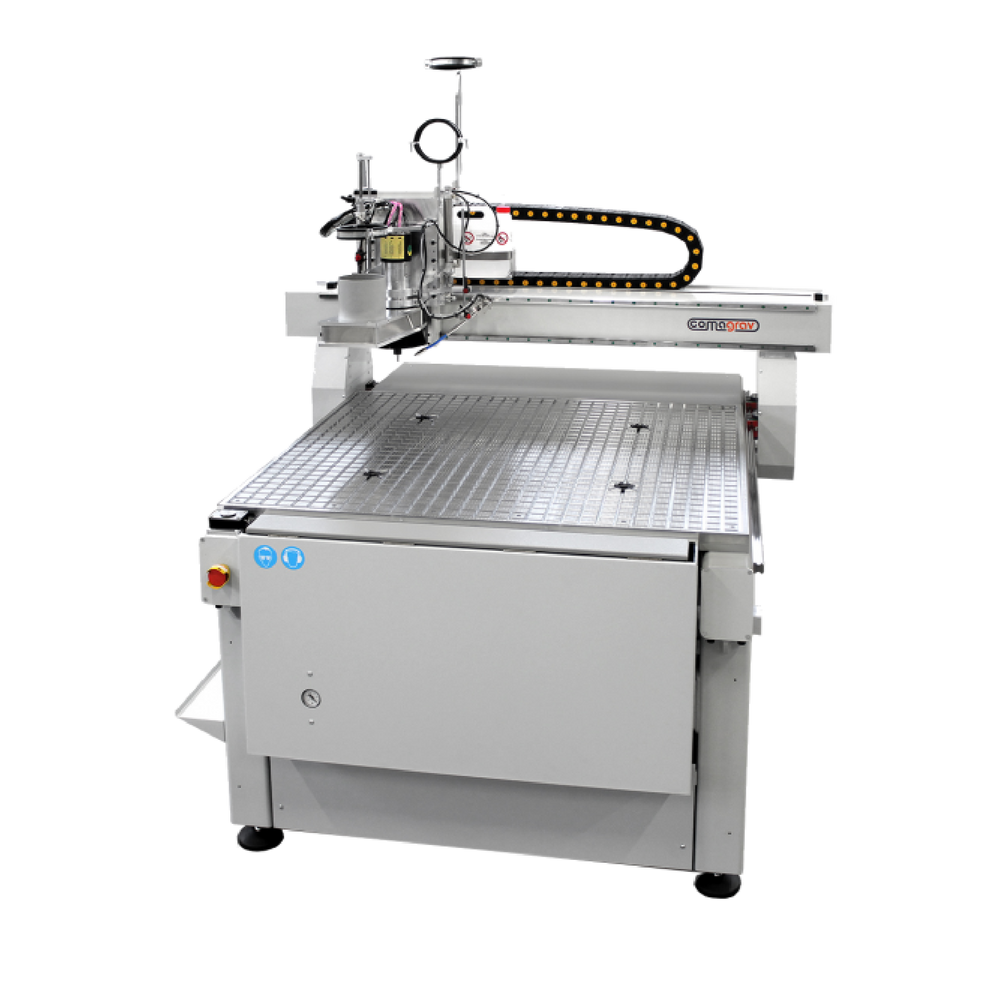

Comagrav Mistral

The COMAGRAV Mistral is a compact, multifunctional CNC router designed for engraving, milling, and light-duty cutting across PMMA, metals, wood, and packaging materials. With a working area of 1100 × 1005 mm, it’s ideal for smaller workshops and signage producers seeking industrial-grade performance in a space-saving format. Available in servo or stepper motor configurations, Mistral balances affordability with precision and modular expandability.

Feature Highlights:

• Drive System: Ballscrews in XYZ axes with linear guides; available with Mitsubishi AC servo motors or microstep motors
• Spindle Options: Up to 3.6 kW, with speeds reaching 50,000 RPM; manual or automatic tool change available
• Tool Automation: Optional ATC system with covered tray for up to 6 tools; supports ISO and HSK toolholders
• Worktable Options: Phenolic resin vacuum table or aluminum T-slot table with up to 4 vacuum zones
• Control System: PILOT 3D or PILOT TDP controller with Windows 10 IoT PC
• Vision System: Optional camera for registration mark detection and QR code support
• Cooling & Dust Extraction: Optional spray cooling systems and cyclone dust collector with integrated cooling
• Scanning & Probing: Optional 3D laser scanner, rotary adapter, and mechanical touch probe

Applications:

Table Size

Technical Specifications
