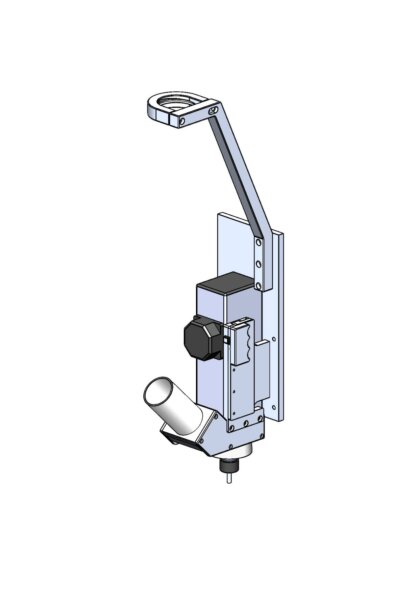

DIGI Professional Spindle – Compact ER20 CNC Routing for COMAGRAV DIGI Systems
Product SKU:
This Italian-made 3-phase spindle is designed for precise routing of common materials in compact CNC workflows. Equipped with ceramic bearings, passive shaft cooling, and ER20 clamping, it supports high-speed milling up to 24,000 RPM with reliability and minimal maintenance. Ideal for PMMA, aluminium composites, and signage substrates.
Specifications
- Power: 730 W
- Speed: Up to 24,000 RPM, high-frequency operation
- Tool Interface: ER20 collet system (4 mm collet included)
- Cooling: Passive fan cooling
- Accessories: Routing tool, wrenches, nuts
- Origin: Made in Italy
- Suction Prep: Steel ramp, hose adapter for external extractor
- Compatibility: COMAGRAV DIGI series
Vacuum Extraction Unit
- Power: 3 kW with 3 independent motors
- Airflow: 432 m³/h
- Hose: 40 mm diameter, 1x230V
- Purpose: Industrial dust extraction for small spindle environments
Compatible Materials
Acrylic glass – PMMA, Alucobond, Aluminium, Brass, Foam, Foamed PVC – Forex/Foamex/Simocel/Komacel, PET – Polyethyleneterephthalate, Phenolic resin, PIR, Plastic, Polycarbonate, Polyetherketone fibers – PEEK, Polyethylene – PE, Polyoxymethylene – POM, Polypropylene – PP, Polystyrene, PVC, Silon – Polyamide fiber, Stainless steel, Steel, Teflon – Polytetrafluoroethylene – PTFE, Wood and MDF
Applications
Milling, profiling, and detailing of signage-grade plastics, composites, and lightweight metals.
