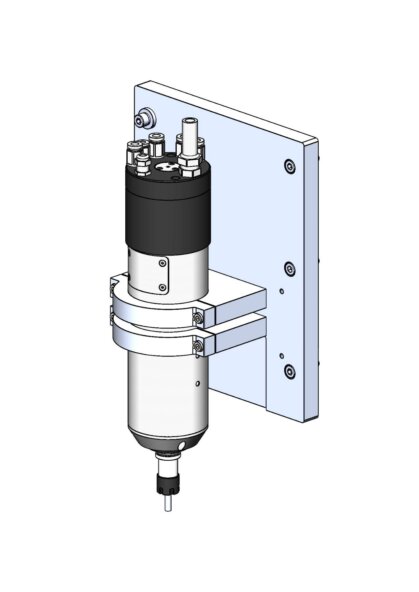

Professional Routing Spindle – 3.6 kW, 40,000 RPM with Automatic Tool Change

This high-frequency COMAGRAV spindle delivers precision performance for CNC routing of plastics, metals, and engineered substrates. With liquid cooling, HSK-E25 pneumatic clamping, and a covered 8-tool magazine, it’s optimized for high-speed production on COMAGRAV DIGI CORSA systems.

Specifications

• Power: 3.0 kW (S1) / 3.6 kW (S6)
• Speed: Up to 40,000 RPM, stepless control via frequency converter
• Clamping: HSK-E25 holders, includes ER16 collets (UP accuracy)
• Tool Magazine: 8-tool rack with automatic cover opening
• Cooling: Liquid-cooled system with active flow control
• Spray Cooling: Integrated into suction for aluminium and its alloys
• Extraction: Includes suction ramp, hose, 3-motor dust collector, and cyclone with automatic parking
• Air Requirement: Requires dry, clean compressed air

Compatible Materials

Acrylic glass – PMMA, Alucobond, Aluminium, Brass, Foam, Foamed PVC – Forex/Foamex/Simocel/Komacel, PET – Polyethyleneterephthalate, Phenolic resin, PIR, Plastic, Polycarbonate, Polyetherketone fibers – PEEK, Polyethylene – PE, Polyoxymethylene – POM, Polypropylene – PP, Polystyrene, PVC, Silon – Polyamide fiber, Stainless steel, Steel, Teflon – PTFE, Wood and MDF

Applications

High-speed CNC routing, profiling, slotting, and contouring of rigid plastics, composite panels, non-ferrous metals, and signage-grade boards.
