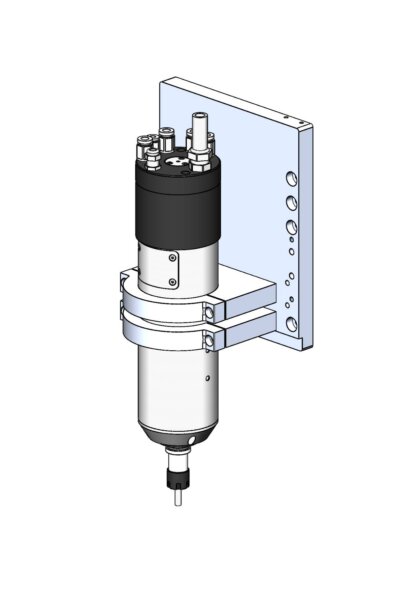

The MISTRAL SERVO ATC spindle offers reliable high-frequency CNC routing for a wide range of substrates. With ceramic bearings and stepless speed control up to 24,000 RPM, it supports precision machining with pneumatic ISO20 tool clamping. Compact yet efficient, it’s ideal for standard routing applications across industrial and signage workflows.
Specifications
- Power: 1.1 kW (max), 3.8 kW (S1) / 4.5 kW (S6) (Note: conflicting values—please verify for consistency)
- Speed: 24,000 RPM, controlled via frequency converter
- Tool Interface: ISO20 holders, equipped with ER16 collets (4 holders included)
- Magazine: Covered linear tray for 6 tools, automatic opening
- Cooling: Electric fan system
- Air Requirement: Requires dry, clean compressed air
Compatible Materials
Acrylic glass – PMMA, Alucobond, Aluminium, Brass, Foam, Foamed PVC – Forex/Foamex/Simocel/Komacel, PET – Polyethyleneterephthalate, Phenolic resin, PIR, Plastic, Polycarbonate, Polyetherketone fibers – PEEK, Polyethylene – PE, Polyoxymethylene – POM, Polypropylene – PP, Polystyrene, PVC, Silon – Polyamide fiber, Stainless steel, Steel, Teflon – Polytetrafluoroethylene – PTFE, Wood and MDF
Applications
Standard CNC routing, contour cutting, and panel trimming for plastics, composites, engineered boards, and metals.
